Description

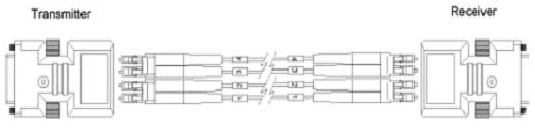

Industries one of the smallest and compact DVI over Fiber Extender set. It takes 4 fiber cores to send DVI signal over 500 m using Multimode Fiber and up to 1km using single mode. It’s a real fiber transmitter and receiver in a size of regular DVI adapters.

Features

Full Digital, uncompressed HD optical transmission;
Support 1-channel DVI HD video transmission;
DVI 1.0 supported;
Identify and configure different display mode automatically;
Support single-line mode; max rate up to 1920×1200@60hz, bandwidth up to 5.4Gbps;
Max color depth up to 12bit;
Max pixel clock up to 225MHz;
Built-in automatic equalization and retiming features, with a clear and steady picture;
Support EDID display mode access and recall function, correct display mode loading anytime;
Gbps optical transmission technology, large capacity, easy to upgrade;
Support single-mode/multimode transmission;
Without software configuration, support Hot Plug In, plug and play;
Applicable to extremely high/low temperature industrial environment;
Full SMT production;

Specifications

DVI HD video parameters
Interface Format	DVI 1.0
Physical Interface	DVI-I Hole socket
Interface Quantity	Transmitter: 1-input; Receiver:1-output
Video Definition(single line)	SVGA: 800×600@60Hz; WXGA: 1280×800@60Hz UXGA: 1600×1200@60Hz; HDTV: 1080P 1920×1080@60Hz
Video Color Depth	8/10/12 bit
Video pixel Clock	25-165MHZ
Video Bandwidth	5.4Gbps
Video Difference Level	800-1200mVp-p,typical
Video Differential Impedance	100Ω
DDC Standard	DDC2/EDID 1.0/2.0
DDC Processing Mode	Read and display by the transmitter
Optical parameters
Transmitter	Interface Type: LC*4
Transmitter	Signal Format: 1310nm,single mode/multimode fiber, optical transmitting power: -3 – -8dbm
Receiver	Interface Type: LC*4
Receiver	Signal Format:1310nm,single mode/multimode fiber, optical receiving sensitivity: -30dbm
Size	L×W×H: 63mm×42mm×15mm
Power Supply	DC 5V, 2A
Operation Temperature	-10~60℃
Operation Humidity	0~95%
Storage Temperature	-20~85℃

Oredring Information

AN-DVI-MICRO

Micro-Type DVI over 4 fibers adapter/extender set, up to 1 km over single mode fiber, 500 m over multimode fiber.
