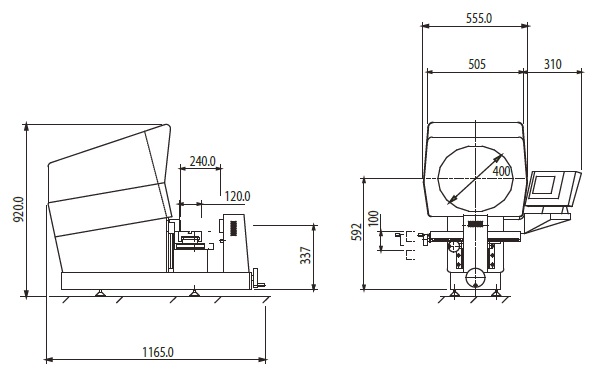

The most economical of our benchtop horizontal projectors, this machine offers a 400mm / 16” screen, 250 x 100mm / 10 x 4” workstage, bayonet fitting lenses and Q-axis angular readout; all to improve capacity and performance. These latest horizontal projectors are fitted with either Quadra-Chek® digital readout systems or MetLogix™ M1 or M2 software as standard, making them simple to use, but having the power to satisfy the most complex measuring requirements.
The HE400 comes with a bayonet socket that can accommodate one of five interchangeable projection lenses. Purchase of the OV2 video adapter can also convert system operation from profile projector to video metrology system, subject to a suitable video enabled digital readout.
• Fully usable 400mm / 16” diameter screen with precision cross lines, overlay clips and integral hood
• Large measuring travel: 254mm / 10” X-axis, 100mm / 4” Y-Axis
• Fully retractable duplex fibre optic surface illumination
• Fine adjustment on all axes, plus zero backlash, fast traverse mechanism on the X-axis
• Lamphouse mounted helix adjustment for accurate threadform inspection
• High precision workstage with 480 x 120mm / 18.9 x 4.7” top plate, with machined slot for easy fixturing
• Stage weight capacity: 25kg /55lbs (evenly distributed)
• Screen driven rotary Q axis
• 0.001mm resolution linear Heidenhain scales
• Automatic edge detection option
• All Starrett Optical Profile Projectors have lens magnifications set and calibrated to the following accuracies: Profile: ±0.05%. Surface Illumination: ±0.10%.
