Eazy 2.0Ton Walkie Electric Pallet Truck CBD20X

Features

• Integrated structure of circuit board and open framework structure, simple design which easier for installation and repairing as it will save the time
• Designed with uncontactable photoelectric switch which will more long life expectancy and stable, it will overcome the breakdown of micro switch when handle looses
• Optimization of installation position and reselection of travel switch, it yields the stability and reliability of performance
• Control power design, appliance of electricity from controller, interior controller with isolated circuit and it will avoid interference
• When battery voltage lower than 20%, power pack will unable to activate, it can protect it's motor and battery effectively, and also improve the life span
• Equipment case apply with 52 metal sheet material which can reduce the body size, easy for installation, even more firm and may enhance the damage issue of the case

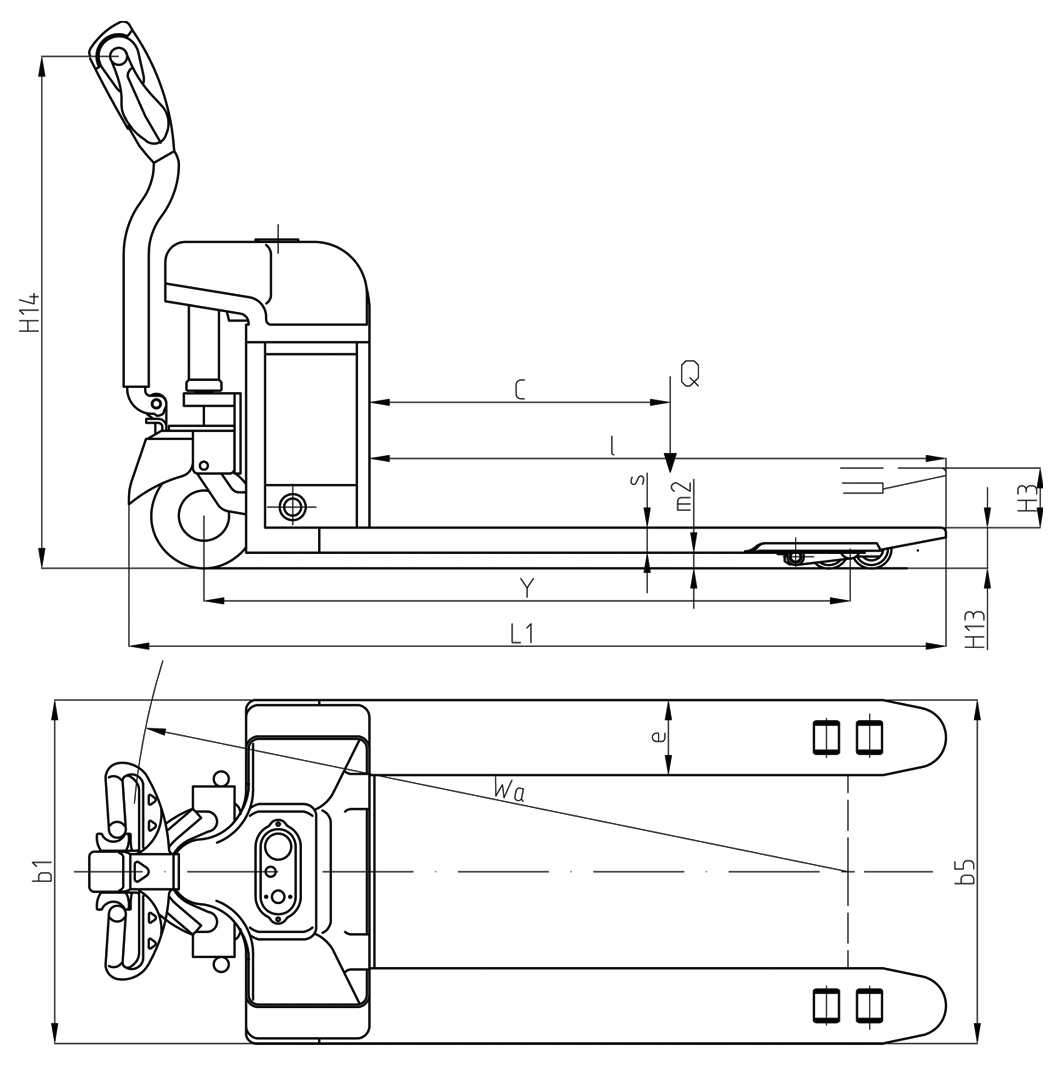

Specifications

Model	CBD20X
Capacity Q (kg)	2000
Load Center C (mm)	600
Type of Lifting	Electric
Operating Type	Walkie
Material of Wheel	PU
Wheel Base y (mm)	1230 / 1300
Quantity of Wheel Drive / Bearing / Balance	1 x + 2/4
Bearing Wheel Size (mm)	Փ 80 x 70
Drive Wheel Size (mm)	Փ 210 x 75
Balance Wheel Size (mm)	Փ 75 x 46
Minimum Fork Height H13 (mm)	85
Maximum Fork Height (mm)	200
Maximum Lifting Height H3 (mm)	115
Outer Fork Width mm	560 / 685
Inner Fork Width mm	240 / 365
Fork Length L (mm)	1150 / 1220
Single Fork Size e/s (mm)	160 / 50
Overall Length L1 (mm)	1650 / 1720
Overall Width B (mm)	685
Overall Height mm	1220
Handle Vertical Height ( Min / Max ) H14 (mm)	1220
Minimum Turning Radius Wa (mm)	1385 / 1455
Travel Speed (Laden / Unladen) km/h	4 / 5
Lifting Speed (Laden / Unladen) mm/s	25 / 30
Lowering Speed (Laden / Unladen) mm/s	30 / 20
Adjustment of Speed (Fast / Slow)	Yes
Gradebility %	≤ 4
Drive Mode	DC
Drive Motor Kw	24V0.75
Lift Motor Kw	24V0.8
Battery Capacity V/Ah	2 x 12/80
Charger	24V12A
Battery Weight kg	24
Net Weight kg	230
