HRB SERIES
Research indicates that many customers wait reliability and dry compressed air at an affordable price. No fancy bells and whistles-just dry air, pure and simple. The HRB series non-cycling dyes were designed to meet these demands.
Feature
Static condenser with no coding tan
• Worldwide-patented oracle
• No maintain required
• Excellent quiet operation
• Lowest operating cost
Perfect application for indoor installation such as hospital and laboratory
Robust design & compact size

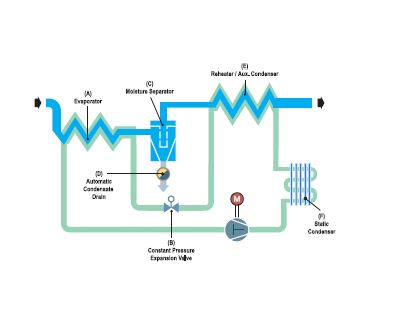

Unique refrigerant control system
• Air-to-refrigerant reheating system
Energy swing through waste heat recovery
• No condensate on outlet pipe
Excellent dew point performance under all conditions
| Model | Flow Capacity (Nm3/min) |
Unit (kW) |
Power Supply |
Inlet / Outlet Connection (PT) |
Weight (kg) |
Dimension(mm) | Refrigerants | ||
| H | W | D | |||||||
| HRB 0.5 | 0.50 | 0.24 | 220 ~ 240V 1PH 50Hz |
3/8” | 20 | 382 | 320 | 320 | R-134a |
| HRB 1.0 | 1.00 | 0.34 | 3/4” | 32 | 568 | 368 | 394 | ||
| HRB 1.3 | 1.33 | 0.42 | 3/4” | 32 | 568 | 368 | 394 | ||
| HRB 1.6 | 1.67 | 0.58 | 3/4” | 44 | 568 | 500 | 500 | ||
