Z1505WS2 / Z1506WS2

- Although the type is large, by adopting a dedicated compressor for each model, the compressing efficiency is drastically improved.
- The efficiency is enhanced by 20% with full load, by our comparison.
- The AUCS unloader is installed as a standard component in order to drastically reduce the use of electricity.
- Low noise and low vibration realized by the Z-screw balancing design.
- Optimum for the multiple control in large-scale factories.

Model		Z1505WS2	Z1506WS2
Items	Unit
Power frequency	Hz	50	60
Power supply voltage	V	380 / 400 / 415	380 / 400 / 440
Free air delivery	m³ /min	27.0	26.0
Delivered air pressure	MPa	0.7
Pressure control method		Saving energy A.U.C.S & auto. Start & stop selection
Intake air pressure & temperature		Atmospheric pressure ( 0 to 40°C)
Discharge air temp. approx		Less than ambeint temp. +15°C
Main motor power	kW	150
Motor type		3-phase squirrel cage 2P totally enclosed external fan (IE3 Motor)
Starter		Automatic star-delta
Drive system		Direct coupled motor
Cooling system	kW	Air cooled
Fan motor power		0.08	0.12
Oil filling quantity		100
Cooling water amount		200
Discharge pipe diameter	kg	3 flange
Total mass (dry state) [without dryer]		3050
Noise level [OP1.5m]	dB·A	74

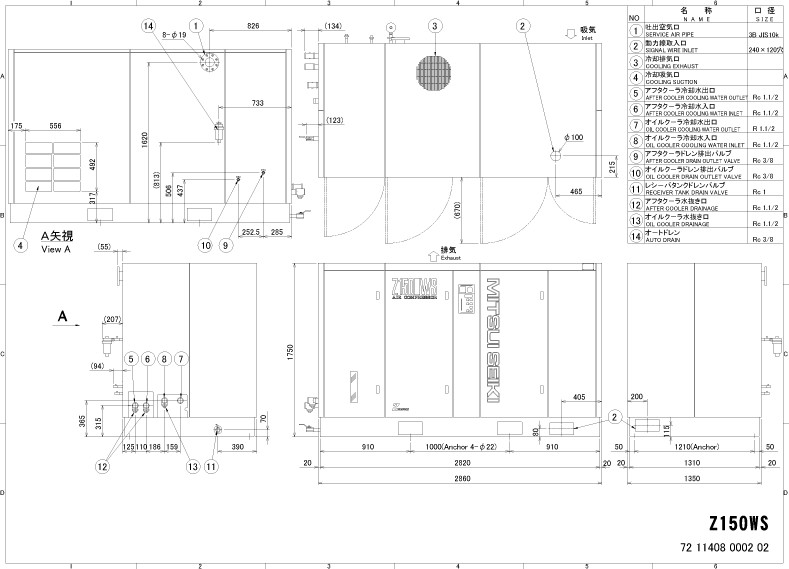

Dimension,L x W x H (without dryer)	mm	1350 x 2860 x 1750
