Matsuzawa Rockwell Hardness Tester (MoguRa Series): Pilihan Terbaik di Johor Bahru (JB), Malaysia, Selangor, Kuala Lumpur (KL), Penang, Singapore MSP Metrology (M) Sdn Bhd

Deskripsi

Economy and High Quality Rockwell Hardness Tester – High Performance. High Precision. Low Cost. Available in Rockwell and Superficial type. Presented by MSP Metrology (M) Sdn Bhd from Matsuzawa Japan

Features

1. MoguRa-a

High visibility with LED backlight

2. MoguRa-a | MoguRa-d

High visibility with Large and long sample testable

※ 1 As compared with the conventional our products
※ 2 Relief hole is required in the base to use at maximum height LED backlight

3. MoguRa-a | MoguRa-d

Easy switching of test force with knob.

4. MoguRa-a | MoguRa-d

Good quality product with tasteful design.

5. MoguRa-d

Intuitive operation with matrix panel

Real-time countdown display of holding time

6. MoguRa-d

All Rockwell scale testable.

※ 3 MoguRa-d3 only

7. MoguRa-d

Operability is greatly improved by automatic braking (optional)

8. MoguRa-d

Plastic hardness test.

Specifications

Type			Analog Type		Digital Type
Model Name			MoguRa-a1	MoguRa-a2	MoguRa-d1	MoguRa-d3
Test Type			Regular Rockwell	Superficial Rockwell	Regular Rockwell	Regular/Superficial
Display			Dial Gauge		LCD
Preliminary Test Force			10kgf	3kgf	10kgf	3kgf, 10kgf
Total Test Force			60, 100, 150 kgf	15, 30, 45 kgf	60, 100, 150 kgf	15, 30, 45 kgf 60, 100, 150 kgf

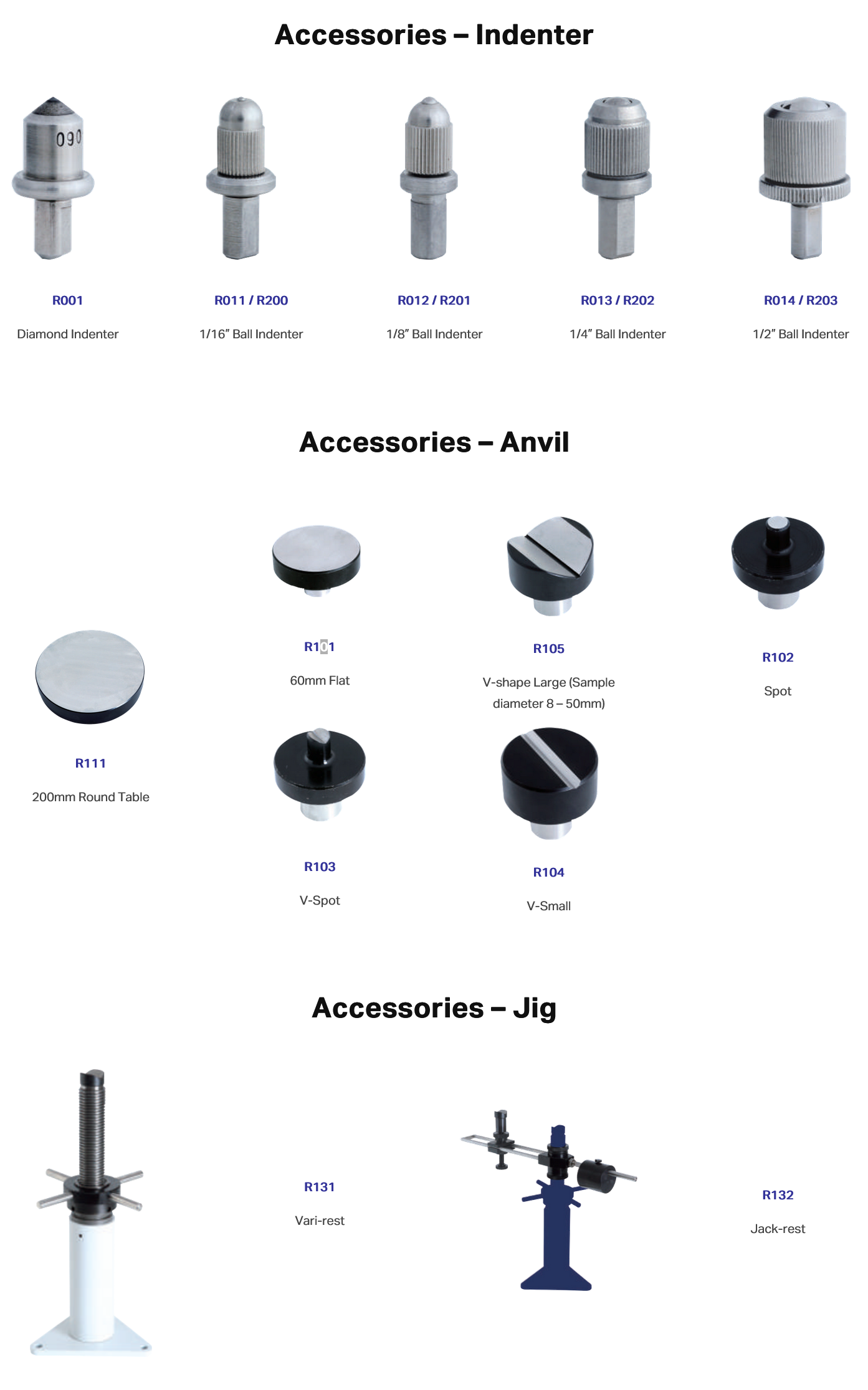

Scale	Included Indenter	DIA	A D C	15N 30N 45N	A D C	A D C 15N 30N 45N
		1/16″ Ball	F B G	15T 30T 45T	F B G	F B G 15T 30T 45T
	Optional Indenter	1/8″ Ball	H E K	15W 30W 45W	H E K	H E K 15W 30W 45W
		1/4″ Ball	L M P	15X 30X 45X	L M P	L M P 15X 30X 45X
		1/2″ Ball	R S V	15Y 30Y 45Y	R S V	R S V 15Y 30Y 45Y
Force Control	Preliminary Test Force		Manual		Manual
	Total Test Force		Manual (Electric load/unload)		Manual/Auto Select
Dwelling Time	Preliminary Test Force		–		1 ~ 99s
	Total Test Force		1 ~ 99s		1 ~ 99s
	For Recovery in F0		–		1 ~ 99s
Standard			JIS Z 2245, JIS B7726, ASTM E18-19, ISO 6508-1, ISO 6508-2
Specimen Size			Max. height 246 mm, Max. depth 158 mm
Dimensions and Weight			W190 x D460 x H776, Weight 65kg
Power Supply			AC100-240 50/60,Hz
Test Cycle			Automatic (Pre Load – Test Load – Release Load)
Test Load Dwell Time			0 to 999 sec
Auto Brake Option			–		Yes
Plastic Hardness Test			–		Yes (JIS K 7202-2)
Data Output			–		RS-232C, Data Memory Max. 99
Statistics			–		Max., Min., Average, Standard Deviation
OK/NG			–		Upper/Lower Limit Select

Lihat detail lebih lanjut tentang MSP Metrology (M) Sdn Bhd
