( PRE-ORDER 1 WKS ) COME-UP AC Electric Wire Rope Winch ( 400kg )

( PRE-ORDER 1 WKS ) COME-UP AC Electric Wire Rope Winch ( 400kg )

Kategori: Electric Winches Tersedia
Bisa dibeli di situs resmi
RM 11700.00 Untuk informasi lebih lanjut, kunjungi situs resmi kami di diytools.my

Deskripsi

COME-UP AC Electric Wire Rope Winch ( 400kg )

Electromagnetic spring-applied failsafe brake
Heavy duty high efficiency ball bearing on all running surfaces
Planetary gears for maximum mechanical efficiency
Enclosed drum flange to prevent rope becoming trapped between drum and support castings
Cast steel foot mountings
Fabricated steel drum
Supplied on steel base plate ready to mount
Quiet running




Standard Accessories
- Wire rope 9mm x 60m
- Weight hook CHW-0005
- Remote control , PB-331
  Switch cord 3.5mm x 5C x 3m
  Pendant switch PB-331 w/an emergency stop button

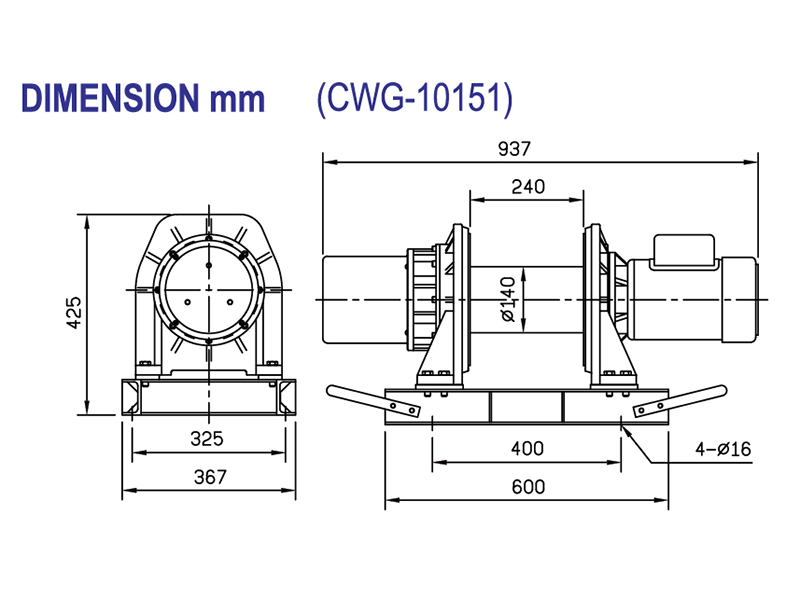

MODEL CAPACITY Motor ( IP44 ) Lifting Speed Gear Ratio Wire Rope Braking Menthods Drum Length Drum Dia. Drum Flange Dia. Mounting Bolts Pattern Packing Diamension G.W
CWG-10151 400KG 1.5kw x 230v 12-18 m /min 57:01:00 9mm x 60m Electromagnetic 240 mm 140 mm 280 mm 400 X 325MM 1090 x 470 x 590 mm 150kg

Lifting Capacity, Lifting Speed and Rope capacity
Layer of Wire rope Lifting Capacity, kg Lifting Speed, m/min Total Rope on the Drum, m
1st 593 12 12
2nd 529 13.3 26
3rd 478 14.8 40
4th 436 16.2 57
5th 400 18 60


Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel
- The rated lifting capacity shown is based on the top layer on the drum
- The rope winding on the drum shall remain 5 wraps from the drum.

Warranty
- Each new winch is warranty against defects in workmanship and material  defects for a period of 6 months from date of purchase. WIRE ROPE ARE NOT INCLUDED UNDER WARRANTY
