Fire Door - 2 Hour Rating

Descriptions

GAYADOR 2-hour fire resistant doorset system is constructed from solid core design, fabricated from high performance fire resistant board and edged with metal capping. Overall thickness is +48mm. The fire rated door frame is ± 65mm x 140mm x 1.5mm EG (T).

GAYADOR is tested and approved to the current Malaysian Standard of MS 1073, Part 3: 1996.

GAYADOR offers stable, integrity and insulation features with total commitment for the contemporary construction sector.


Product Specifications

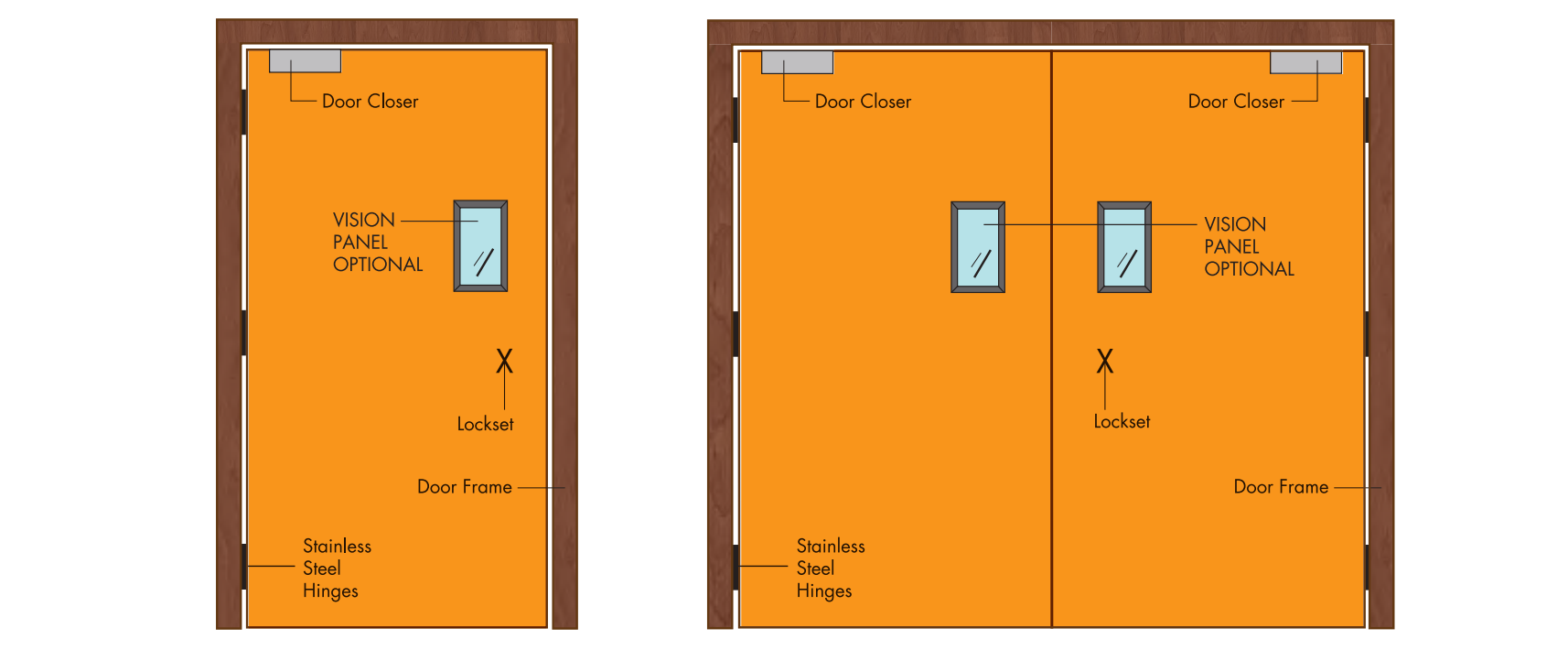

Size Available

• SINGLE LEAF:  maximum size of 1200mm x 2700mm

• DOUBLE LEAF:  maximum size of 2400mm x 2700mm

* Customization available
* Optional Vision Glass Panels

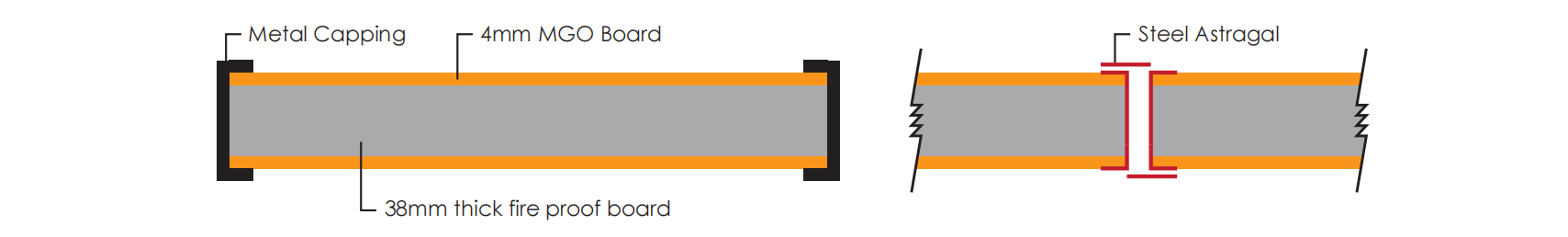

Cross Section of Door Leaf

• Thickness of Door Leaf: ±48mm

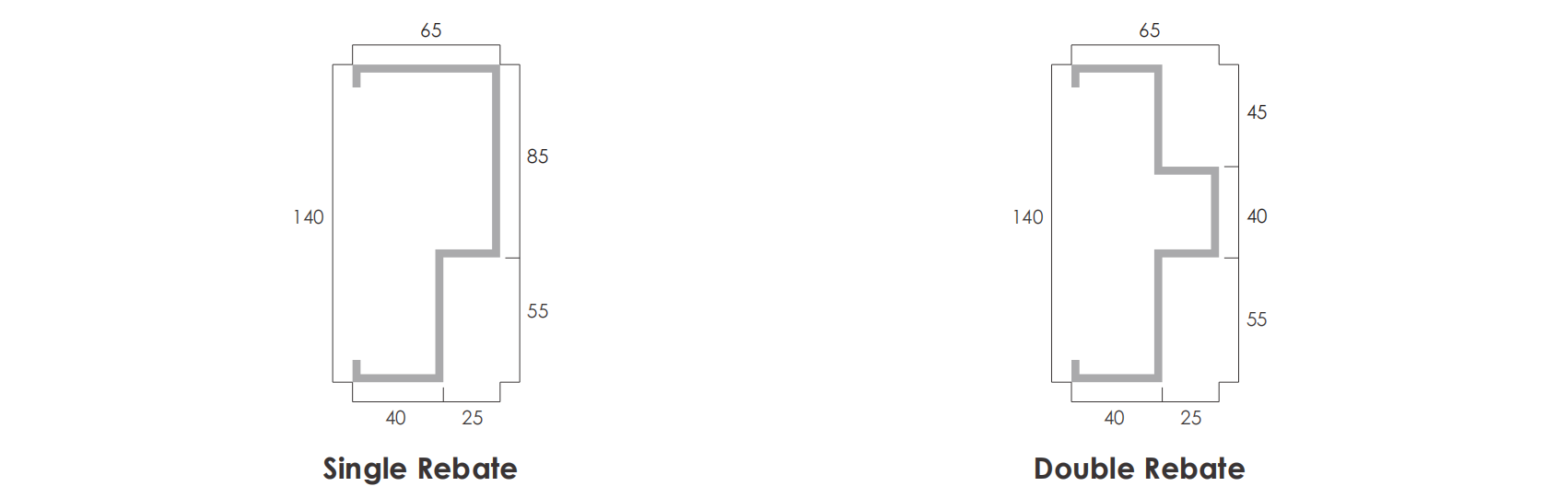

Details of Door Frame

                                                                                           Metal Door Frame

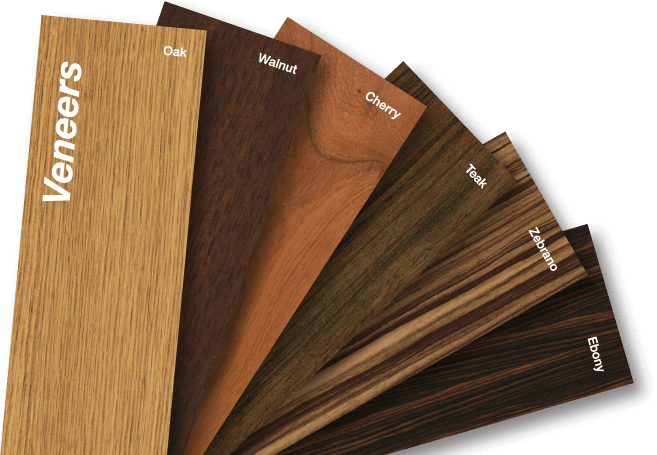

Door Surface Finishes

• Engineered wood veneer





Type of Lockset

• Mortise lock

• Digital lock


Normally Used

• Flats

• Hotels

• Factories

• Hospitals

• Apartments

• Shop Offices

• Office Blocks

• Condominiums

• Shopping Complex

Approved by
