Item |
Data |
|
|
|
APPROVAL |
/ |
|
|
|
Test standard |
IEC61984/ UL1059 |
|
|
|

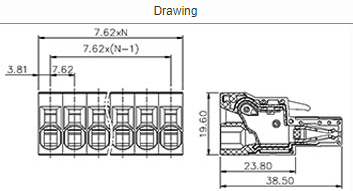

Pitch [mm] |
7.62 |
|
|
|
Poles |
01-XXP |
|
|
|
EN61984 Test data |
/ |
|
|
|
Rated voltage [V] |
1000 |
|
|
|
Rated current [A] |
41 |
|
|
|
Rated connection capacity)(solid/stranded) [mm2] |
0.2~10 |
|
|
|
Surge voltage category/pollution degree/material group |
III/2/I |
|
|
|
Rated impulse voltage [KV] |
8 |
|
|
|
Rated torque [N·m] |
/ |
|
|
|
UL1059Test data |
UL 1059 |
|
|
|
Use group |
B |
C |
D |
|
Rated voltage [V] |
600 |
/ |
/ |
|
Rated current [A] |
35 |
/ |
/ |
|
Rated connection capacity) (solid/stranded) [AWG] |
24-Aug |
|
|
|
Rated torque [Lb. in] |
/ |
|
|
|
General data |
/ |
|
|
|
Screw |
/ |
|
|
|
Inflammability class UL94 |
V-0 |
|
|
|
Ambient temperature [℃] |
-40~+105 |
|
|
|
Relative humidity |
5%-95% |
|
|
|
Inspection standard |
MIL-STD-105E II |
|
|
|
AQL |
0.65 |
|
|
|
Warranty |
12 months |
|
|
|
Material and plating |
/ |
|
|
|
Housing |
PA66 |
|
|
|
Screws |
Steel，Zn plated |
|
|
|
Contact |
Copper alloy，Sn plated |
|
|
|
Spring |
Stainless Steel |
|
|
|
Wire connecting |
|
|
|
|
Recommended stripping length14-15mm; |
|
|
|
|
1.）For solid wire, stripping wire to the appointed length, then tightening with rated torque. |
|
|
2.）For stranded wire: stripping wire to the appointed length, mating with corresponding type of ferrule, then tightening with rated torque. |
|
Tightening process should be steady, can’t use explosive force. |
|
|
