Model NO.:B2-2N

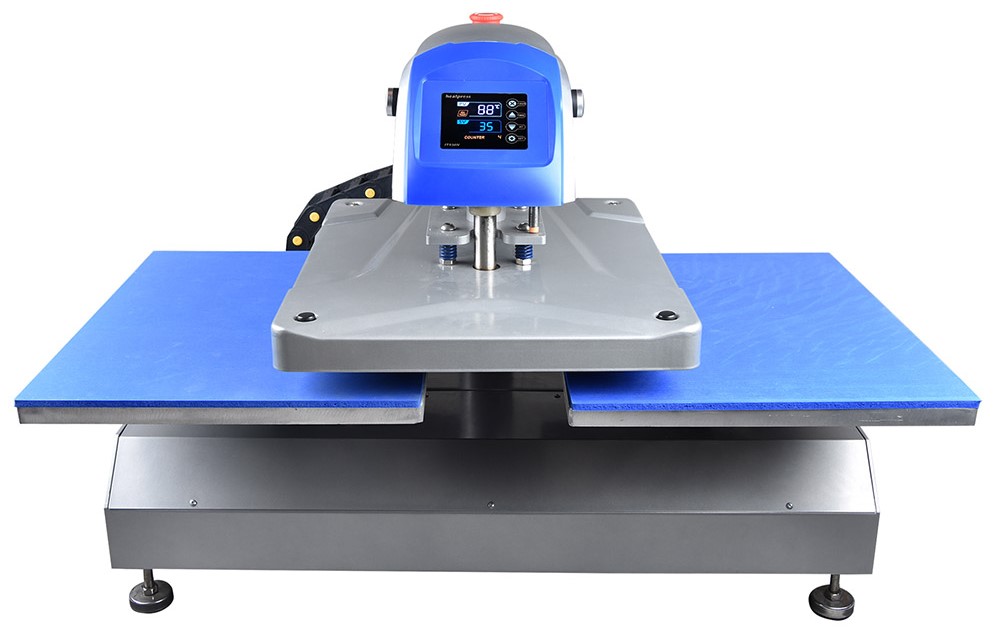

40x50cm Prime Dual Plates Fully Automatic Electric Heat Transfer Printing Machine
Description: This electronic heat press is the top-of-the-line machine when it comes to mass production at high quality levels. This unit can handle anything – large or small garments, multiple ceramic tiles, and many other substrates. It does not require compressed air, which makes it more convenient. It features high efficiency & excellent pressure, can operate in full-auto, or semi-auto modes.
Style:Dual Plates Electric Heat Transfer
Features:Swing-away/Auto-open/Interchangeable/Threadable
Platen Size:40 x 50cm
Dimension:98.3*70*65cm
Certificate:CE （EMC, LVD, RoHS）
Warranty:12 Months
This is a EasyTrans Deluxe Level heat press is featured with electronic motor, which can generate Max. 360kg down force and accept Max. 4.5cm thick items. This heat press is 1st choice for professional users those who are applying premium transfers like no cutting laser transfer paper.
Features:
This EasyTrans Deluxe level heat press has twin lower plates and could be semi-auto or fully automatic in a single switch. This electric heat pres is featured with a HMI/ PLC guage, so user could control its shuttle moving speed, also able to have a trouble shooting when it’s necessary.
Additional features:

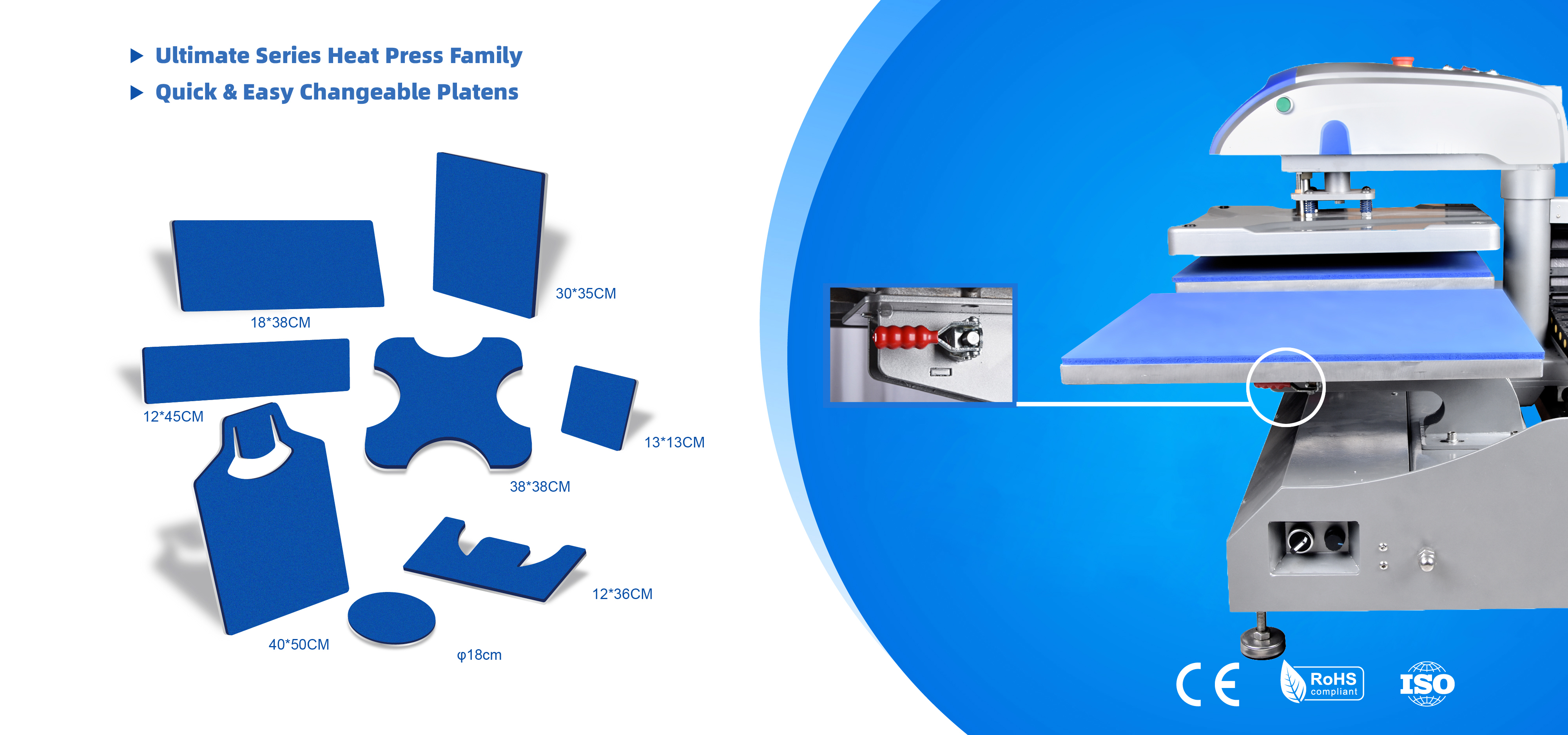

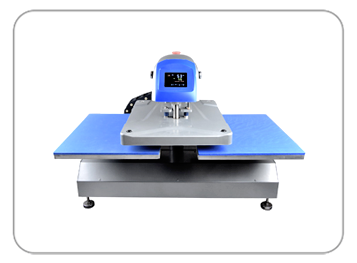

Double Station
The electric dual station heat press transitions from platen to platen, allowing you to thread and remove garments quickly and easily.
Triple Thermal Production
Two thermal protection decices connect separately with live wire and Neutral Wire, the third protection is heating plate with temperature protector which prevent abnormal temperature rise.

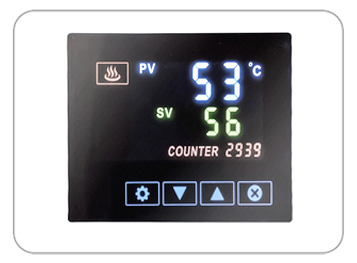

Advanced LCD Controller
This heat press is also equipped with advanced LCD controller AT700 series, super precise in Temp control and read-out. User could set the applying pressure by controller setting (P-4 mode). The controller is also featured with Max. 120mins stand-by function (P-5 mode) make it energy saving and safety.

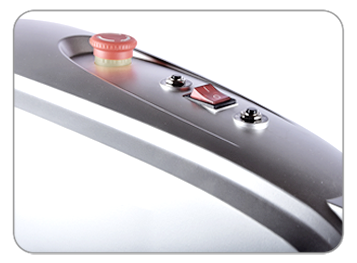

User Safe Two-hand Operation
Safer operating design

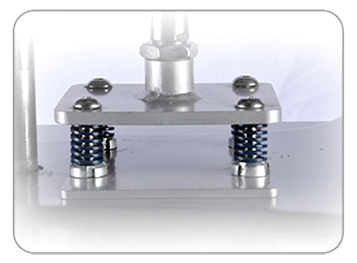

Four Support Springs
Ensure balanced pressure ditribution

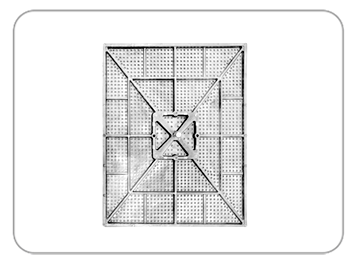

16X20 Heat Platen
There is enough size to print all kinds of products.

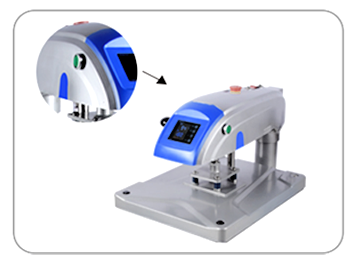

Pop-out Controller
A pop-up controller makes instrument replacement easier.

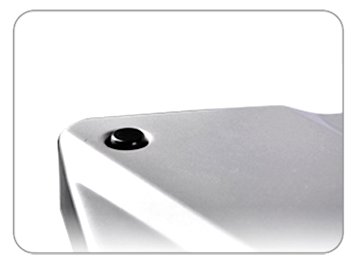

Protective Cap
Protective Cap is safer and anti-scalding.
Specifications:
Heat Press Style: Electric
Motion Available: Swing-away/ Auto-open
Heat Platen Size: 40x50cm
Voltage: 110V or 220V
Power: 1800-2200W
Controller: Screen-touch LCD Panel
Max. Temperature: 450°F/232°C
Timer Range: 999 Sec.
Machine Dimensions: 94.7 x 72.5 x 71.7cm
Machine Weight: 125kg
Shipping Dimensions: 110 x 83 x 87cm
Shipping Weight: 140kg
CE/RoHS compliant
1 Year entire warranty
