TC80-D3V DIN rail mount torque converter with 3ch analog output: 马来西亚的首选 IMS Mechatronics Sdn Bhd

详情

・TC80-D3V is a compact DIN-rail mount torque converter

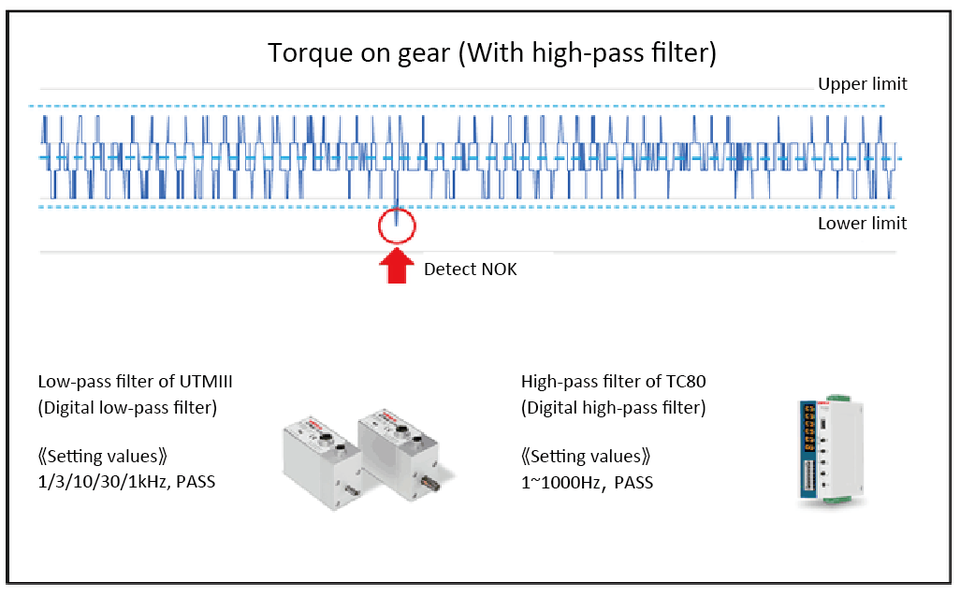

・High-speed sampling of 16kS / s visualizes steep torque fluctuations.
・It also supports the UTM series rotary encoder option!
・3ch analog output torque, rotation speed, and angle.
・Up to 100 saved hold values can be output as data.

Light weight & compact body for 35mm DIN rail mount

Application software for USB interface

With communication through USB interface,
graph display, reading hold data,
setting parameters, and calibration can be done.

Analog section
Signal input range	-10 to +10V (UTMⅢ/UTF Option) Input impedance: 1MΩ or more -5 to +5V (UTMⅡ/UTMV) Input impedance: 1MΩ or more
Accuracy	Non-linearity： within 0.02%FS±1digit Zero drift： within 0.2mV/℃ RTI Gain drift：within 0.01%/℃
Digital low-pass filter	PASS,1 to 1kHz
A/D converter	Rate ：16000times/sec Resolution：24bit (binary)　　Approx. 1/30000 against 10V
Analog monitor output (Test point / UTF Option)	Transmitted input voltage
Pulse input for rotation speed (open collector input/UTMⅡ/UTMV/UTMⅢ)
Max. rotation speed	Depend on UTMⅡ/ UTMV/ UTMⅢ
Min. rotation speed	Selectable from 15, 10, 5, 3, 2rpm (when pulse rate is 4 ppr) Selectable from 60, 40, 20, 12, 8rpm (when pulse rate is 1 ppr)
Min. pulse width	50μs
Circuit configuration	No-voltage contact input (minus common) Connectable to open collector (Ic=Approx. 10mA)
Rotation speed input for low speed(Pulse input, open collector)
Maximum input frequency	Approx. 1000rpm
Minimum input frequency	0.1rpm
Minimum detection pulse width	5μs
Circuit configuration	No-voltage contact input (minus common) Open collector connectable (Ic＝Approx. 10mA)
Pulse input for rotation speed (Line driver: RS-422A compliant/ UTF option)
Max. frequency	Depend on UTF
Circuit configuration	Line driver (RS-422A compliant)

Encoder input(Pulse input)	UTMⅡ/UTMⅢ Compatible with rotary encoder option

Display section
Display unit	Character height 8mm Numerical display by 7-segment green LED
Display content	Switchable numeric display (torque, rotation speed, Power/ Angle)
Display frequency	Selectable from 1, 3 , 6, 13, 25 times/sec.

External signal
Output signal (2)	Selectable/ configurable Transistor’s open collector output Vceo=30V、 Ic=50mA
Input signal (1)	Selectable/ configurable Contact (relay, switch, etc.) or non contact (transistor, photo coupler, etc.) Input is ON when shorted to COM terminal

Interface
USB	USB Interface
D3V	D/A converter voltage output(3ch)
485	RS-485 Interface
422	RS-422A Interface (UTF Option)

General performance
Power supply voltage	DC24V ±15%
Power consumption	6W typ.
Operating conditions	Temperature: Operating temperature range: -10℃ to +50℃, Storage temperature range: -20℃ to +85℃ Humidity: 85%RH or less (non-condensing)
Dimensions	34(W)×88(H)×91(D)mm (Projections excluded)
Weight	Approx. 230g
CE marking certification	EMC directives EN61326-1

Attachments
Quick manual	2
Mini driver	1
Various I/O connector	3
Operating tool	1
