| Model | AP-AB1218 |
| Input voltage | DC 24V |
| Input Current | ＜ 600mA |
| Power | 10W |
| Working voltage | DC±5KV |
| Ion emission | Pulse AC |
| Emitter electrode | Tungsten |
| Discharge structure | Resistance coupling |
| Output frequency | 1,3,5,10,20,30,50Hz；(EX-Work setting: 30Hz) |
| Duty factor | 10%—90% |
| Discharge range | L*W*H：(300-3000mm)*300*1000mm |
| Installation distance | 100→1000mm |
| Ion balance | ≤|±30V|（AVG） |
| Discharge speed | ≤2S |

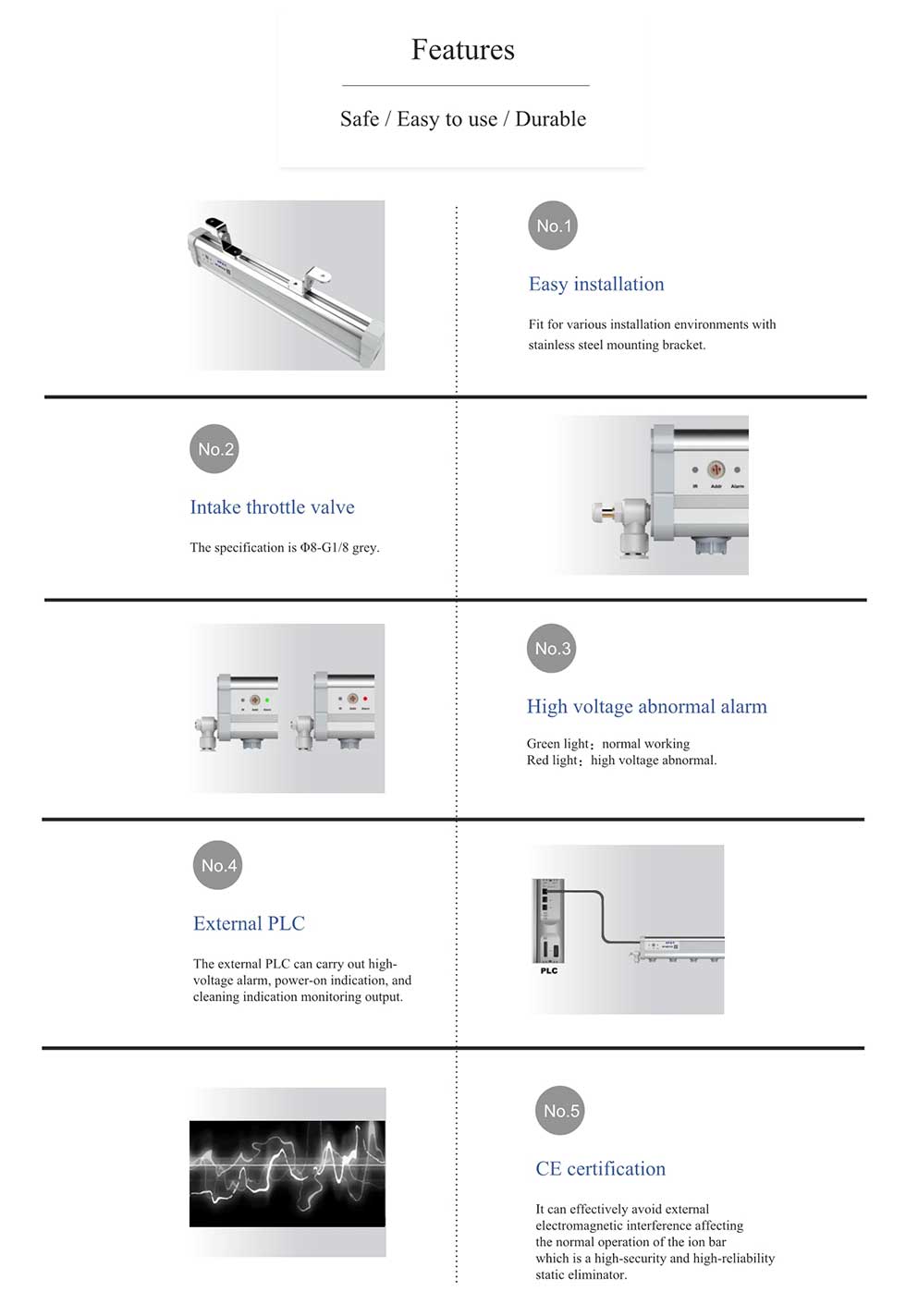

| Status indicator | High pressure alarm indicator (green light------normal operation ; red light abnormal high voltage) |

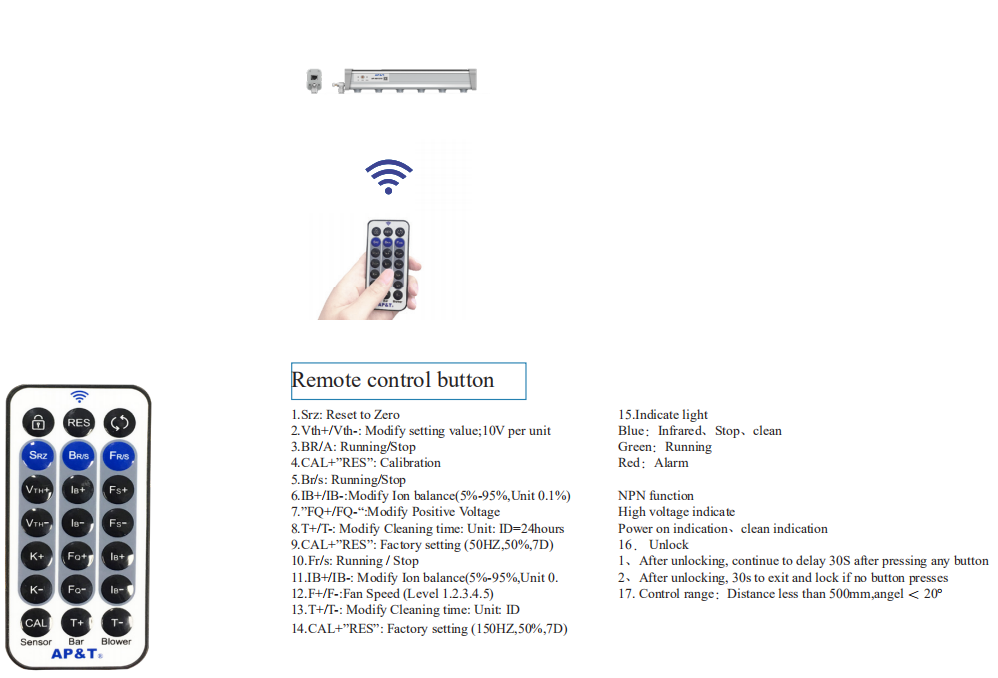

| Communication function | RS485 |
| Signal output | Open collector 50V/100mA |
| Air pressure | ≤0.6MPa |
| Compressed air connector | Φ8-G1/8 Grey |
| Working temperature | 0℃-50℃ |
| Working humidity | ＜ 70% |
| Dimensions | L*W*H：(300-3000mm)*35*64.5mm |
| Bar material | Flame retardant PVC、AL、SUS |
| Packaging accessories | 180°rotating installation angle, M5-12*12*4 square nut |
| Warranty | 1 year |
| Certification | CE |
