BSLIGHT RECESSED T-BAR MIRROR REFLECTOR FITTING (imperial size) BSC/PL 420 for 4x18W

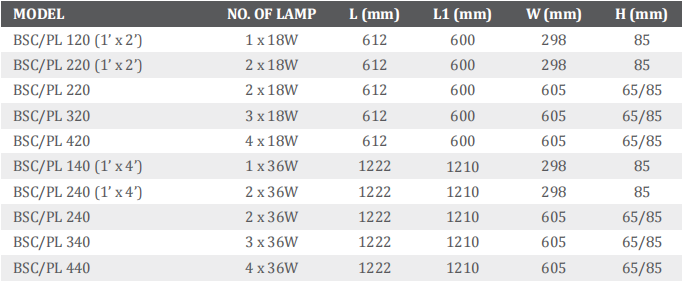

• BSC/PL 120 (1' X 2')

• BSC/PL 220 (1' X 2')

• BSC/PL 220

• BSC/PL 320

• BSC/PL 420

• BSC/PL 140 (1' X 4')

• BSC/PL 240 (1' X 4')

• BSC/PL 240

• BSC/PL 340

• BSC/PL 440

Application

Mainly used for general lighting in offices, hypermarkets, hospitals, complexes.



Product Data

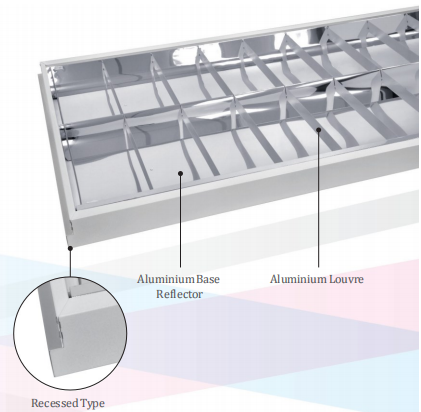

1. Type: Recessed T-Bar mirror reflector fitting (imperial size)

2. Model/Code: BSC/PL

3. Body: High quality gauge sheet steel

4. Paintwork: Fully coated with epoxy powder coated finished

5. Mounting: Recessed type

6. Light Source: Fluorescent TLD lamp and T8 LED

7. Lampholder & starterholder: Polycarbonate material

8. Components: Conventional or Electronic ballast, EL emergency power pack, Fused terminal block

9. Number of Lamp: 4 x 18W

10. Size (mm): L- 612mm ; L1- 600mm ; W- 605mm ; H- 65/85mm
