SJLITE ECO SD T8 DAIKON DIFFUSED BATTEN SERIES 220 ECO SD 2A 220



Featured

  1. Daikon diffused batten provides visual comfort by reducing direct glare from the light source.

  2. Features with plastic snap-on endcap design for simple installation.

  3. Various type of diffuser for good upward light distribution and greater aesthetic appeal.


Application

  1. Suitable for indoor application, corridor, staircase, walkway, lift lobby and retails shop.


Electrical Data

  1. Input Voltage (V) : 240V-50Hz

  2. Power Factor (λ): >0.9


Product Data

  1. Mounting: Surface

  2. Housing Material: Cold Rolled Steel

  3. Coating: Epoxy Polyester Powder

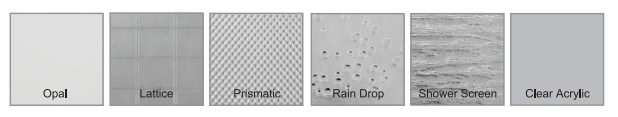

  4. Diffuser: Wide Choice of Diffuser type for selection

  5. Light Source: SJLITE ECO Glass Tube HO

  6. Ingress Protection: IP20

  7. Insulation Classification: Class I

  8. No. of Lamp: 2

  9. Dimension (mm): L - 625mm ; L1 - 635mm ; W - 58mm ; W1 - 120mm ; H - 41mm ; H1: 102mm

  10. Length of Tube: A (2ft)

  11. Sirim Approved (together with SJLITE ECO Glass Tube HO only)


Control

  1. Dimming Option: Fixed Output

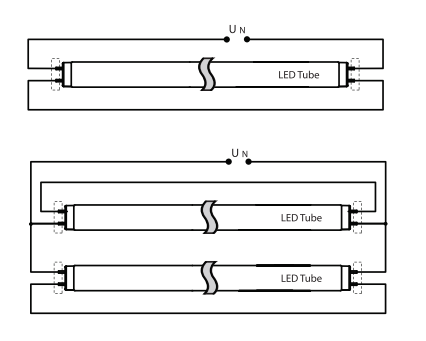

WIRING DIAGRAM

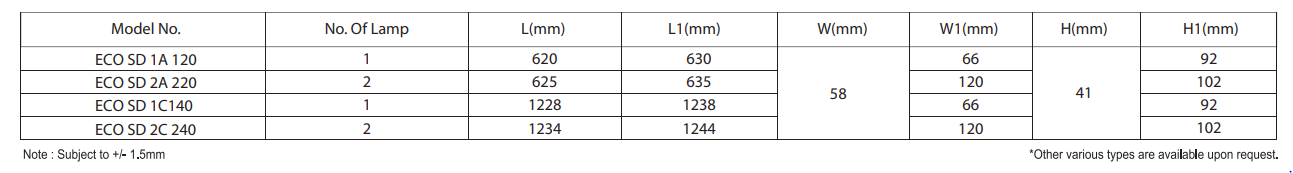

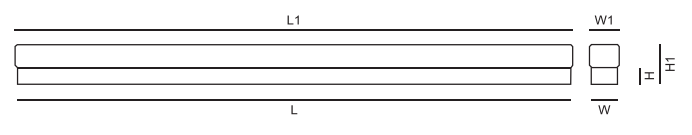

DIMENSION
