SM 010

SM 010

Category: Thermostat Available
RM 290.32 For more information, visit our official website at winstonelectric.com.my

Description



  1. 16 Amp DC switching capacity
  2. Variety of applications
  3. Compact design
  4. DIN rail mountable

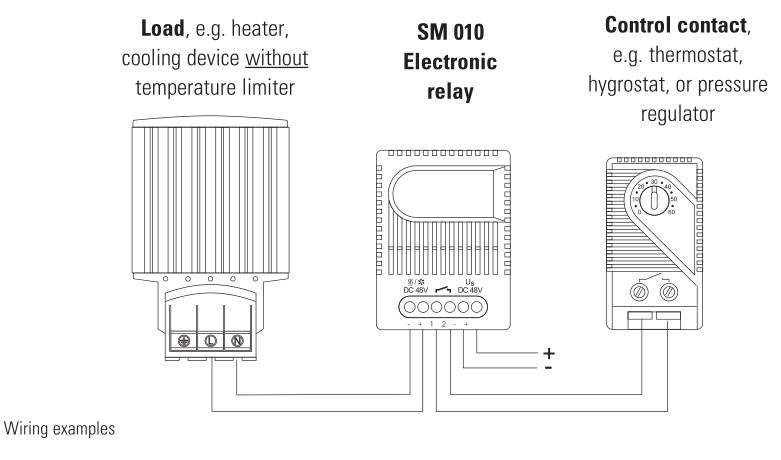

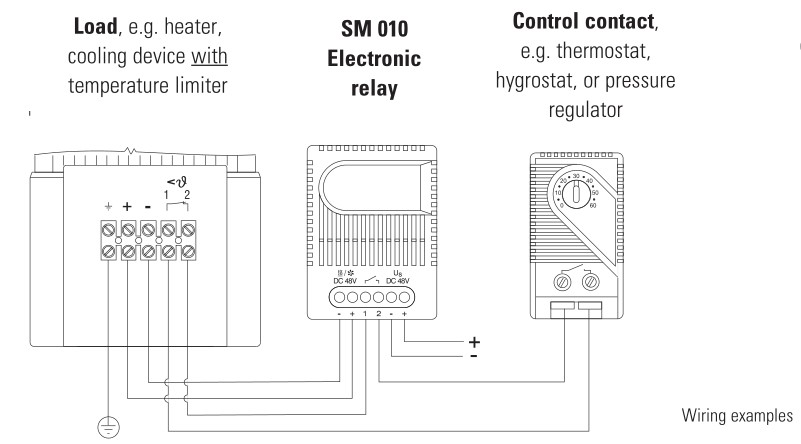

 The SM 010 Electronic Relay is used for switching high powered DC operated equipment, such as heaters, up to 16 amps. A separate conventional switch contact is used as controller (e.g. thermostat, hygrostat). The electronic relay is available in DC 24 V and DC 48 V versions.

Contact type contact maker (Relay/MOSFET)
Contact resistance < 10mOhm
Service life > 100 000 cycles
EMC acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection 6-pole terminal, clamping torque 0.5Nm max., rigid wire 2.5mm²
Mounting clip for 35mm DIN rail, EN50022
Casing plastic according to UL94 V-0, light grey
Dimensions 67 x 50 x 46mm
Weight approx. 85g
Fitting position variable
Operating/Storage temperature -45 to +70°C (-49 to +158°F)
Protection type IP20
Approvals VDE intended
