Description

SUNISO GS Series (3GS / 4GS / 5GS / 4SA / 4HT) Refrigeration Oils (SUNOCO JAPAN) New Packaging

Type and Packaging (NEW)

SUNISO 3GS X 4L (6x4L can) REFRIGERANT OIL - SUNOCO JAPAN = RM90.00 PER CAN (9-10-2023=AAA17.777)
(EQUAL TO DANFOSS 160P MINERAL OIL)

SUNISO 4GS X 4L (6x4L can) REFRIGERANT OIL - SUNOCO JAPAN = RM90.00 PER CAN (9-10-2023=AAA17.777)

SUNISO 5GS X 4L (6x4L can) REFRIGERANT OIL - SUNOCO JAPAN

SUNISO 3GS X 20L REFRIGERANT OIL - SUNOCO JAPAN = RM415.00 PER PAIL (9-10-2023=AAA20.4819)
(EQUAL TO DANFOSS 160P MINERAL OIL)

SUNISO 4GS X 20L REFRIGERANT OIL - SUNOCO JAPAN = RM415.00 PER PAIL (9-10-2023=AAA20.4819)

SUNISO 5GS X 20L REFRIGERANT OIL - SUNOCO JAPAN
SUNISO 4SA X 20L REFRIGERANT OIL FOR R-717 (Ammonia) - SUNOCO JAPAN * Special Order!
SUNISO 4SA X 200L (DRUM) REFRIGERANT OIL FOR R-717 (Ammonia) - SUNOCO JAPAN

SUNISO 4HT X 20L REFRIGERANT OIL FOR R-717 (Ammonia) - SUNOCO JAPAN * Special Order!

SUNISO GS Oils are premium quality oils expressly designed for use as refrigeration compressor lubricants.

SUNISO GS Oils are miscible well with HCFC and CFC refrigerants such as R-22, R-502 and R-12 while featuring excellent stability and giving long trouble-free service life in the refrigeration systems using above refrigerants. In addition, SUNISO GS Oils also perform excellently with natural refrigerants such as R-717, R-600a and R-290.
SUNISO GS Oils are refined from specially selected naphthenic crude oils by special method assuring excellent lubricity and other properties.
SUNISO GS Oils are approved by all major air-conditioner, refrigerator, freezer, car air-conditioner manufacturers in the world.

	Chemical Stability To resist chemical reaction with the refrigerant or other material normally present in the system.
	Thermal Stability To eliminate excessive carbon deposits at compressor hot spots such as valves or discharge ports.
	Low Wax Content To prevent separation of flocculant wax from the oil-refrigerant mixture at the low temperature points in the system.
	Low Pour Point To prevent separated oil from congealing in refrigerant lines.
	High Dielectric Strength To insure good insulating properties. In hermetic units, the oil-refrigerant mixture serves as an insulator between the motor and the compressor body.
	Proper Viscosity Even when diluted with refrigerant so as to insure high film strength at elevated operating temperatures and while providing good fluidity under coldest operating conditions.
	No Contamination To prevent scarring of bearing surfaces, plugging of lines or oil ports and general deterioration.

SUNISO GS Oils

Conventional Oils

Sealed Tube Test

Terms : 175°C x 14days
Catalyst : Fe, Cu, Al
Refrigerant : R-12

SUNISO GS Oils feature excellent chemical stability.

Floc Test

3GS at -50°C
Refrigerant : R-12

SUNISO GS Oils don't precipitate wax deposit in an extremely low temperature section of the system such as valve or evaporator.

Pour Point

3GS at -40°C

SUNISO GS Oils are featuring outstanding fluidity at a low temperature condition resulting good oil returning in the refrigeration systems.

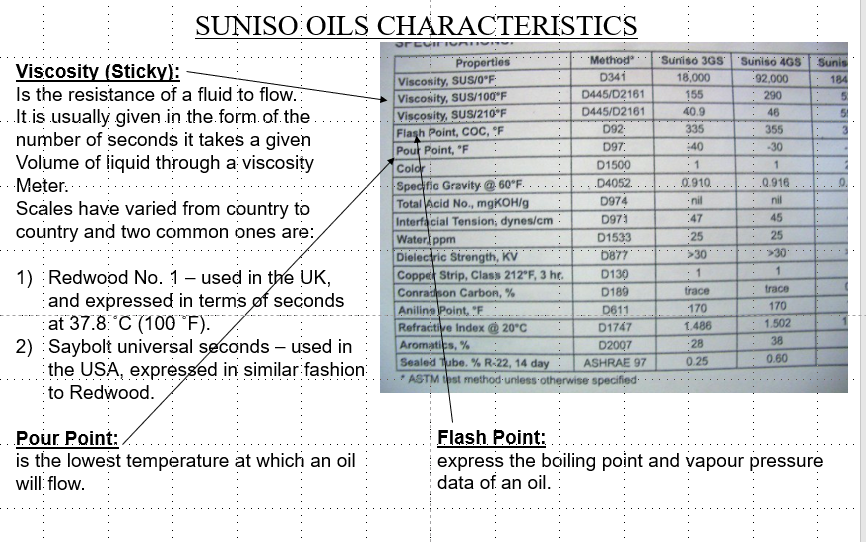

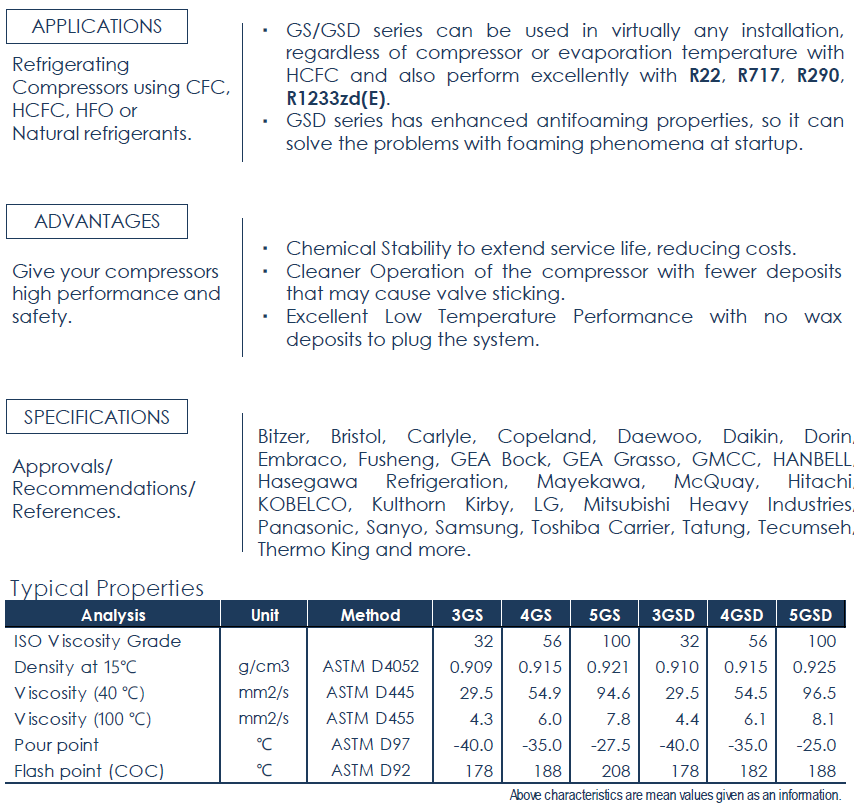

TYPICAL DATA

Property

SUNISO 3GS

SUNISO 4GS

SUNISO 5GS

Density

15°C

g/cm³

0.909

0.915

0.921

Color

ASTM

L0.5

L1.0

Viscosity

40°C

mm²/s

29.5

54.9

94.6

Viscosity

100°C

mm²/s

4.31

5.97

7.78

Flash Point

COC

°C

178

188

208

Pour Point

°C

-40

-35

-27.5

Total Acid No.

mgKOH/g

0.01

Aniline Point

°C

75.4

79.8

80.4

Water

ppm

Floc Point

°C

-53

-46

-35

For the after-market and service field, Suniso GS Oils are available in 200L Drum and 20L Pail Can. Special package of Carton Case (4L Can x 6) is also available.

*Suniso is a trademark of Sonneborn Inc.
