Model: X2P

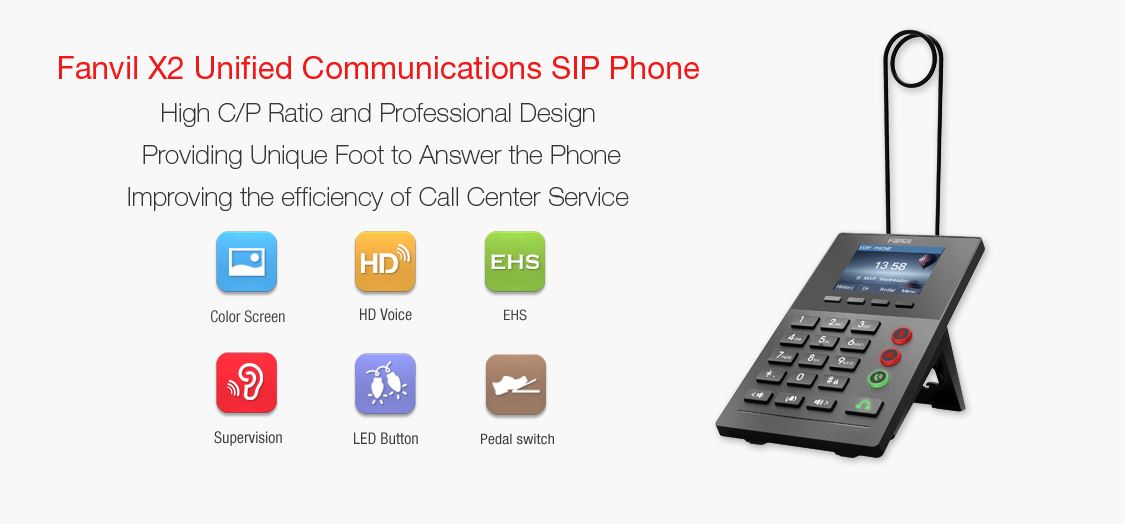

FANVIL Call Center IP Phone
The X2P is a special design call center IP phone which offers high C/P Ratio and Professional Design, provides unique foot to answer the phone. The quite intentional choice of high-quality materials, combined with a generously large 2.8 inch 320x240 color LCD that guarantees both a smoother user experience and easier access to much more visual information at a glance. Dual 10/100 Mbps network ports with integrated PoE are ideal for extended network use. The X2P supports 2 lines and plus SRTP/HTTPS/TLS, VLAN and QoS. It includes RJ9 and 3.5mm port and EHS headset use and supervision, has been designed very specifically for improving the efficiency of call center service.
Key Features
-
Professional IP phone customized for call center
-
2 SIP Lines, 3-way conference
-
2.8” (320x240) color-screen (Only X2P)
-
Support call center headset (RJ9 port, 3.5mm port)
-
Electronic Hook Switch (EHS) support for wireless headset
-
LED function Keys for Mute/Hold/Call Forwarding/Headset
-
Support off-hook/on-hook by pedal switch
-
Support LDAP, XML Phonebook
-
10/100Mbps Ethernet, PoE integrated (X2CP/X2P)
-
Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc
Technical Specifications
Generic
-
2 SIP Lines
-
2 SIP Lines
-
HD Voice
-
PoE Enabled (X2CP/X2P)
-
Headset mode
-
Optional External Power Supply (X2CP and X2P Optional)
-
Requires headset
Phone Features
-
Local Phonebook (500 entries)
-
Remote Phonebook (XML/LDAP, 500 entries)
-
Call logs (In/out/missed, 600 entries)
-
Black/White List Call Filtering
-
Screen saver(Only X2P)
-
Voice Message Waiting Indication (VMWI)
-
Programmable Soft keys
-
Network Time Synchronization
-
Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
-
Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
-
Support Recording (Through Server Recording )
-
Action URL / Active URI
-
uaCSTA
-
Full-duplex Acoustic Echo Canceller (AEC)
-
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)
-
Background Noise Estimation (BNE) / Noise Reduction (NR)
-
Packet Loss Concealment (PLC)
-
Dynamic Adaptive Jitter Buffer up to 300ms
-
DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO
Call Features
-
Call out / Answer / Reject
-
Mute / Unmute (Microphone)
-
Call Hold / Resume
-
Call Waiting
-
Intercom
-
Caller ID Display
-
Anonymous Call (Hide Caller ID)
-
Call Forwarding (Always/Busy/No Answer)
-
Call Transfer (Attended/Unattended)
-
Call Parking/Pick-up (Depending on server)
-
Redial
-
Do-Not-Disturb
-
Auto-Answering
-
Voice Message (On server)
-
3-way Conference
-
Hot Line
-
Hot desking
Audio
-
Wideband ADC/DAC 16KHz Sampling
-
Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB
-
Wideband Codec: G.722
-
Web-based Packet Dump
-
Configuration Export / Import
-
Phonebook Import/Export
-
Firmware Upgrade
-
Syslog
Networking
-
Physical: 10/100Mbps Ethernet, dual bridged port for PC bypass
-
IP Configuration: Static / DHCP / PPPoE
-
Network Access Control: 802.1x
-
VPN: L2TP / OpenVPN
-
VLAN
-
LLDP
-
QoS
-
RTCP-XR(RFC3611), VQ-RTCPXR(RFC6035)
Protocols
-
SIP2.0 over UDP/TCP/TLS
-
RTP/RTCP/SRTP
-
STUN
-
DHCP
-
LLDP
-
PPPoE
-
802.1x
-
L2TP
-
OpenVPN
-
SNTP
-
FTP/TFTP
-
HTTP/HTTPS
-
TR-069
Physical Specifications
-
LCD x1:
-
X2C/X2CP: 128x48 dot-matrix backlit display
-
X2P: 2.8 inch (320x240) color-screen
-
Keypad: 23 keys, including
-
4 Soft-keys
-
4 LED Function keys (Mute, Hold, Auto Answer, Headset )
-
12 Standard Phone Digits keys
-
2 Volume Control keys, Lower/Increase(Left/Right)
-
1 Volume Select key, (Page Down)
-
1.5M CAT5 Ethernet Cable x1
-
Earphone bracket x1
-
Back Rack x1
-
3.5mm Port x2: Headset x1, Foot pedal x1
-
RJ9 Port x2: Headset x1, Monitor earphone x1
-
RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
-
DC Power Input: 5V/0.6A
-
Power Consumption: Idle 0.9~1.6W, Peak 1.6~2.5W
-
Working Temperature: 0~45℃
-
Working Humidity: 10~95%
-
Installation: Desktop Stand
