Description

The PosiTector 6000 consists of a body and a probe. A wide selection of interchangeable probes are available.
All bodies accept all probes.

Two (2) year probe warranty
Heavy-duty, gold-plated locking connector for industrial environments
Certificate of Calibration (Long Form) traceable to NIST or PTB included with every probe
Each probe retains its own unique calibration information (allowing full probe interchangeability)
Extended cables available for underwater or remote measuring. Specify length when ordering
Probes are PosiTector SmartLink compatible - wirelessly connect PosiTector 6000 probes to your smart device

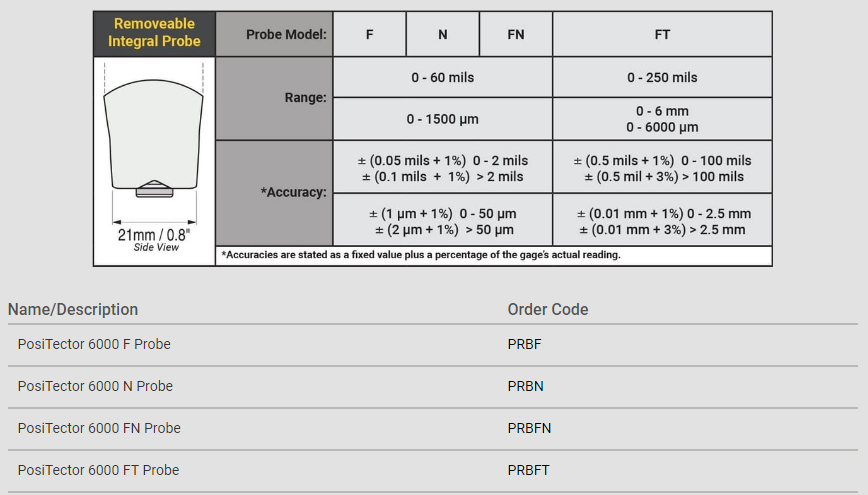

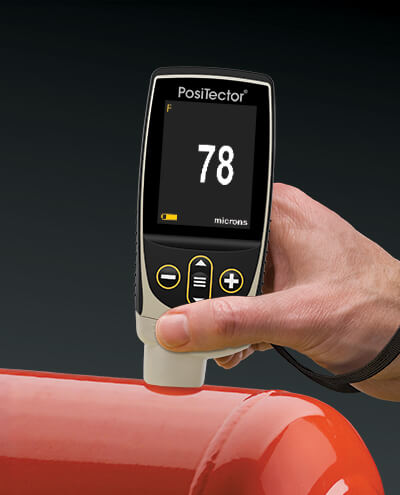

Integral Probes

F, N, FN, FT

Ideal for one-handed operation

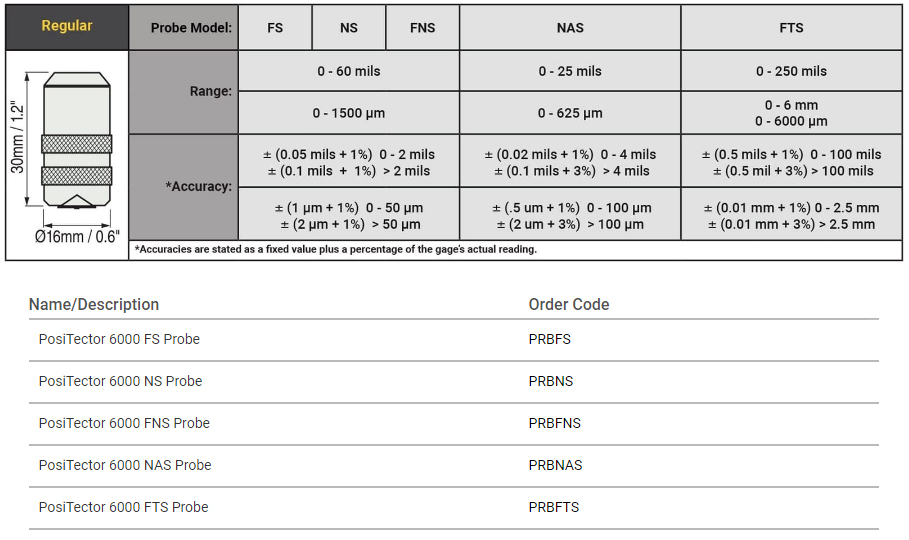

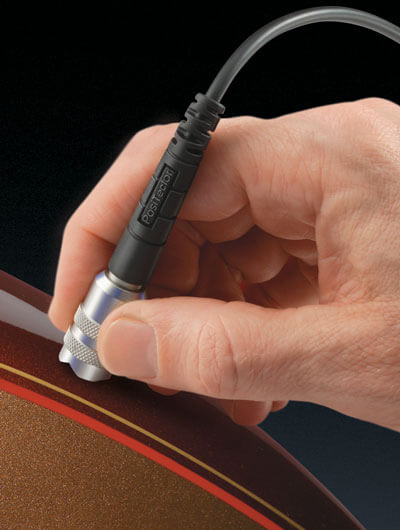

Cabled Regular Probes

FS, NS, FNS, NAS, FTS

These constant-pressure, stainless steel probes are hermetically sealed to be totally waterproof - ideal for underwater use.

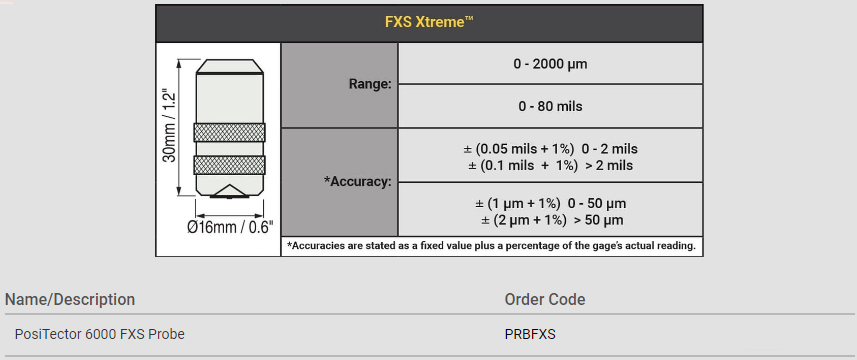

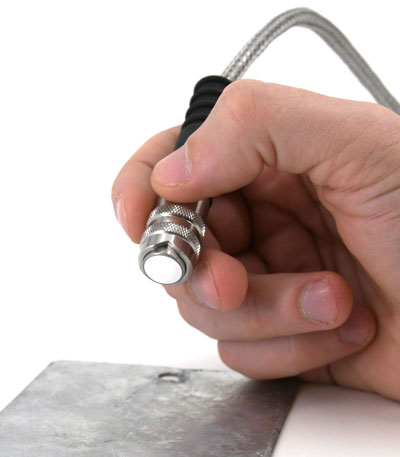

FXS Xtreme™

Designed for hot rugged applications. The FXS Xtreme™ probe features an improved zirconia-toughened alumina wear face and a new braided steel cable making it ideal for harsh conditions and continuous measurement on hot surfaces up to 250˚ C (500˚ F).

Enhanced measuring speed of 100+ readings per minute makes it ideal for measuring large, rough surfaces quickly. Scan mode increases measurement rate to over 200 readings per minute (PosiTector Advanced only).

Compatible with PosiTector bodies with serial numbers greater than 700,000.

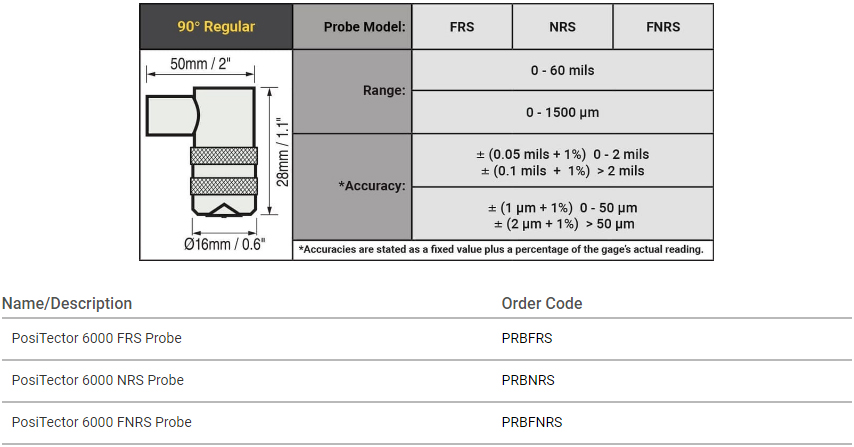

Cabled 90° Regular Probes

FRS, NRS, FNRS

Right angle probe for measuring within areas of low headroom.

These constant-pressure, stainless steel probes are hermetically sealed to be totally waterproof - ideal for underwater use.

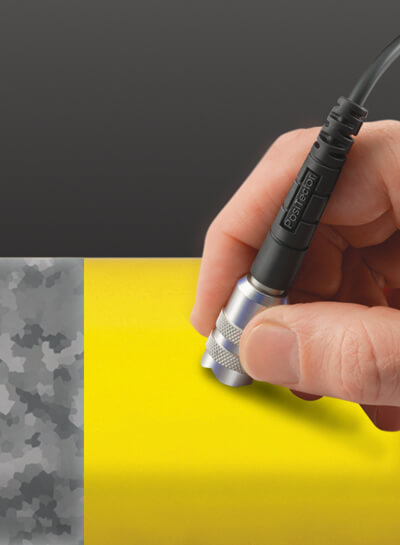

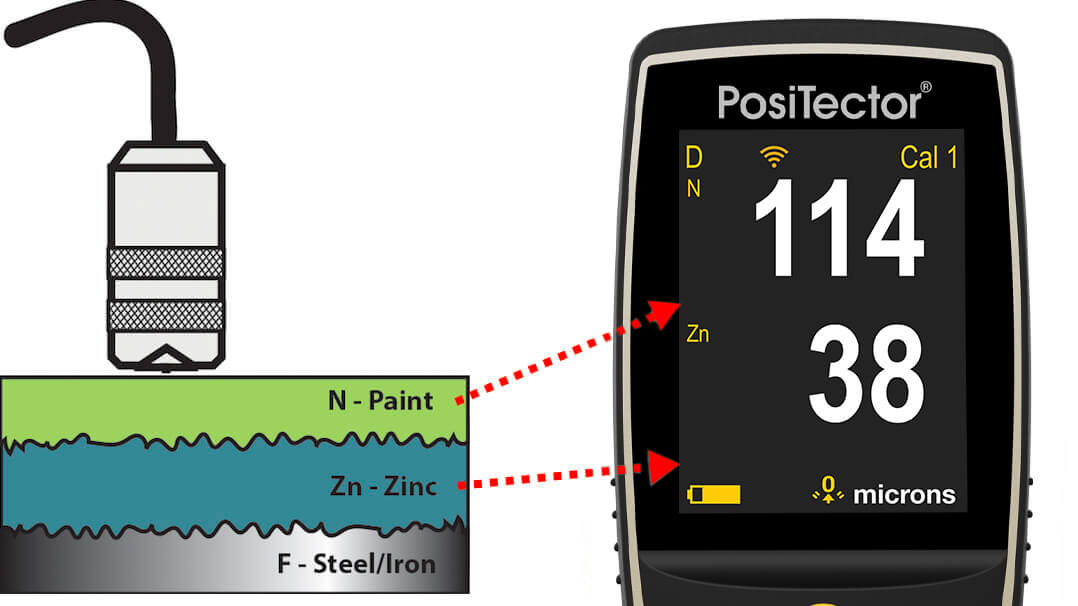

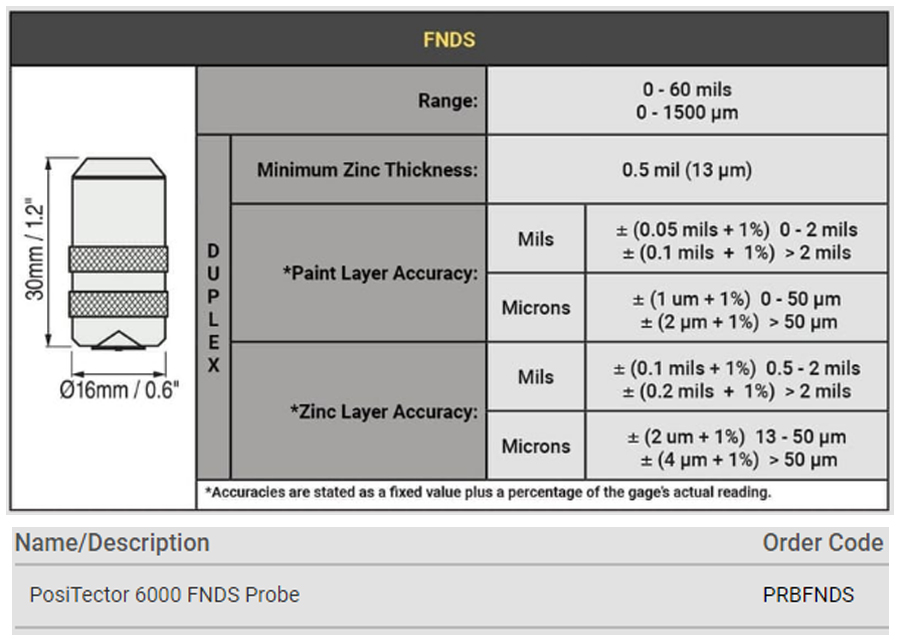

Cabled FNDS Probe for Duplex Coatings

The PosiTector 6000 FNDS probe measures the individual thicknesses of both the paint and the zinc layers in a duplex coating system with a single reading.

Duplex coating systems use a combination of two corrosion protection systems – typically paint or powder coating over galvanized steel (hot-dip, electro or zinc spray metallizing). The resultant corrosion protection is superior to either protection system used independently.

In Duplex mode, the PosiTector 6000 FNDS utilizes both magnetic (ferrous) and eddy current (non-ferrous) principles simultaneously to calculate and display the individual paint and zinc layer thicknesses. The magnetic principle is used to measure the combined paint/zinc thickness over the ferrous substrate, and the eddy current principle is used to measure the paint thickness over the non-ferrous zinc coating. The zinc thickness is calculated by subtracting the paint thickness from the combined paint/zinc thickness measurement.

When disabled, the gage will operate like a conventional combination ferrous/non-ferrous instrument (similar to PosiTector 6000 FNS probe). Ideal for measuring non-magnetic coatings over steel and non-conductive coatings over non-ferrous metal substrates.

Compatible with PosiTector Advanced (serial numbers 730,000+) and PosiTector Standard gage bodies with a color display. A Simple gage update may be required.

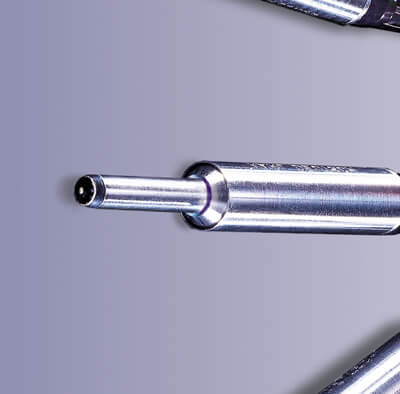

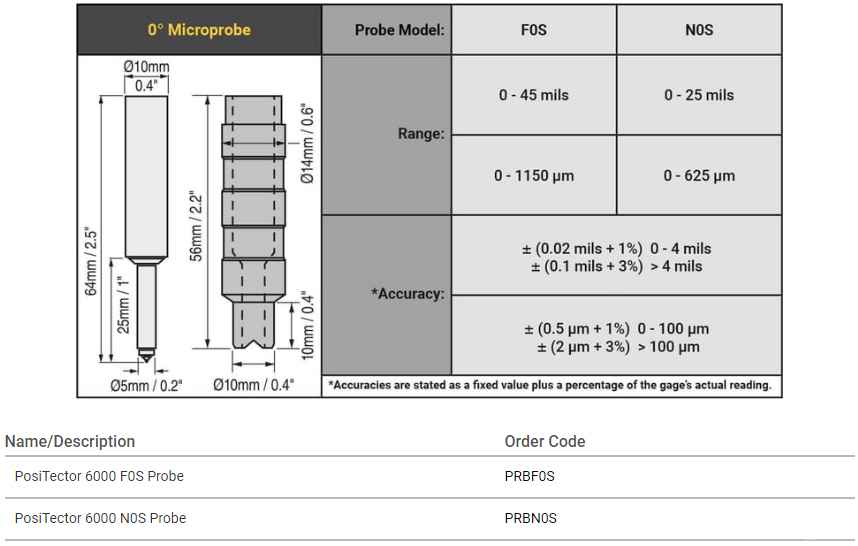

Cabled 0° Microprobes

F0S, N0S

With our smallest measuring tip and best thin-film accuracy, this instrument is ideal for measuring on small parts, hard-to-reach areas, or close to edges.

The straight F0S and N0S Microprobes have a quick release adapter that makes them constant pressure probes for alignment on small, flat or curved parts. This adapter is held in place by a spring. If the sleeve is not required, simply pull it off the probe.

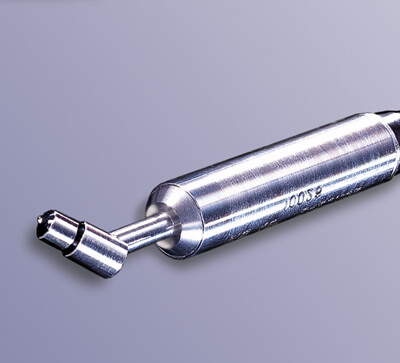

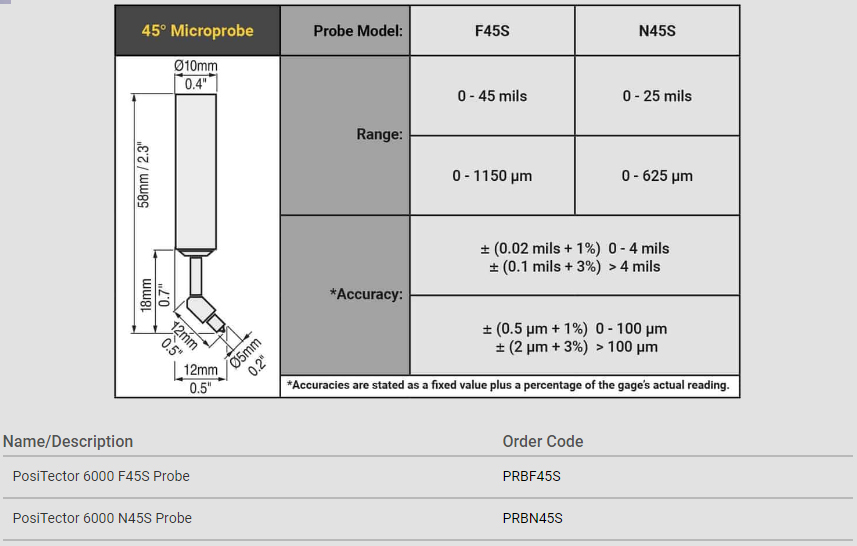

Cabled 45° Microprobes

F45S, N45S

With our smallest measuring tip and best thin-film accuracy, this instrument is ideal for measuring on small parts, hard-to-reach areas, or close to edges.

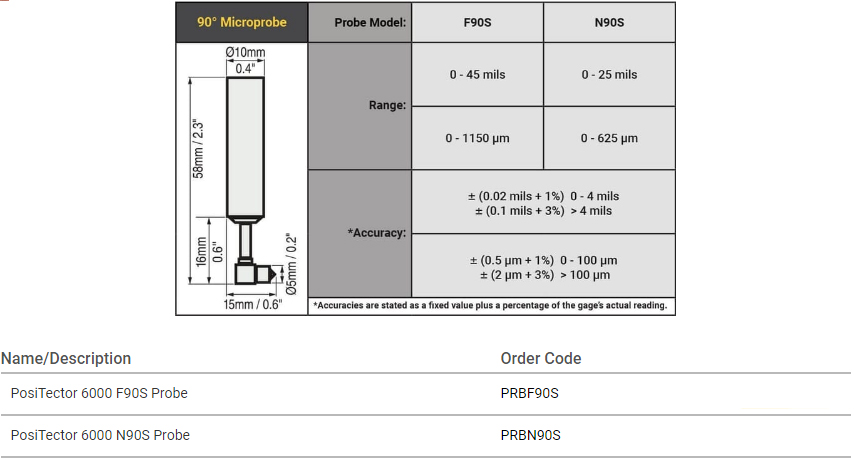

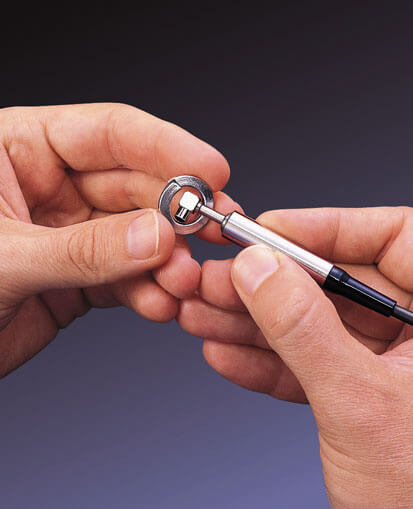

Cabled 90° Microprobes

F90S, N90S

Right angle probe for measuring within areas of low headroom.

With our smallest measuring tip and best thin-film accuracy, this instrument is ideal for measuring on small parts, hard-to-reach areas, or close to edges.

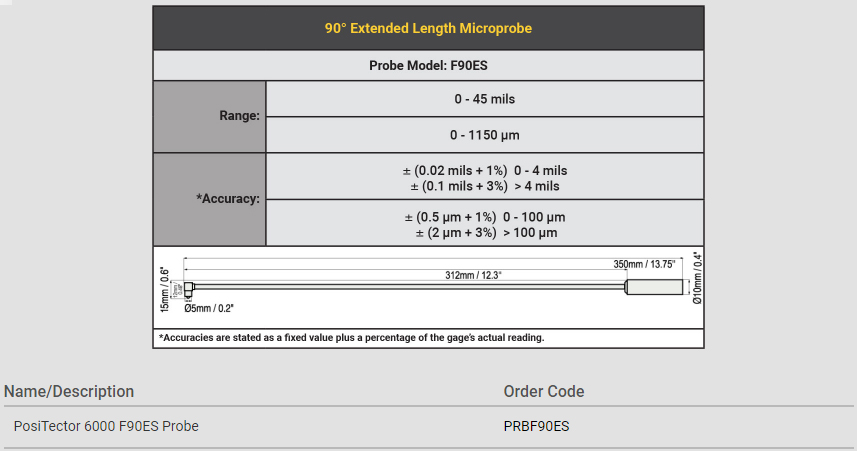

Cabled 90° Extended Length Microprobe

F90ES

Right angle extended length (350 mm / 13.75'') probe for measuring within areas of low headroom.

With our smallest measuring tip, longest probe length and best thin-film accuracy, this instrument is ideal for measuring on small parts, hard-to-reach areas, or close to edges.

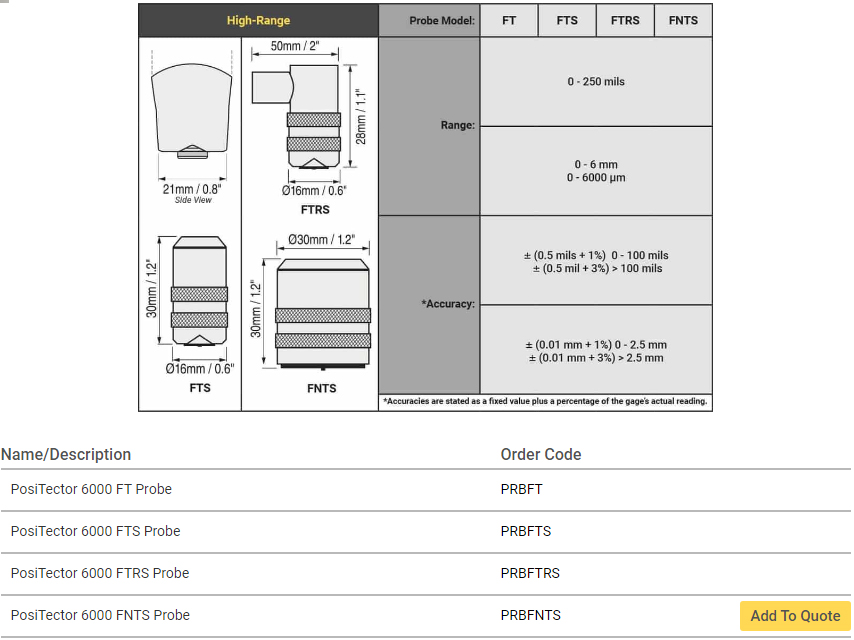

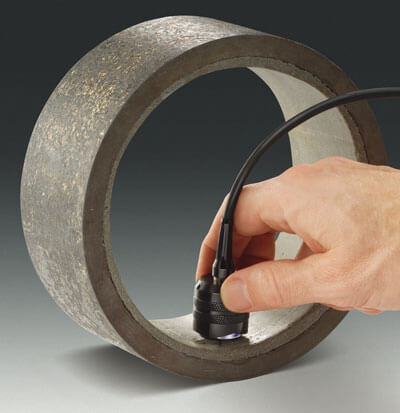

High-Range Probes

FT, FTS, FTRS, FNTS

Ideal for thick protective coatings such as epoxy, rubber, concrete liners, intumescent fireproofing and more.

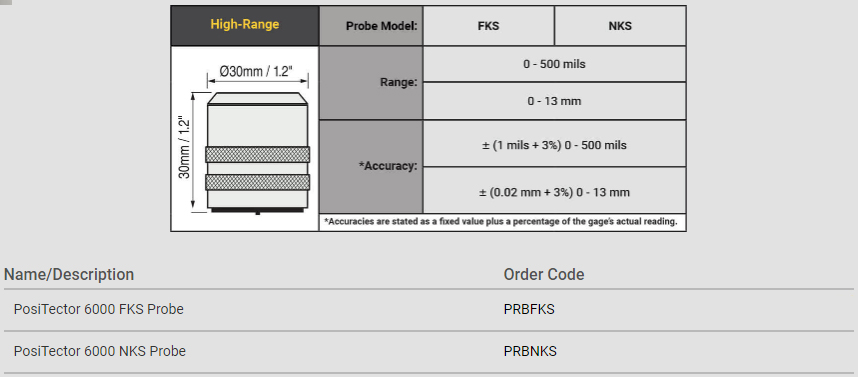

FKS, NKS

Ideal for thick protective coatings such as epoxy, rubber, concrete liners, intumescent fireproofing and more.

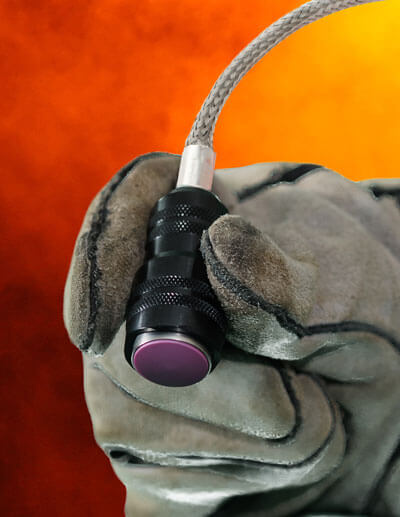

FHXS Xtreme™

Measure non-conductive coatings on steel substrates.

FHXS Xtreme™ probe with Alumina wear face and braided cable for hot or rough surfaces.

Hot surfaces up to 250° C (500° F).Compatible with PosiTector bodies with serial numbers greater than 700,000 and the new PosiTector SmartLink.

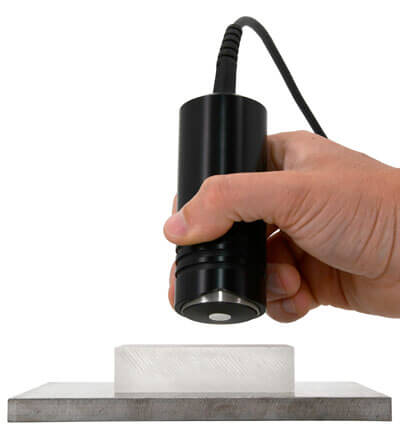

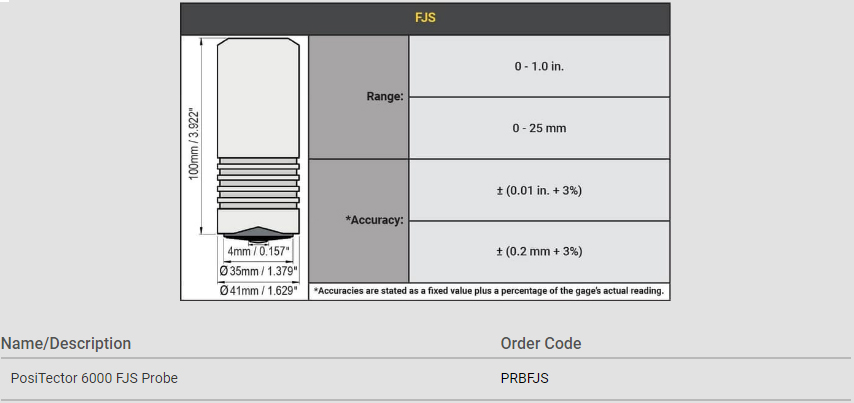

FJS

Ideal for measuring thick epoxies, rubbers, fireproofing and other thick protective coatings applied to steel.

• Lightweight, ergonomic design - 66% smaller than comparable probes

• Electro-magnetic probe is less susceptible to the effects of substrate roughness, curvature, material, and alloy

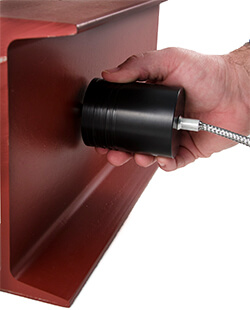

FLS

Measures intumescent paint and other thick protective coatings on steel.

• Measures up to 38 mm (1.5 inches)

• Braided stainless steel cable - kink-proof, wear and cut resistant

• Includes hard shell case and 19 mm (750 mil) shim

Compatible with PosiTector bodies with serial numbers greater than 700,000 and the new PosiTector SmartLink.

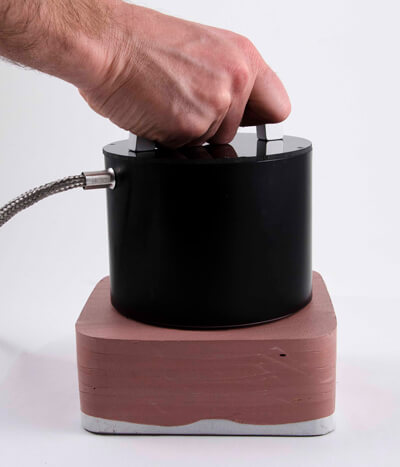

FNGS

Measures very thick coatings on ALL metals. Ideal for measuring ship hull coatings and thick intumescent paints.

• Measures up to 63.5 mm (2.5 inches)

• Measures non-conductive coatings on both ferrous and non-ferrous metal substrates

• Braided stainless steel cable - kink-proof, wear and cut resistant

• Long-lasting, low wear probe face to facilitate scanning of large surfaces

• Includes a handle for easy one-handed operation

• Includes a set of traceable coating thickness standards

• Includes instruction card

Compatible with PosiTector bodies with serial numbers greater than 700,000 and the new PosiTector SmartLink.
