Description

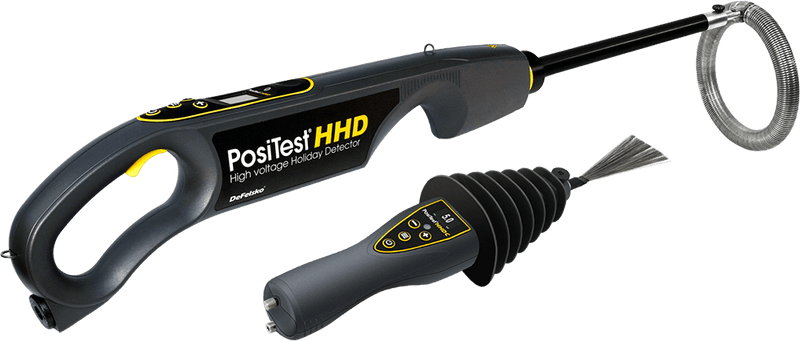

PosiTest® HHDSeries





Detects holidays, porosity, pinholes, leaks, and other discontinuities in coatings, linings, and membranes using pulse or continuous DC

Download DEFELSKO PosiTest® HHDSeries Full Catalog

Conforms to ASTM D4787/D5162/D6747/D7953/G62, ISO 29601, NACE SP0188/SP0274/SP0490, AS3894.1

Features




Simple

  • Easy-to-use with bright, color LCD
  • Ready to measure—includes everything needed for testing
  • Audibly and visibly alerts when flaws/holidays are detected
  • Lightweight, ergonomic design provides comfortable all-day use, reducing fatigue
  • Voltage calculator feature—input the coating thickness to automatically calculate the required test voltage

Safe

  • Press-and-hold Safety Trigger helps prevent accidental high voltage generation
  • 7.6 m (25') ground (earth) cable with locking connector and spring clamp
  • Shock proof/creep proof—internally sealed to minimize creep distance to high voltage components. Designed in accordance with IEC 61010-1.

Versatile

  • A wide range of rolling spring electrodes and wire brushes are available. Custom sizes available upon request.
  • Industry-standard connectors and adaptors for compatibility with nearly all existing electrodes

Durable

Accurate

  • Built-in certified voltmeter (crest meter, jeep meter) displays and regulates the voltage at the electrode
  • Long Form Certificate of Calibration included with each instrument
  • Conforms to national and international standards including ISO, ASTM, and NACE

Powerful

  • Strobe light and loud audible alarms emitted when a holiday is detected.
  • Loud audio alarm remains audible in noisy environments
  • Removable Smart lithium-ion battery

Specifications

Specifications

PosiTest HHD Kit

PosiTest HHD Basic Kit

DC Output

PosiTest HHD C Kit

Pulsed

Output Voltage Adjustment

0.5 kV — 1 kV: 10 Volt Steps

>1 kV: 100 Volt Steps

Output Accuracy

Continuous

Output Voltage Range

±5%

0.5 — 35 kV

Pulse Duration

0.5 — 30 kV

10 μs

Pulse Repetition Rate

30 Hz

Battery Size

72 Wh Li-ion

36 Wh Li-ion

Typical Battery Life
for selected rolling springs @ 10 kV
Ø 12''
Ø 40''
Operating Temperature

40 hrs.

---

16 hrs.

30 hrs.

12 hrs.

-20° to 60°C (-4° to 140°F)

Unit Weight
Case

1.6 kg (3.6 lbs.)

Pelican Storm extreme duty waterproof case

Heavy duty hard-shell case

1.5 kg (3.3 lbs.)

Included Electrode Rod

50 cm (20'')

13 cm (5'')

Shoulder Strap

Included

Optional

Case Dimensions

101 x 46 x 18 cm (40'' x 18'' x 7'')

104 x 39 x 14 cm (41'' x 15.5'' x 6'')

---

---

4 Li-ion 18650 Batteries

0.74 kg (1.63 lbs.)

46 x 33 x 18 cm (18'' x 13'' x 7'')
