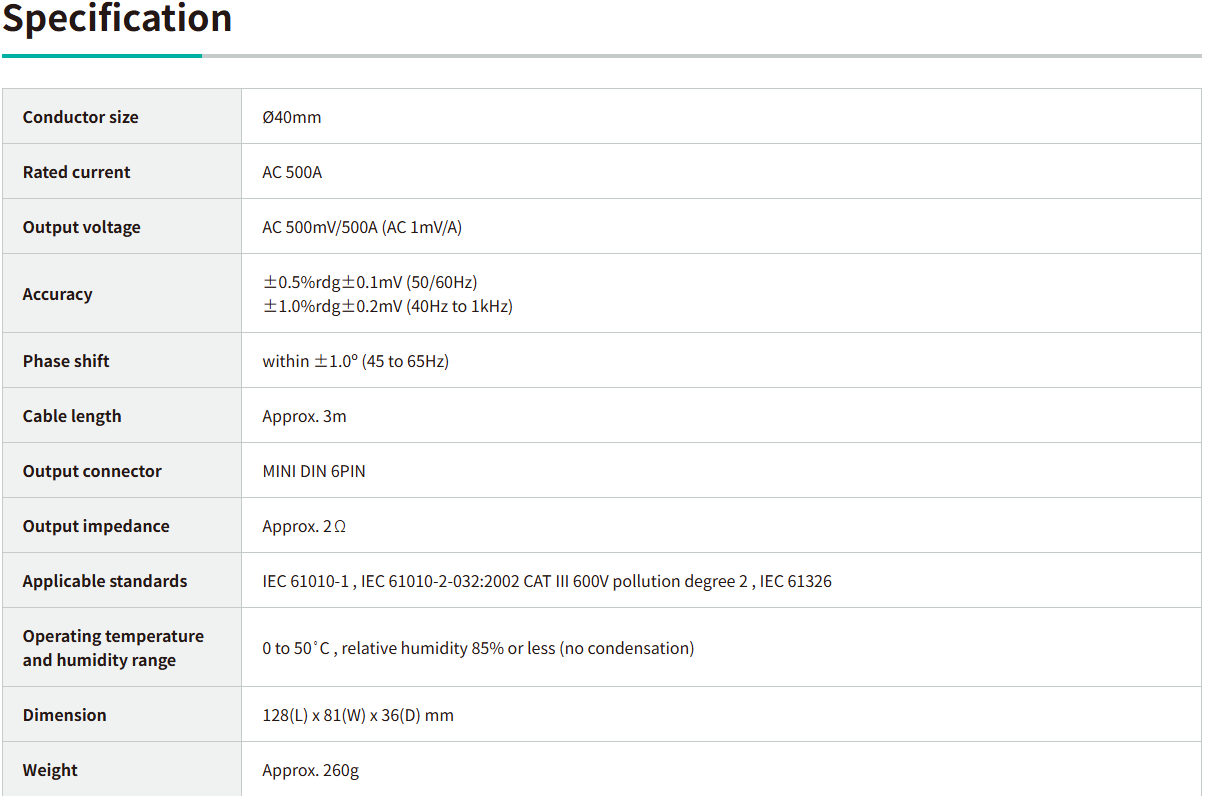

Conductor size |
Ø40 |
|
Rated current |
AC 500A |
|
Output voltage |
AC 500mV/500A (AC 1mV/A) |
|
Accuracy |
±0.5%rdg±0.1mV (50/60Hz)
±1.0%rdg±0.2mV (40Hz - 1kHz) |
|
Phase shift |
within ±1.0º (45 - 65Hz) |
|
Cable length |
Approx. 3m |
|
Output connector |
MINI DIN 6pin |
|
Output impedance |
Approx. 2Ω |
|
Applicable standards |
IEC 61010-1:2001,
IEC 61010-2-032:2002 CAT III 600V pollution degree 2 |
|
Operating temperature & humidity range |
0 - 50ºC, less than 85% RH (without condensation) |
|
Dimensions |
128(L) x 81(W) x 36(D) mm |
|
Weight |
Approx. 260g |
|

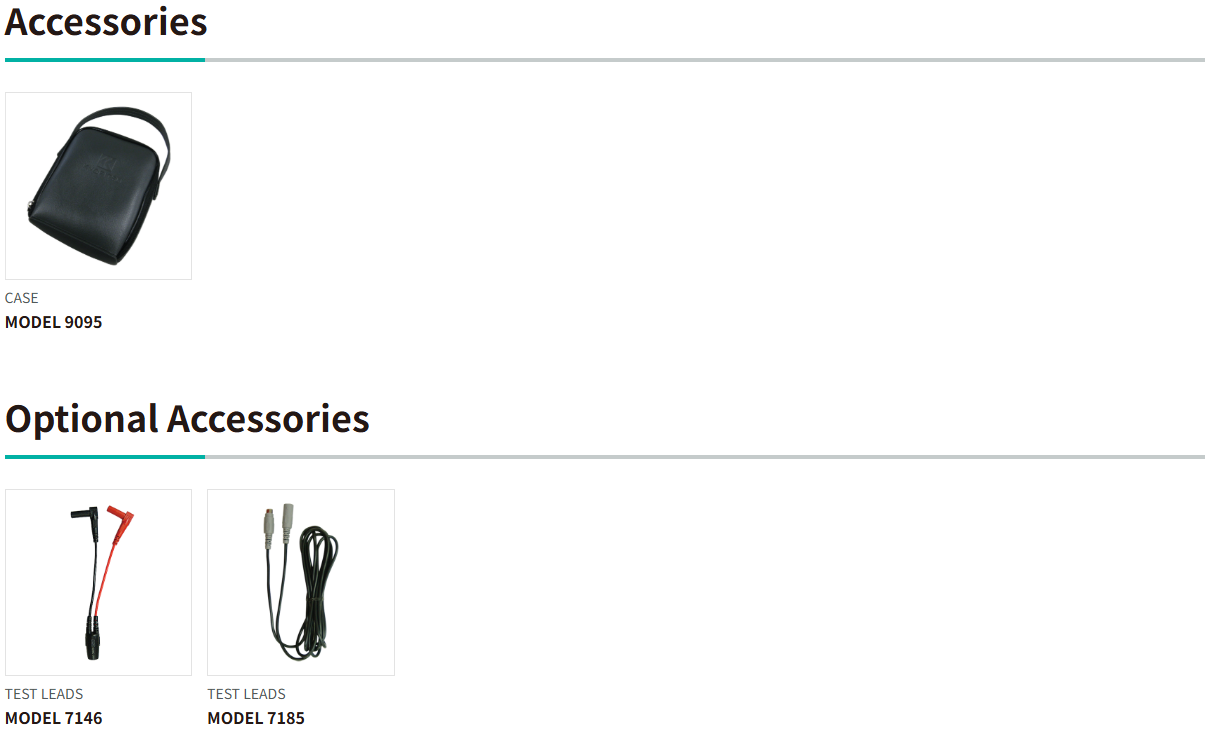

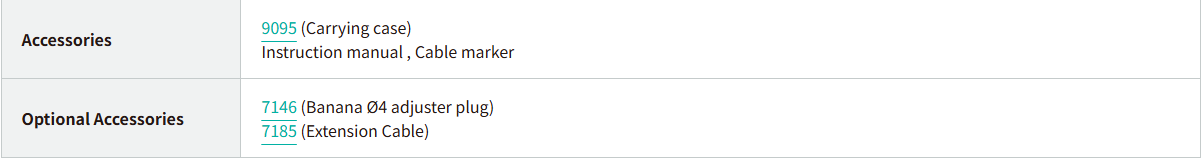

Included Accessories |
9095 (Portable case), Instruction manual, Cable marker |
|
Optional Accessories |
7146 (Banana Ø4 adjuster plug)
7185 (Extension Cable) |
