Penerangan
NF models are waterproof and dustproof. There are ideal lights for use not only in machine but also outdoors. Wide choices of wattage available. Glass or acrylic resin tubes are available for all sizes.
-
CE, RoHS and REACH certified
-
Ingress protection rating:IP-67
-
Tube material:glass/acrylic
‧Specifications
Type |
Power source |
Frequency |
Ballast |
Diameter |
Length(mm) |
NF 13TA(G) |
AC100/220V
50/60Hz |
wire changing |
traditional |
70 |
415 |
NF 15TA(G) |
740 |
NF 18TA(G) |
AC100~240V
50/60Hz |
wire in common |
electronical |
70 |
515 |
NF 20TA(G) |
940 |
NF 36TA(G) |
700 |
NF 40TA(G) |
1496 |
NF 18TA(G) |
DC24V |
wire in common |
electronical |
70 |
515 |
NF 20TA(G) |
940 |
NF 36TA(G) |
700 |
NF 40TA(G) |
1496 |

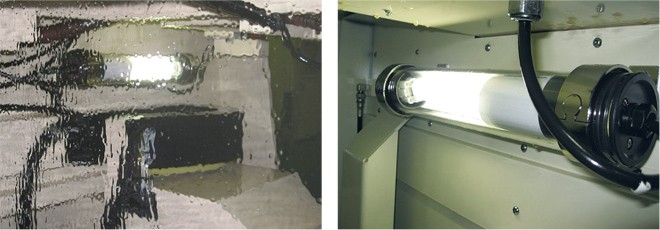

‧Example

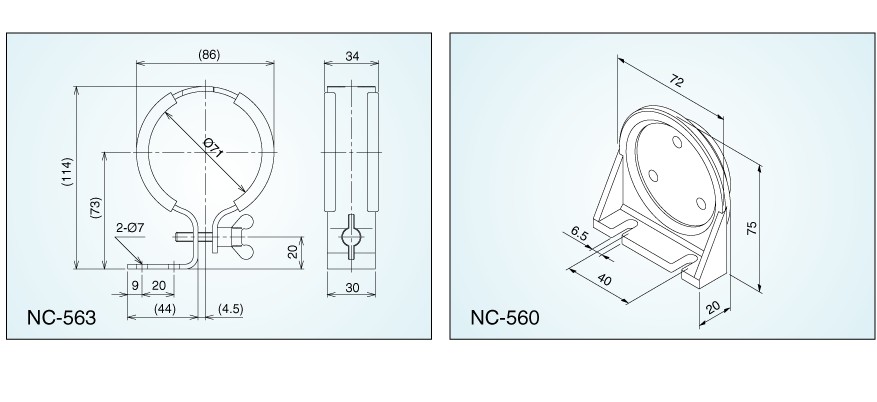

‧Mounting Bracket
|
‧Cable cover
|
