Beta Three N12 300W (RMS) 12" Two Way Full Range Plastic Speaker

Beta Three N12 300W (RMS) 12" Two Way Full Range Plastic Speaker

Kategori: Passive Speaker Tersedia
Untuk maklumat lanjut, lawati laman web rasmi kami di phgproaudio.com.my

Penerangan

Brand: Beta Three
Product Code: N12

Product Description:

Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship, Events, Clubs, Rehearsal Halls etc. The N Series delivers extraordinary performance at unmatched value.

Key Features and Benefits:

• High output SPL and sensitivity
• 1 x 12” high power transducer
• 1 x 2” diaphragm compression driver
• 90º x 90º controlled coverage pattern
• Heavy duty protective grill
• Injection molded
• 2 x NL4 connector
• Cabinet design for FOH and Monitor use
• Suitable for use as a main system with or without sub speaker augmentation
• Portable system (stand), or permanent installation (wall, ceiling)
• Arrays with all active high power N Series sub speakers for extended low frequency, high quality music reproduction
• Monitor kit - optional

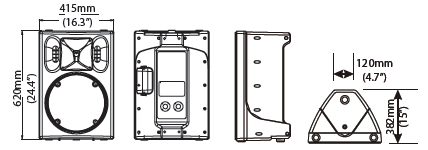

Cabinet Dimension:


Specifications
Construction Plastic
Transducers 1 x 2” HF + 1 x 12” LF
Frequency Response (-3dB) 50Hz-18kHz
Rated Power 300W (RMS)
Maximum SPL (1W @ 1m) 97dB
Input Impedance 128dB (Peak)
Rated Impedance
Dispersion (H x V ) 90° x 90°
Connector 2 x NL4
Dimensions (W x D x H) 415mm (16.3”) x 382mm (15”) x 620mm (24.4”)
Packaging Dimensions (1 piece/pack) 465mm (18.3”) x 435mm (17.1”) x 680mm (26.8”)
Net Weight (1 piece/pack) 18kg (39.7lb)
Gross Weight (1 piece/pack) 20kg (44.1lb)

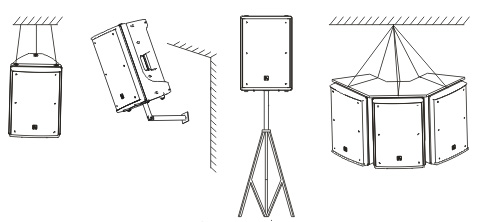

Installation drawing:
