Beta Three U15 300W (RMS) 15" Two Way Full Range Plastic Speaker

Beta Three U15 300W (RMS) 15" Two Way Full Range Plastic Speaker

Kategori: Passive Speaker Tersedia
Untuk maklumat lanjut, lawati laman web rasmi kami di phgproaudio.com.my

Penerangan

Brand: Beta Three
Product Code: U15

Product Description:

Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship, Events, Clubs, Rehearsal Halls etc. The U Series delivers extraordinary performance at unmatched value.

Key Features and Benefits:

• High output SPL and sensitivity
• 1 x 15” high power transducer with 50mm voice coil
• 1 x 1.7” diaphragm compression driver
• Rotatable Horn: 50º-100º x 55º controlled coverage pattern
• Heavy duty protective grill
• Injection molded
• 2 x NL4 connector
• Cabinet design for FOH and Monitor use
• Suitable for use as a main system with or without sub speaker augmentation
• Portable system (stand), or permanent installation (wall, ceiling)
• Arrays with all active high power U Series sub speakers for extended low frequency, high quality music reproduction
• Monitor kit - optional

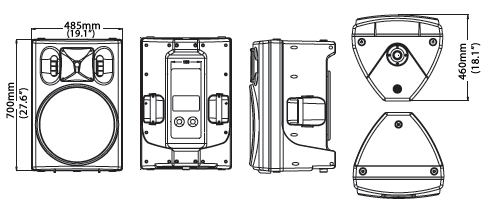

Cabinet Dimension:

Specifications
Construction Plastic
Transducers 1 x 1.7” HF + 1 x 15”LF
Frequency Response (-3dB) 40Hz-18kHz
Rated Power 300W(RMS)
Sensitivity (1W @ 1m) 98dB
Maximum SPL (1W @ 1m) 121dB(Peak)
Rated Impedance
Dispersion (H x V ) 50°-100°x55°
Connector 2xNL4
Dimensions (W x D x H) 485mm(19.1”)x460mm(18.1”)x700mm(27.6”)
Packaging Dimensions (1 piece/pack) 545mm(21.5”)x515mm(20.3”)x800mm(31.5”)
Net Weight (1 piece/pack) 26kg(57.3lb)
Gross Weight (1 piece/pack) 28kg(61.7lb)

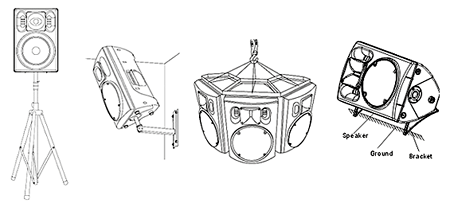

Installation drawing:
