Penerangan

Key Features
• Connectable to TV1 and analog cameras
• Connectable to the Coaxitron camera/dome with long transmission distance.
• Connectable to network cameras
• Simultaneous HDMI, VGA output at up to 1920 x 1080P resolution.
• New GUI and supports starting record with one key.
• Redundant recording and holiday recording schedule configuration.
• Instant playback for assigned camera during multi-channel live view mode.
• Support up to 24/32-ch synchronous playback; and reverse playback for multi-channel.
• Smart playback to go through less effective information.
• Manual video quality diagnostics.
• Support VCA alarm (line crossing detection and intrusion detection)
• Customization of tags, searching and playing back by tags.
• Locking and unlocking record files.
• Support HDD quota and group management; different capacity can be assigned to different cameras under quota mode.

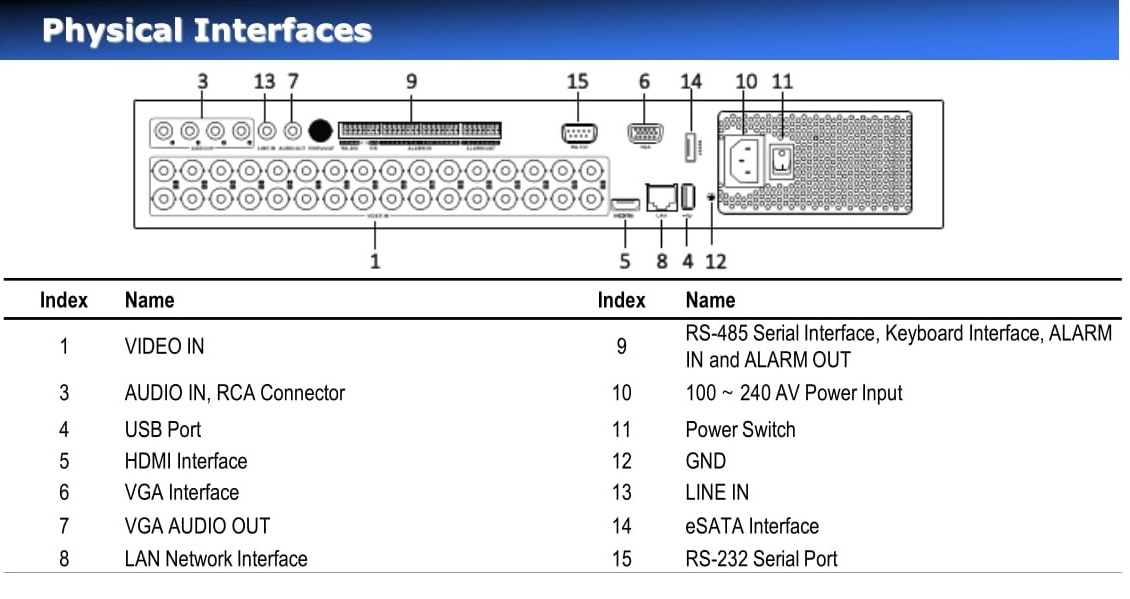

• Provide 4 SATA interfaces and 1 eSATA interface for record and backup.
• 1 self-adaptive 10M/100M/1000M network interfaces.
• Support access by EZVIZ Cloud P2P
• Support Kodio DDNS (Dynamic Domain Name System);
• Network detection function.

Introduction
DVR-7300 series DVR (Digital Video Recorder) is a new generation recorder which can connect HD analog/network cameras and Coaxitron cameras and provide powerful surveillance. Combined with multiple advanced technologies, such as audio and video encoding & decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and corporate with other devices to build a comprehensive surveillance system.
The DVR-7300 series DVR are widely applied in the areas of finance, public security, military, communication, transportation, education, etc.

Specification

Item		HD DVR-7324	HD DVR-7332
Video/ Audio Input	Video compression	H.264
	Analog and HD-TVI video input	24-CH	32-CH
		BNC interface (1.0Vp-p, 75Ω)
	Support camera types	720P25, 720P30, 720P50, 720P60,1080P25, 1080P30, CVBS
	IP video input	8-CH (up to 32-CH)
		Up to 2MP resolution
	Audio compression	G.711u
	Audio input / Two-way audio in	4-ch, RCA (2.0Vp-p, 1kΩ) / 1-ch, RCA (2.0 Vp-p, 1 kΩ)
Video / Audio output	HDMI / VGA output	1920 x 1080 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz
	Encoding resolution	Main stream : 1080P (non-real-time) / 720P / WDI / VGA / 4CIF / CIF
		Sub-stream: WDI (non-real-time) / 4 CIF (non-real-time) / CIF / QCIF / QVGA
	Frame rate	Main stream : 1/16fps ~ Real time frame rate
		Sub-stream : 1/16 fps ~Real time frame rate
	Video bitrate	32Kbps- 6 Mbps
	Audio output	1-ch, RCA (Linear, 1kΩ)
	Audio birate	64 Kbps
	Dual-stream	Support
	Stream type	Video, Video & Audio
	Synchronous playback	24-ch	32-ch
	Playback resolution	1080P / 720P / VGA / WDI / 4CIF / CIF / QVGA / QCIF
Network management	Remote connection	128
	Network protocols	TCP/IP,PPPoE,DHCP,DNS,DDNS,NTP,SADP,SMTP,SNMP,NFS,iSCSI,UPnPTM,HTTPS
Hard disk	Type	4 SATA interface for 4 HDDs; 1 eSATA interface
	Capacity	Up to 4 TB capacity for each disk
External interface	Network interface	1;10M / 100M self-adaptive Ethernet interfaces
	Serial interface	RS-232, RS-485, Keyboard
	USB port	3 x USB2.0
	Alarm in / out	16 / 4
General	Power supply	100 ~ 240 VAC, 47 ~ 63Hz
	Consumption (without hard disk)	< 55W	< 65W
	Working temperature	-10°C~+55°C (14°F~131°F)
	Working humidity	10% ~ 90%
	Chassis	19-inch rack-mounted 2U chassis
	Dimensions (WXDXH)	445 x 390 x 70mm (17.5 x 15.3 x 2.7 inch)
	Weight (without hard disk)	< 5KG (11.0 lb)
