Series DVR (HD DVR-8124/8132)

Series DVR (HD DVR-8124/8132)

Kategori: Kodio Tersedia
Untuk maklumat lanjut, lawati laman web rasmi kami di uniqueamp.com.my

Penerangan

Key Features
•   H.264 & Dual-stream video compression.
•   Support HD-TVI/analog/IP camera triple hybrid.

•   Support both HD-TVI and analog cameras with adaptive access.
•   Full channel@72-P resolution real-time recording.
•   HDMI and VGA output at up to 1920 x 1080P resolution.
•   Long transmission distance over coax cable.
•   Support up to 16-ch synchronous playback.






Specification
Item HD DVR-8124 HD DVR-8132
Video/ Audio
Input
Video compression H.264
Analog and HD-TVI
video input
24-CH 32CH
BNC interface (1.0Vp-p, 75Ω)
Support camera types 720P25, 720P30, 720P50, 720P60,1080P25, 1080P30, CVBS
IP video input 16-ch(up to32-ch)
Up to 2MP resolution
Audio compression G.711u
Audio input 16-ch
RCA (2.0Vp-p, 1k)
Two-way audio in 1-ch, RCA (2.0 Vp-p, 1 kΩ)
Video / Audio
output

HDMI / VGA output 1920 x 1080 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz
CVBS output 1-ch, BNC (1.0 Vp-p, 75Ω), resolution: PAL:704 x 756, NTSC: 704 x 480
Encoding resolution Main stream : 1080P/ 720P / VGA/ WDI / 4CIF / CIF
Sub-stream: WDI (non-real-time) / 4 CIF (non-real-time) / CIF / QCIF / QVGA
Frame rate Main stream : 1/16fps  ~ Real time frame rate
Sub-stream : 1/16 fps ~Real time frame rate
Video bitrate 32Kbps- 6 Mbps
Audio output 2-ch, RCA (Linear, 1kΩ, VGA output and CVBS output respectively)
Audio birate 64 Kbps
Dual-stream Support
 Stream type    Video, Video & Audio
Synchronous playback 24-ch 32-ch
Playback resolution 1080P / 720P / VGA / WDI / 4CIF / CIF / QVGA / QCIF
Network management Remote connection 128
Network protocols TCP/IP,PPPoE,DHCP,DNS,DDNS,NTP,SADP,SMTP,SNMP,NFS,iSCSI,
UPnPTM,HTTPS
Hard disk Type 8 SATA interface for 8 HDDs; 1eSATA interface
Capacity Up to 4 TB capacity for each disk

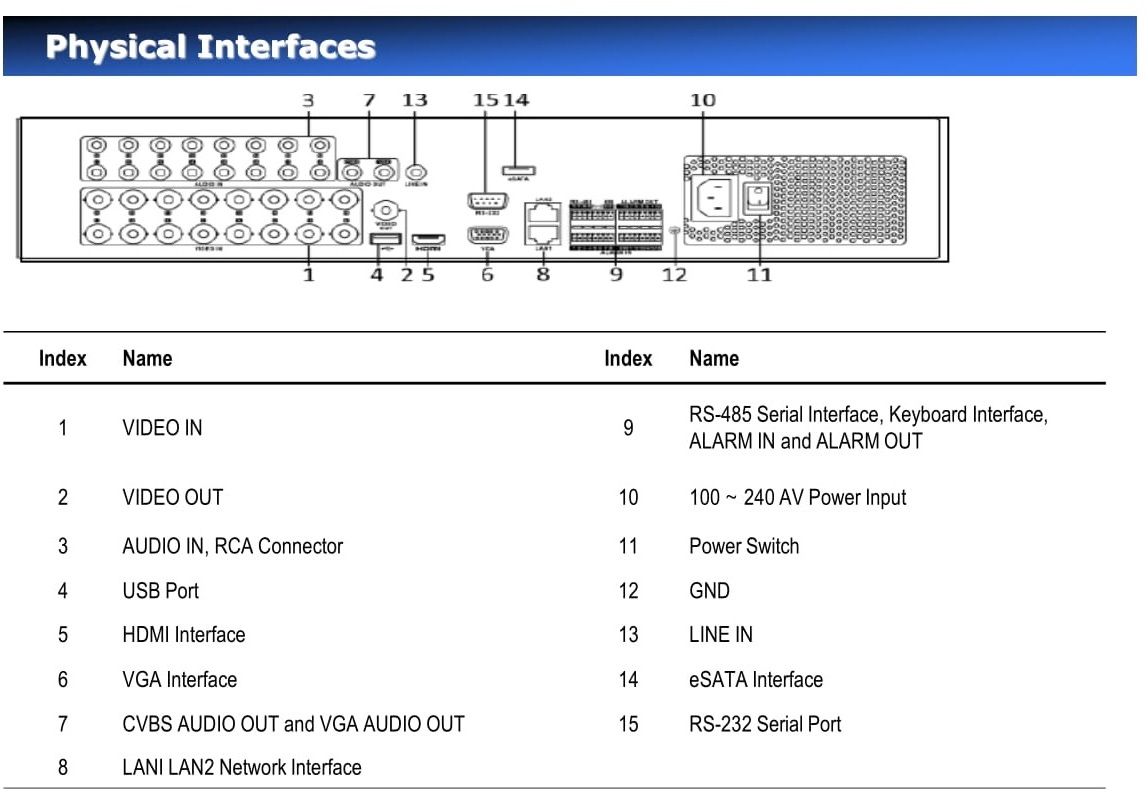

External interface Network interface 2;10M / 100M self-adaptive Ethernet interfaces
Serial interface RS-232, RS-485, Keyboard
USB port 3 x USB2.0
Alarm in / out 16 / 4
General Power supply 100  ~ 240 VAC, 47 ~ 63Hz
Consumption  (without hard disk) < 60W < 67W
Working temperature -10°C~+55°C (14°F~131°F)
Working humidity 10% ~ 90%
Chassis 19-inch rack-mounted 2U chassis
Dimensions (WXDXH) 445 x 470 x 90mm (17.5 x 18.5 x 3.5 inch)
Weight(without hard disk) < 8KG (17.6 lb)
