Penerangan

Key Features

• Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, PSIA, SAMSUNG, SANYO, SONY Vivotek and ZAVIO.
• Up to 16 network cameras can be connected.
• Support live view, storage, and playback of the connected camera at up to 5 megapixels resolution.
• Simultaneous HDMI and VGA at 1920 x 1080 resolution
• New GUI and support starting record with one key.
• Redundant recording, holiday recording and capture schedule configuration.
• Realize instant playback for assigned channel during multi-channel display mode.
• Up to 16-ch synchronous playback at 4CIF resolution.
• Smart search for the selected area in the video.
• Customization of tags, searching, and playing back by tags.
• Locking and unlocking record files.
• Support HDD quota and group modes, different capacity can be assigned to different channel
• Up to 4 SATA hard disks and 1 eSATA disk (optional) can be connected, for both recording and backup.
• 1 self-adaptive 10M/100M/1000M network interfaces.
• Up to 16 independent PoE network interfaces are provided;
• Support Kodio DDNS (Dyanmic Domain Name System);
• Support network detection, including network delay, packet loss, etc.

Introduction
NVR-7716 series NVR (Network Video Recorder) is a new generation recorder developed by Kodio independently. Combined with multiple advanced technologies, such as audio and video encoding & decoding technology, embedded system technology, sotrage technology, network technology and intelligent technology, it can both work alone as a recorder and coorporate with other device to build a comprehensive surveillance system.
The NVR-7716 series NVR can be widely applied in the areas of finance, public security, military, communication, transportation, education etc.

Specification

Item		NVR-7716
Video /Audio Input	IP video input	16CH
Video /Audio Input	Two-way audio	1-ch, RCA (2.0 Vp-p, 1kΩ)
Network	Incoming bandwidth	100Mbps
	Outgoing bandwidth	80Mbps
	Remote connection	128
Video / Audio output	Recording resolution	5MP /3MP /1080P/ UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
	Frame rate	Main stream : 50fps (P) / 60 fps (N)
	Frame rate	Sub-stream: 50 fps (P) / 60 fps (N)
	HDMI / VGA output	1ch, resolution : 1920x1080P /60Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz
	Audio output	1-ch, RCA (Linear, 1KΩ
Decoding	Live view / Playback resolution	5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Decoding	Capability	6CH@1080P
Hard disk	SATA	4 SATA interfaces for 2HDDs + 1 DVD-R/W (default), or 4HDDs
	eSATA (Optional)	1 eSATA interface
	Capacity	Up to 4TB capacity for each HDD

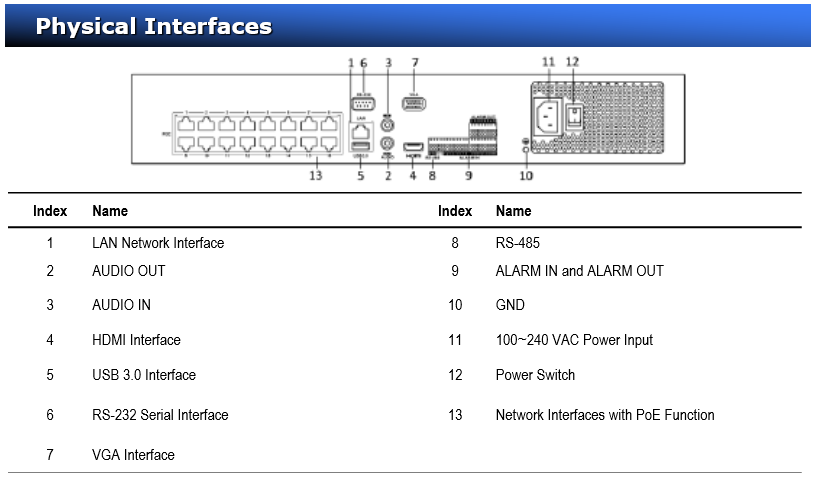

External interface	Network interface	1 RJ-45 10/100/1000 Mbps self adaptive Ethernet interfaces
	Serial interface	RS-232; RS-485
	USB interface	2 x USB 2.0 + 1 x USB 3.0
	Alarm in/out	16/4 (optionally can be expanded to 16/8
PoE	Interface	16 independent 100 Mbps PoE network interfaces
	Max. Power	200W
	Supported standard	AF and AT
Others	Power supply	100~240 VAC
	Consumptin (without hard disk or DVD-R/W, or PoE)	< 20W
	Working temperature	-10°C~+55°C (14°F~131°F)
	Working humidity	10% ~ 90%
	Chassis	19-inch rack-mounted 1.5U chassis
	Dimensions (WXDXH)	445 x 390 x 70mm (17.5" x 15.3" x 2.8")
	Weight (without hard disk or DVD-R/W)	< 4KG (8.82 lb)
