Features
1.Mini-Vise reduces the time of changing other jig to cost down.
2.Mini-Vise applies to different platform.
Description
MINI VISE

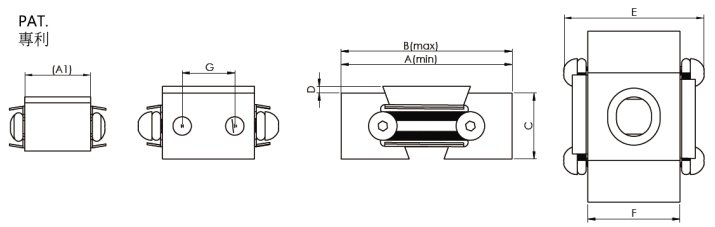

Unit/mm
|
MODEL |
A |
B |
C |
D |
E |
F |
G |
|
A0 |
24.5 |
26.5 |
11 |
1.5 |
21.5 |
15 |
/ |
|
A1 |
39 |
43 |
15 |
1.5 |
32 |
21 |
12 |
|
A2 |
45 |
51 |
22 |
3 |
37 |
30 |
18 |
-
Auxiliary:

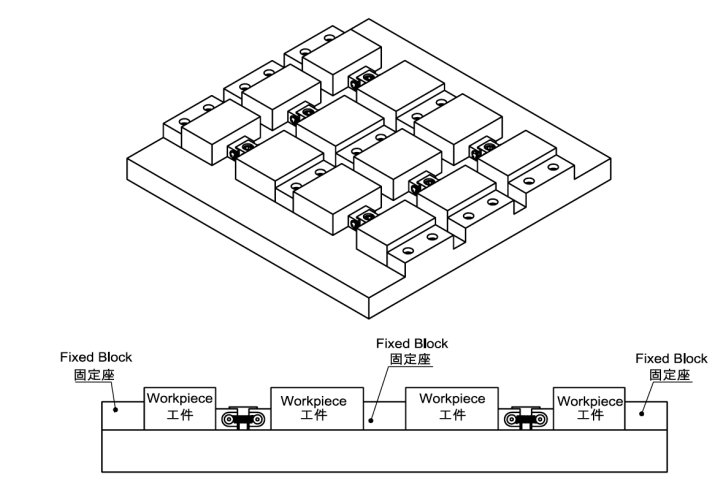

Accuracy of JIG comes from the accuracy of fixed block, workpiece structure and diamter dowel pin(work origin), the JIG its clamping force at the central point is an auxiliary.
