Electro-Permanent Magnetic Chunk EEPM Series
EEPM-CIT
EEPM-CIT



EEPM-CIT

MES MOULDING EQUIPMENT SUPPLIES SDN BHD flag
Kategori: Electro-Permanent Magnetic Chunk EEPM Series Tersedia
Untuk maklumat lanjut, lawati laman web rasmi kami di mes-mould.com
Lawati Laman Web Rasmi Hubungi kami
Penerangan

Suitable in use for combine with CNC 4 Axis Index Device

Features

  1. Super power magnetic force 1250kgf/100cm2+-5%. (4 Poles)
  2. Control each working face for ON and OFF, so it can be load and unload the workpiece on each working face. 3 seconds control for power ON and OFF.
  3. EEPM-CIT2F with 2 magnetic working face, can be clamp 2 workpiece for machining. Suitable for bigger workpiece machining.
  4. EEPM-CIT2F2T with 2 magnetic working face and 2 T-slot working face, can be clamp both of magnetic and non-magnetic material of workpiece machining. Suitable for smaller workpiece machining.
  5. EEPM-CIT4FT with 4 magnetic working face and T-slots available. Suitable for smaller workpiece machining.
  6. Without any obstructed movement of cutters during machining. Can be use all the functions of CNC 4 Axic Index Device completely.

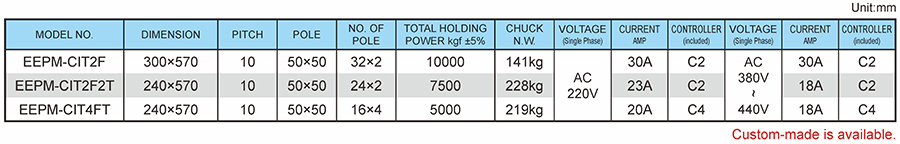

Specification
  1. Suitable in use for combine with CNC 4 Axis Index Device.
  2. Minimum thickness of workpiece required : 10mm.
  3. Minimum size of workpiece required as 4 alternate magnetic square poles and above is necessary for optimum clamping.

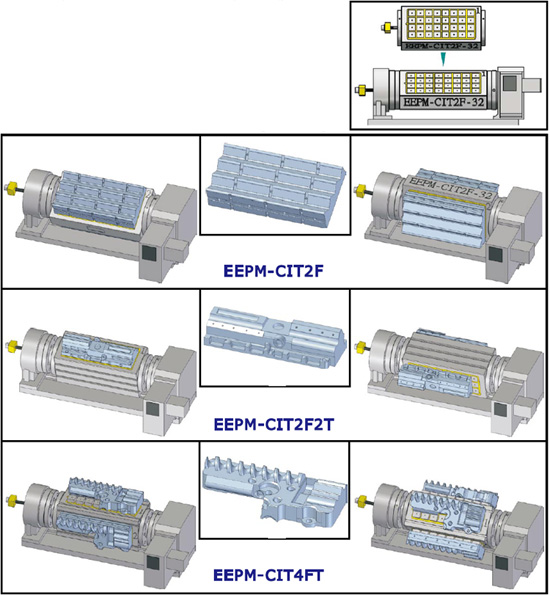

Working Example
