MODUMESH™ Screening Media

Malaysian Industrial Design No. : MY 11-00526-0102 & MY 11-00527-0202

Indonesian Design Registration No. : ID 0032777-D & ID 0032778-D

Vietnamese Design Patent No.17509

Thai Design Patent No.46487

Modumesh is a new design of modular screen panel with nominal size of 320 x 500 which will be installed on special support frame. The interlocking and boltless design requires minimum support on panel and therefore increases surface area for screening purpose. The panel also moulded with flow diverters to direct the flow of material over the holes. Interlocking Side Liners are incorporated into the design for better protection of machine side plates without additional bolts and nuts.

The effective open areas are very high, exceeding 50% for 52mm apertures. The buckle bars are completely covered.

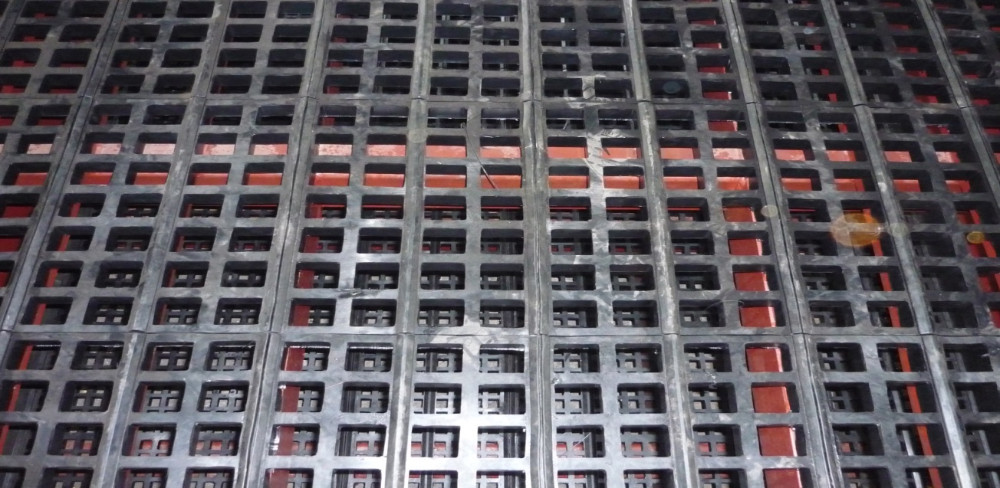

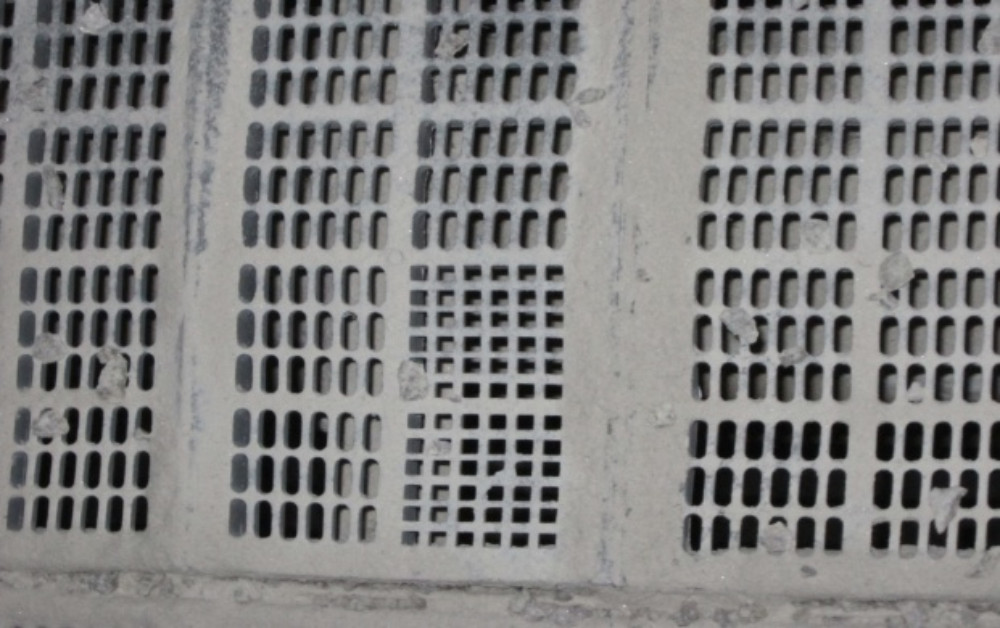

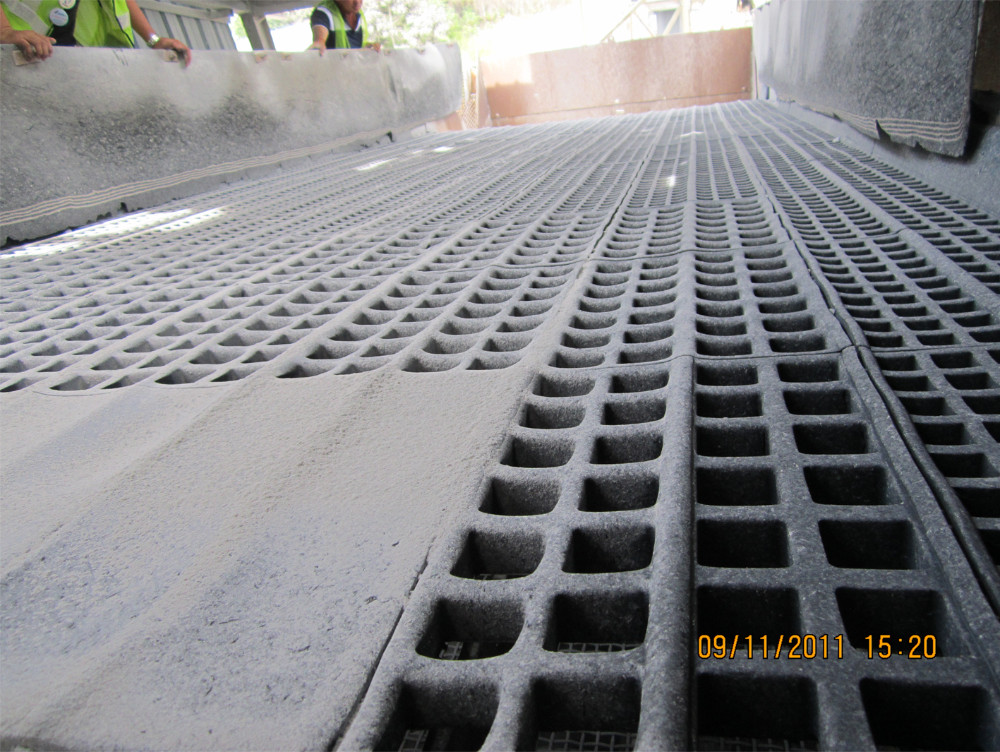

52 x 52mm Square Holes	34 x 36mm Rectangle Holes

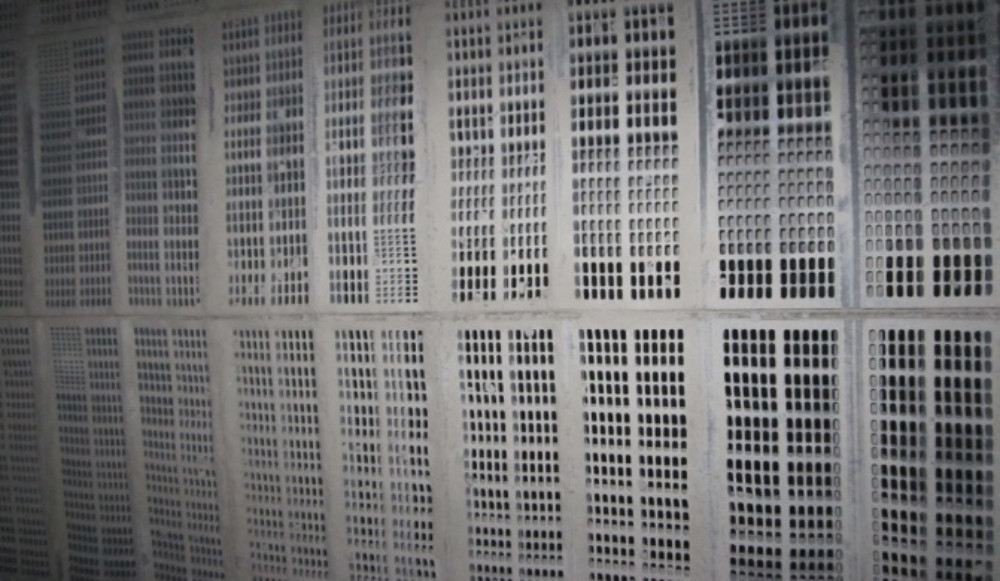

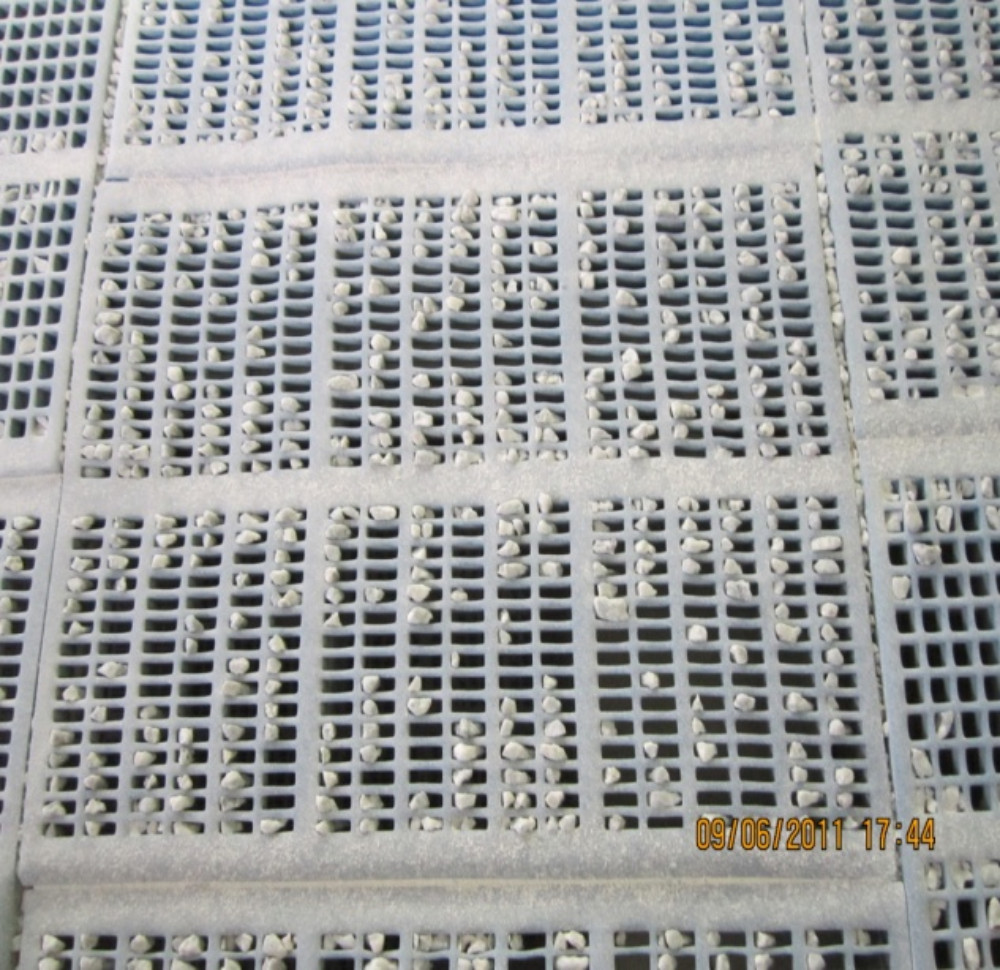

Blinding and pegging problem with wire mesh and polyurethane rectangle holes

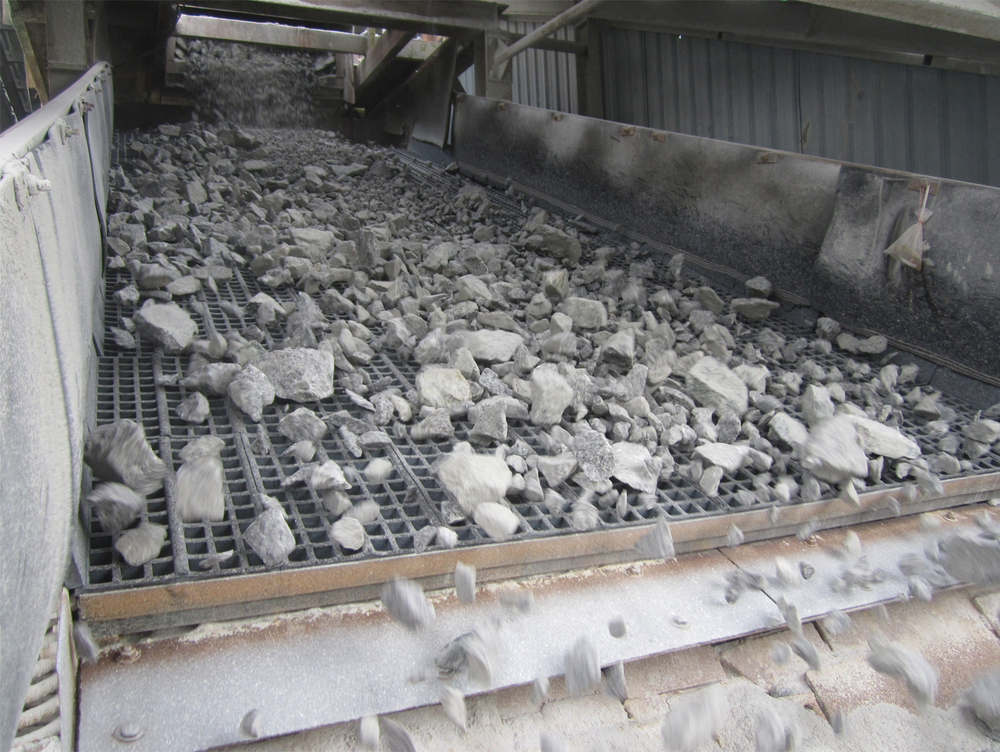

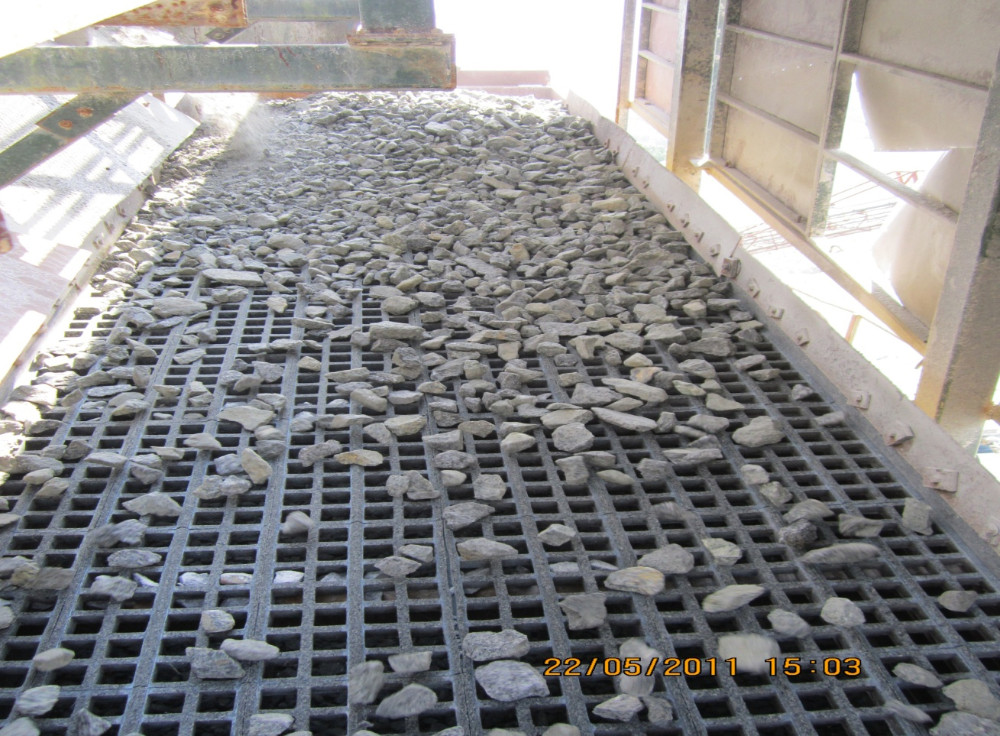

Practically no blinding and pegging with Modumesh screen media.

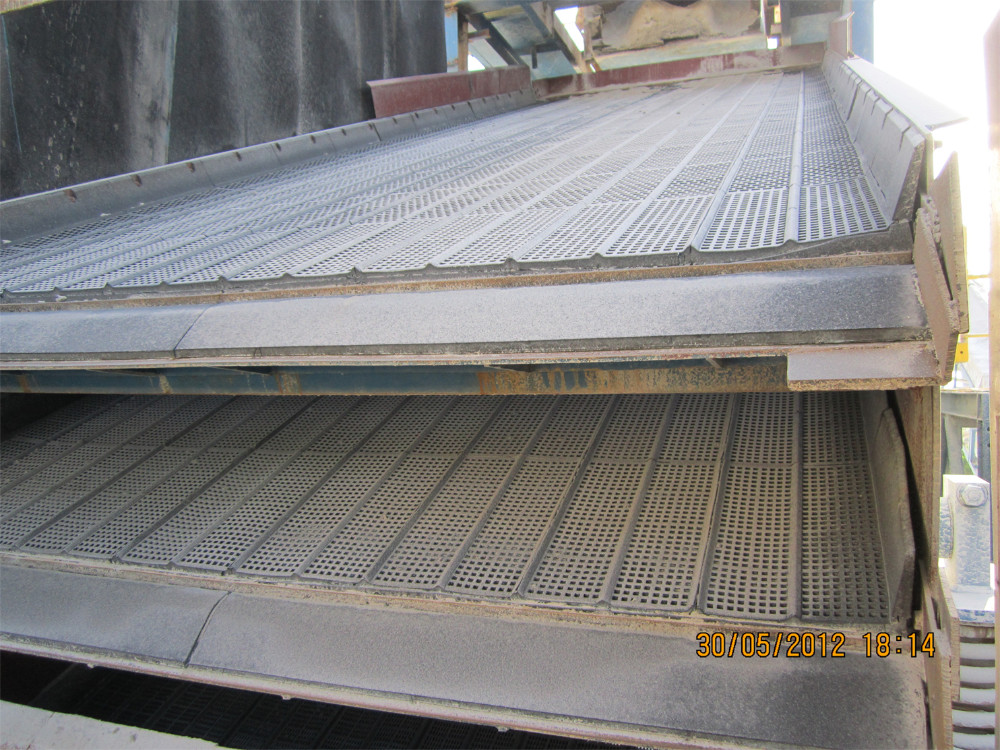

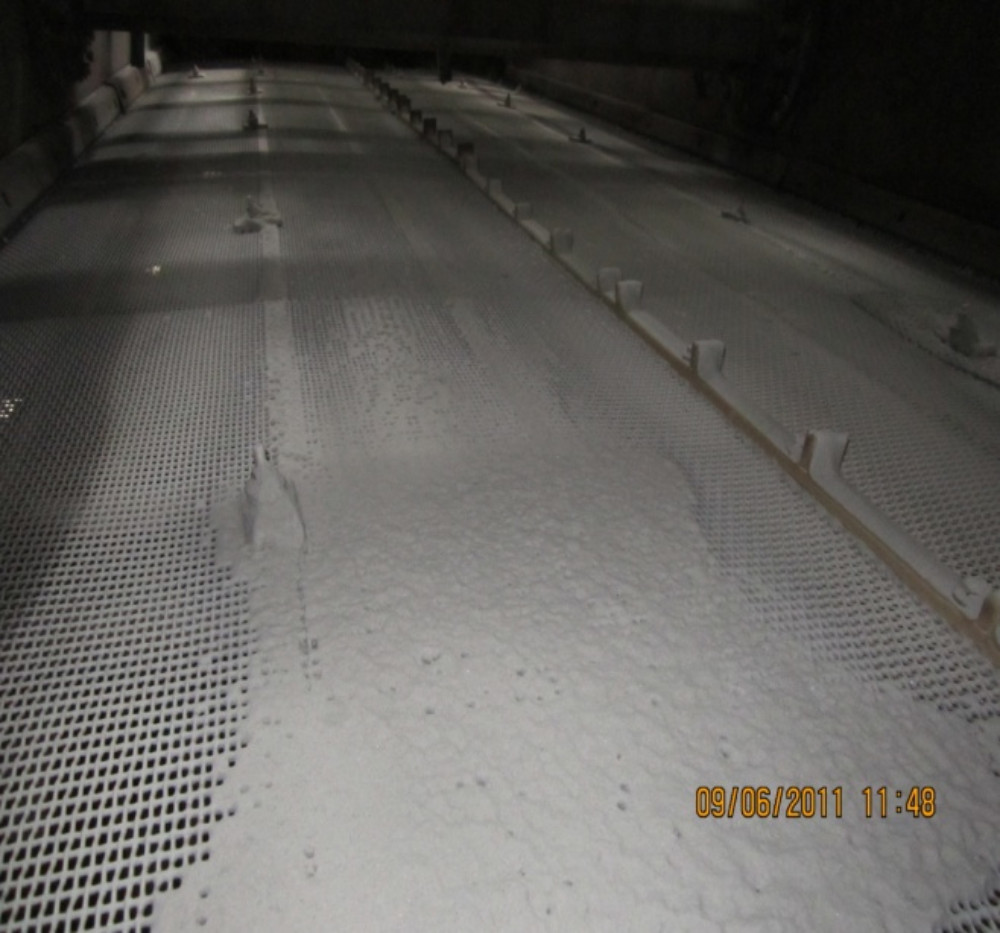

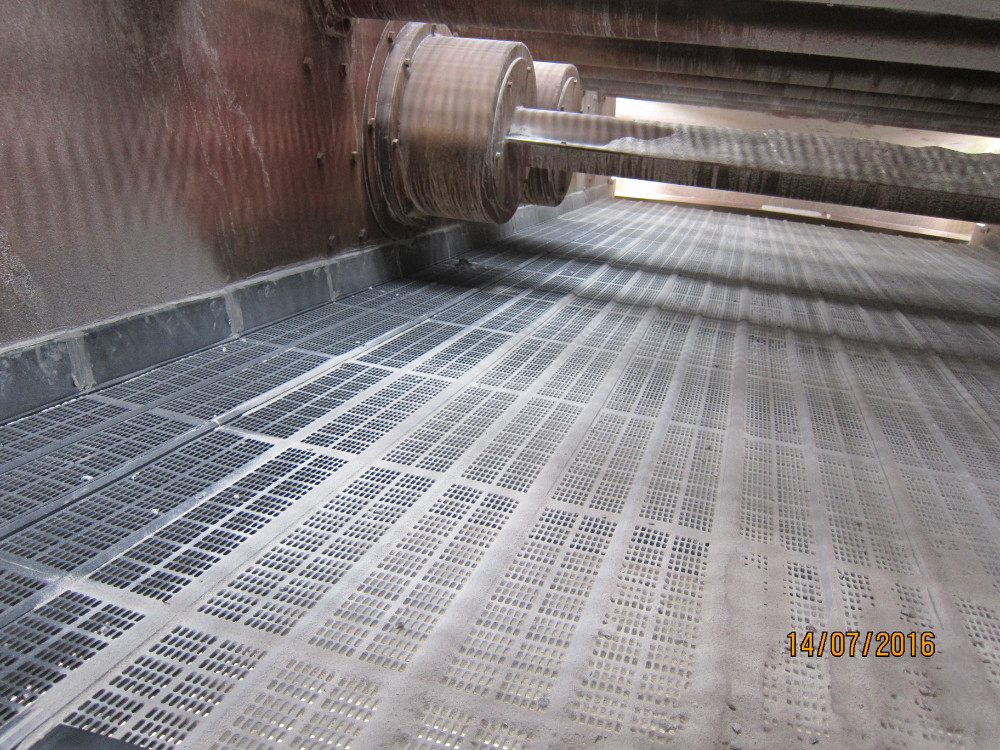

5mm separation with Modumesh system for 3.0m x 7.5m screen size at Holcim Malaysia.

• Modumesh manufactured with injection moulding process gives more precise hole dimension.
• Modumesh panel is built in with flow diverters which funnel the materials towards the holes and help to align the material flow along the screen length.
• Tapered hole design minimize chances of pegging compare to hour glass profile of punched screen cloth.
• Higher percentage of effective open area means higher screening efficiency.
• Uneven wear rate cost expensive replacement of full width tensioned screen cloth whereas Modumesh system only needs to change a small section of worn panels.
• Maintenance free as Modumesh system does not need to tension throughout the working life span.
• Modumesh design incorporate with rubber side liners which protect the expensive side plate of screen machine.
• Cost saving and fewer spare parts because there are no clamping bars, central attachments, hooks, tensioning bolts and rubber channel.
• Mix the different apertures to meet the products specifications.
• Easier and faster installation with Modumesh system.
