It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
.png)
(2).png) |
|
|
.png) |
The operating area adopts a 304 stainless steel design to prevent high temperature cutting sparks from damaging the machine's surface .
.png)
Ipad design screen, has a vertical screen display, different from the traditional horizontal screen display with good response speed, higher contrast, wider view, low power consumption as well as high resolution.
In addition, it possesses high brightness levels and lower reflectivity as well as solid glass panel sturdiness and durability.
.png)
| Machine model | LF3015LN |
| Laser power | 1000W 2000W 3000W(Optional) |
| Dimensions | 4440* 2500* 1860mm |
| Working area | 3000mm x 1500mm 4500mm*1500mm |
| Repeat positioning accuracy | ±0.02mm |
| Maximum speed | 80m/min |
| Max. acceleration | 1.0G |
| Specified voltage and frequency | 380V 50Hz/60Hz/60A |

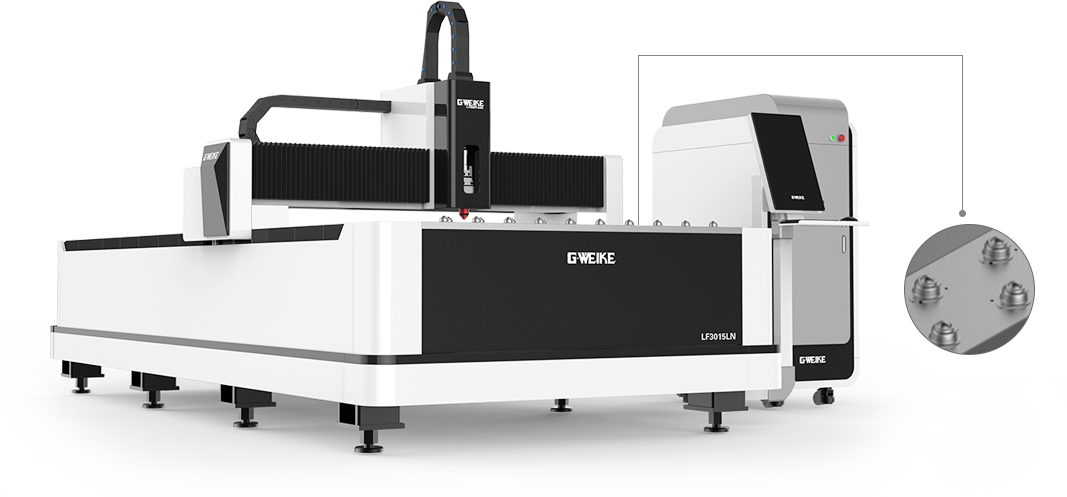

LF3015LN fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.

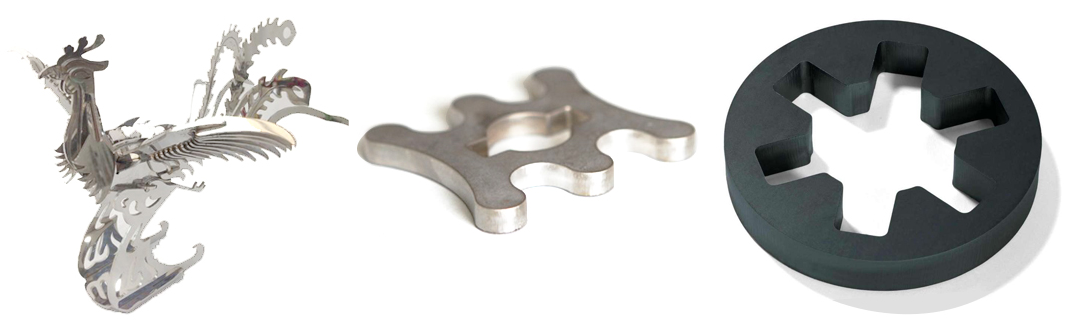

Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.
