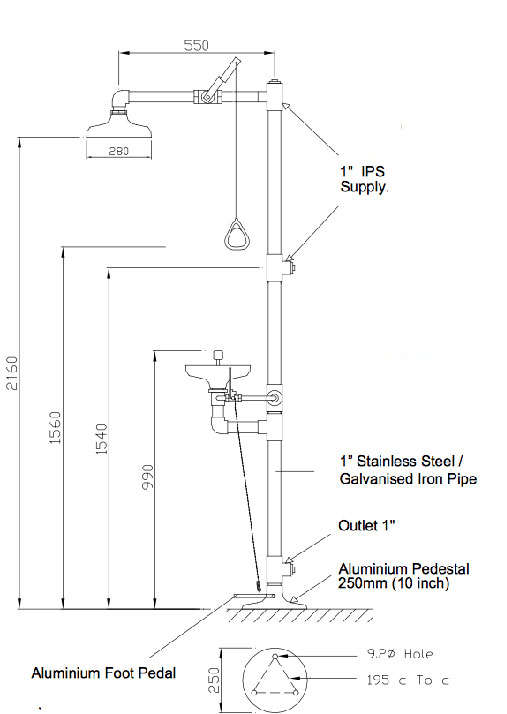

Method Floor Mounted Combination Unit of Drench Shower & Eyewash with Stainless Steel Bowls c/w Foot Pedal

Model Number:
ECB 10022SS, GIC 10022SS

Features

• Shower & Eyewash Bowl: 280mm / 11″ bowl is matted stainless steel for long lasting use and recommended for outdoor installation
• Eyewash Assembly: Stainless steel with ABS sprayheads assembly with twin soft-flow eyewash heads & instant flip-open protective dust-cover. The built-in automatic pressure compensating valve assures safe steady flow under varying water supply conditions. Sprayheads also include a filter to protect users against particles from the water flow which may be damaging to the eyes and face
• Control Valve: 1″ fast-action stainless steel ball valve is used for the shower assembly with the stainless steel pull rod. 1/2″ fast-action stainless steel ball valve is used for the eyewash assembly with the stainless steel push plate
• Pedestal: 250mm / 10″ aluminium pedestal with 3 mounting holes for 9mm bolts, Pedestal is brightly epoxy powder coated in yellow
• Pipe and Fitting: 1″ Stainless steel pipe with bright yellow epoxy powder coated
• Water Supply and Waste: 1″ IPS
• Standard Pipe Threads: Accordance to BS 21 or DIN 259
• Certified: ANSI / SEA Z358.1 – 2009 & AS 4775-2007
