| No. | Description | MODEL | ||||
| HT200/HT210 | CP200/CP400 | CP600 | CP700 | CP800 | ||
| 1 | Max. Water temperature | 80°C | - | - | - | - |
| 2 | Suction and Discharge port | 1" BSP | 2" BSP (in) 1.5" (out) | |||
| 3 | Solid Cast Iron casing and | Yes | ||||
| Stainless Steel shaft | ||||||
| 4 | Neoprene Mechanical Seal | Yes | ||||
| Carbon/Ceramic Wear face | ||||||
| 5 | Motor thermal protection | Yes | ||||
| TEFC, IP55 | ||||||
| 6 | Non-Corrosive Impeller | Brass | (Nylon) moulded sonic welded with seal flushing vane | |||

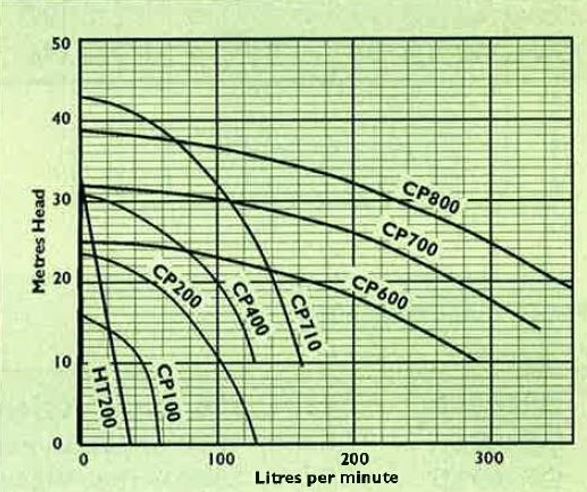

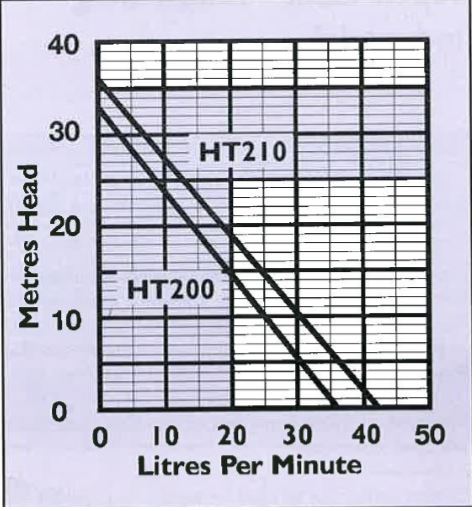

| Model | Power | Head (meter) | 5 | 10 | 15 | 20 | 25 | 30 |
| HT200 | 400W | Flow rate (liter/min) | 35 | 25 | 20 | 14 | 9 | 4 |
| HT210 | 500W | 42 | 30 | 26 | 19 | 13 | 7 | |
| CP200 | 550W | 110 | 100 | 80 | 42 | - | - | |
| CP400 | 1000W | - | 125 | 115 | 95 | 65 | 15 | |
| CP600 | 1100W | - | 290 | 240 | 170 | - | - | |
| CP700 | 1500W | - | 360 | 320 | 280 | 210 | 100 | |
| CP800 | 2400W | - | 400 | 390 | 325 | 300 | 230 |
