Swan Oil Less Air Compressor 10HP, 8Bar, 885L/min, 250kg SDU-310

Penerangan

Description

Model: SDU-310

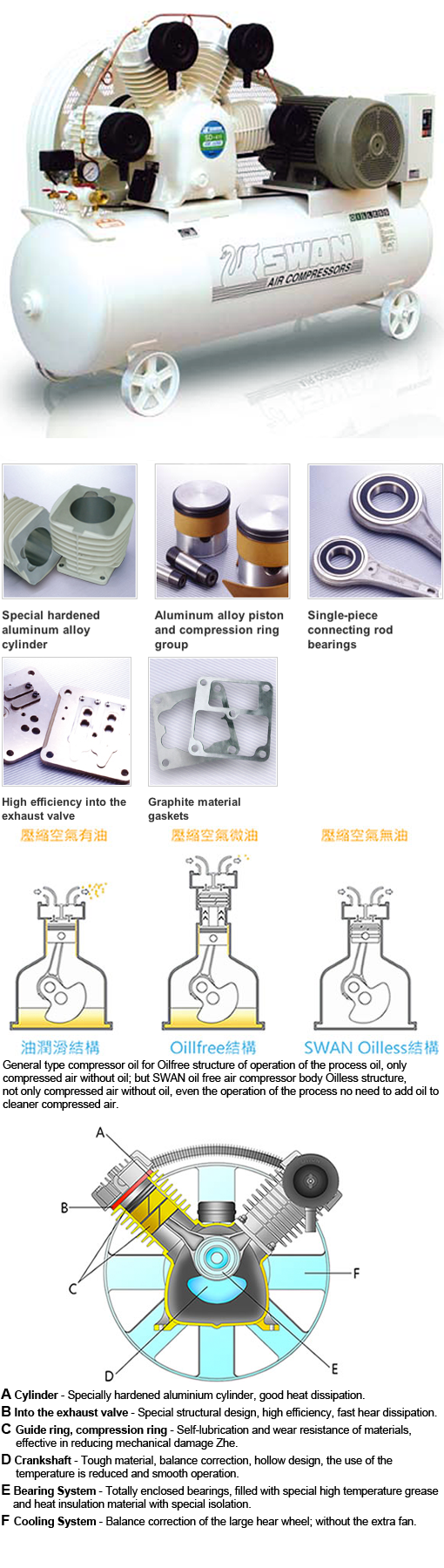

The SWAN exclusive patented oil free air compressor body, the real oil Oilless structural design, Oil-free clean compressed air, greatly reduce the cost of the Clean Air System, To provide better air quality. Environmental protection, without the addition of lubricants, oil-free clean compressed air quality, suited to the needs of the electronics, hospitals, laboratories, food manufacturing industry.

Features

• No oil in the compressor. Completely eliminate oil from the compressed air system.
• Low maintenance and less operational costs.
• Air receiver made by stainless steel or painted with powder coating for rustproof.
• Various options for different application.
• The best solution for Pure, oil-less quality air.

Control System

• Pressure Switch System 'P' Type
  The automatic pressure switch will stop and restart the compressor according to air demand.
  It is normally recommended for intermittent operation and smaller compressor units.

Specifications

Motor	10 hp
Working Pressure (kg/cm²)	8 Bar
Compressor Speed	850 rpm
F.A.D	885 L/min
Tank Capacity	300 Liter
Compressor Block Physical Dimension (L x W x H)	720mm x 480mm x 680mm
Weight (Bare Head only)	90kg
Compressor Unit Physical Dimension (L x W x H)	1750mm x 650mm x 1300mm
Weight (Whole Unit)	250kg
