Air Compressor (Screw Type)
Swan Screw Air Comp 13Bar, 8.6m3/min, 75HP, 2", 1850kg TS-55V
Swan Screw Air Comp 13Bar, 8.6m3/min, 75HP, 2", 1850kg TS-55V



Swan Screw Air Comp 13Bar, 8.6m3/min, 75HP, 2", 1850kg TS-55V

HLH Welding Supply flag
Kategori: Air Compressor (Screw Type) Tersedia
Untuk maklumat lanjut, lawati laman web rasmi kami di hlhwelding.com
Lawati Laman Web Rasmi Hubungi kami
Penerangan

Description

Model: TS-55V

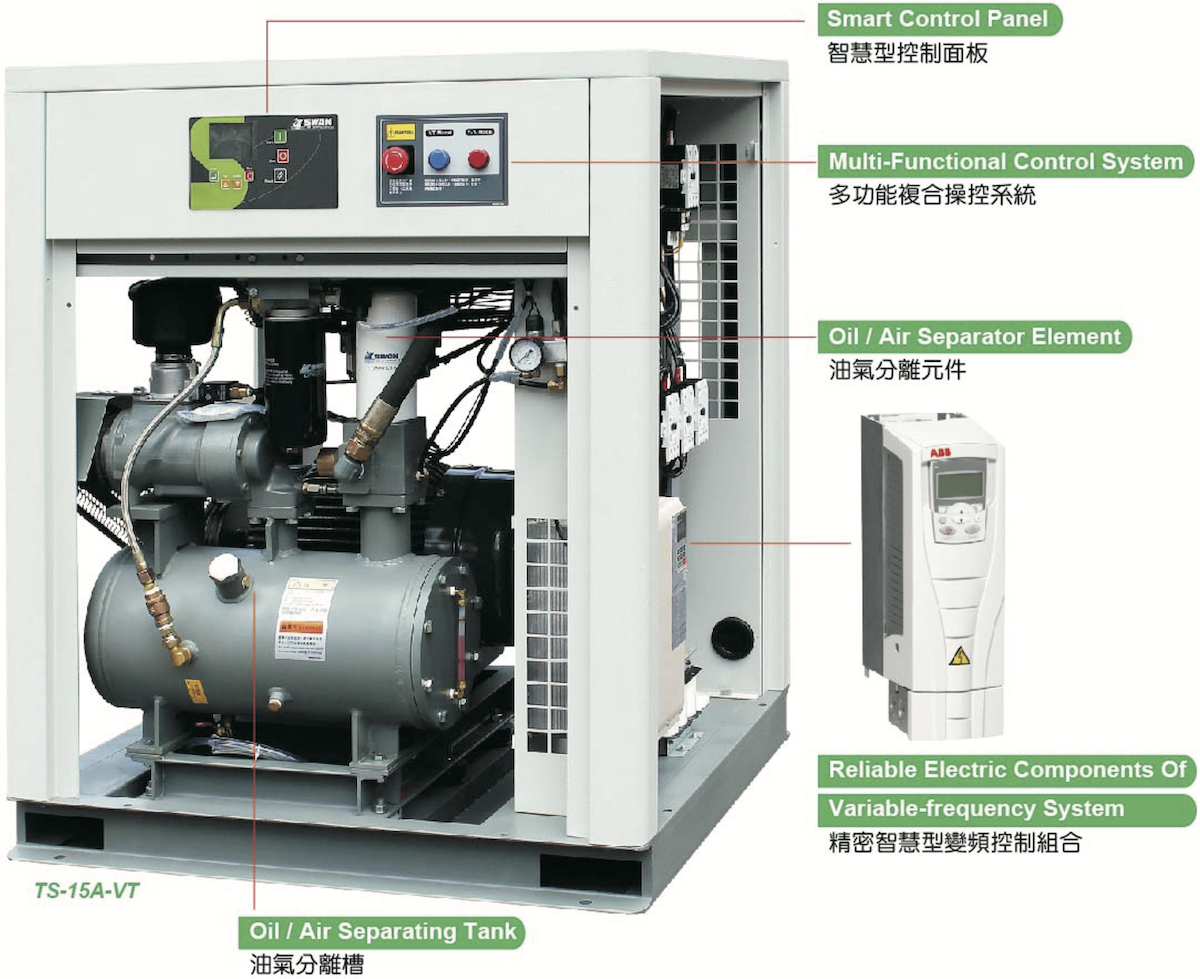

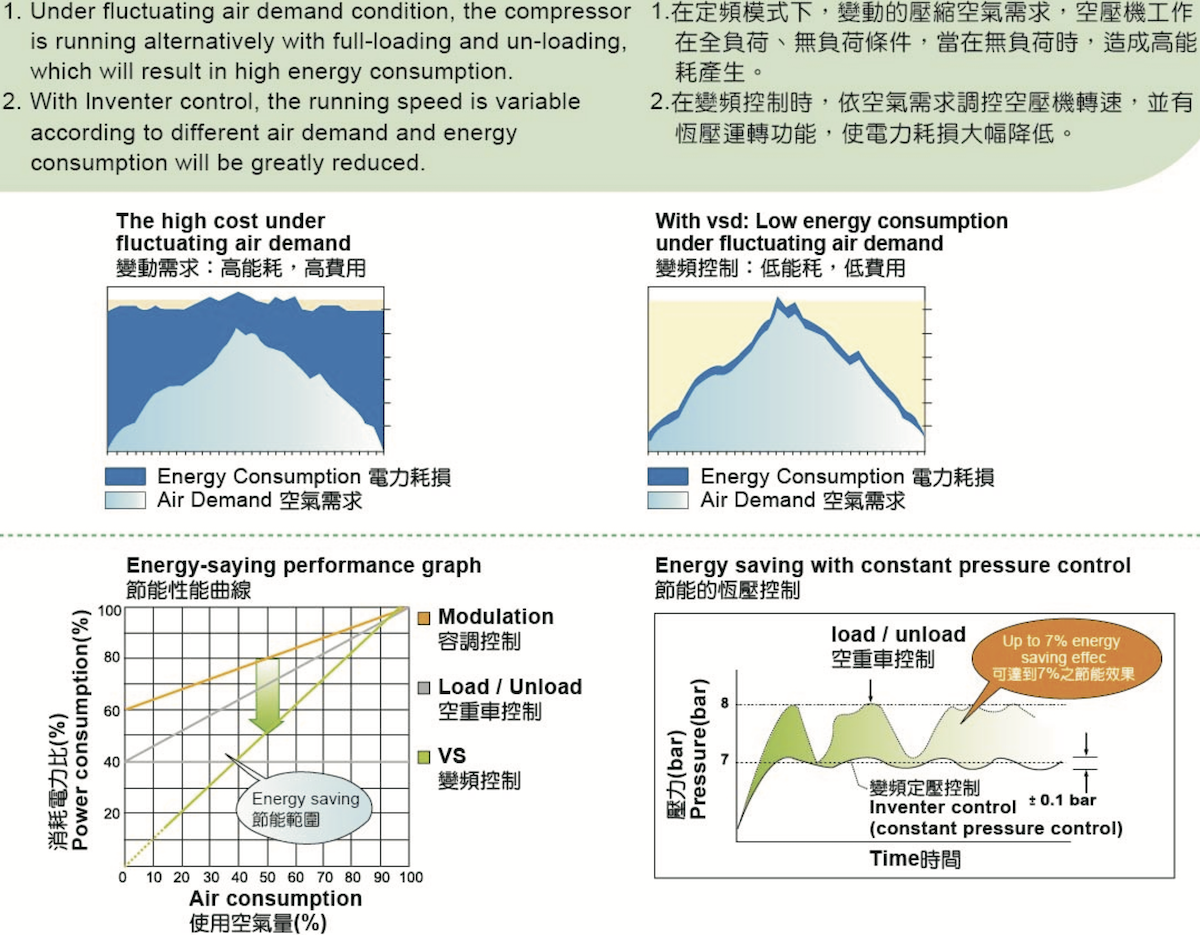

An inverter driven compressor: Max 13Bar, Max 8.6m3/min, 75HP.

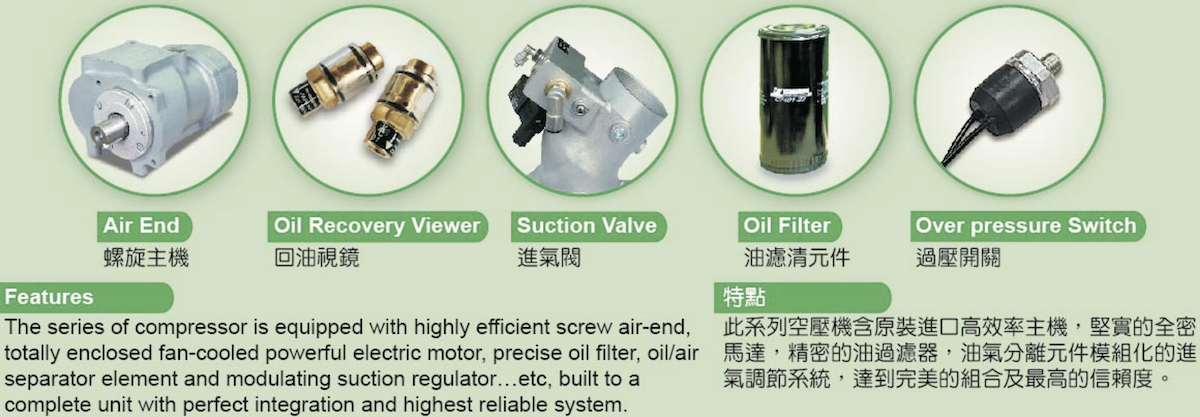

Features

Specifications

Suction Conditions ATM, 2°C~45°C
Discharge Conditions 8.5, 10, 13 Bar
Discharge Air Temperature  Environmental Temp +13°C
Frequency 50 Hz, 3phase
F.A.D. a) 8.5 Bar @ 8.6m3
b) 10 Bar @ 7.8m3
c) 13 Bar @ 6.6m3
Motor Output 55kW (75HP)
Cooling Air-cooled
Drive System Belt Drive
Noise Level +/- 76dB(A)
Air Delivery Connection 2'
Dimensions (L x W x H) 2000mm x 1400mm x 1650mm
Weight 1850kg

Optional Accessories (Please send in email to request for price)
