10.8 - 12V Peak Cordless Impact Driver
WH12DD

Super Easy to Work with

Versatile and Compact with the Shortest* Head in its Class
As of November 2018, among 10.8V cordless impact drivers made by leading power tool manufacturers. (Survey by Koki Holdings)

Runtime per Charge ^*

Approx. 500 Wood Screws
ø3.8 x 50mm screws in lauan without pilot holes
With the BSL1240M battery. The values are shown for reference purposes. They may vary according to conditions.

Other Features

3 Tightening Modes (Soft / Power / Self-drilling Screw)
LED Light

12V PEAK
Slide Lithium-Ion Batteries

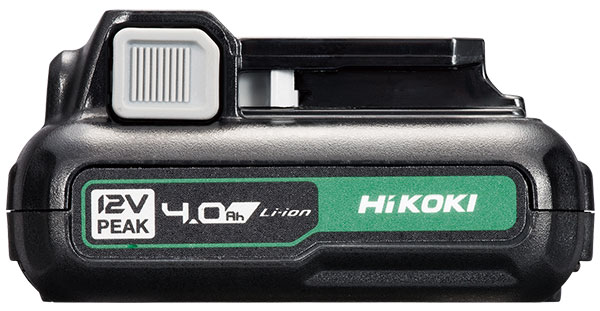

4.0Ah / BSL1240M
High-Capacity

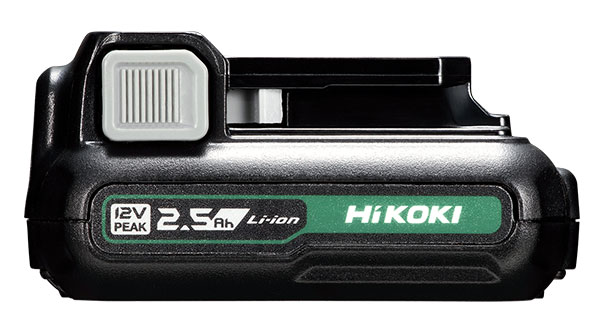

2.5Ah / BSL1225M

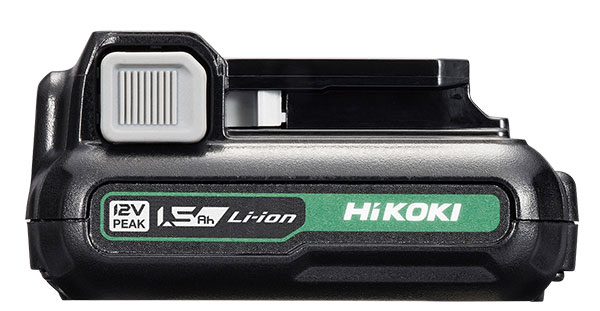

1.5Ah / BSL1215

Lightweight. Compact. High-Capacity*.
Applies to the BSL1240M.

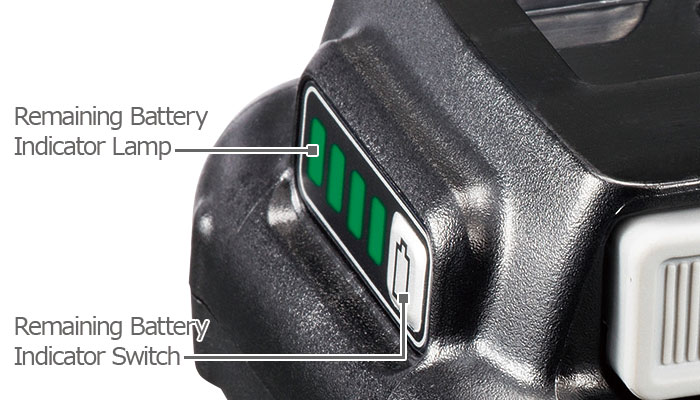

Clear Battery Status Indication (BSL1240M / BSL1225M only)

The remaining battery indicator lamp shows not only charge level but also battery overheating and failure when they occur.

Indicator Lamp	Solid	Solid	Solid		Solid	Flashing
Battery Charge State	75% and above	50% - below 75%	25% - below 50%		Below 25%	0%
Indicator Lamp	Flashing			Flashing
Battery Charge State	Output suspended due to high temperature*1			Output suspended due to failure*2

Remove the battery from the tool and allow it to cool down fully.
The problem may be with the battery so please contact your dealer.

Class-leading* Charging Speed

Approx. 60min with BSL1240M Battery
Approx. 37min with BSL1225M Battery
Approx. 22min with BSL1215 Battery

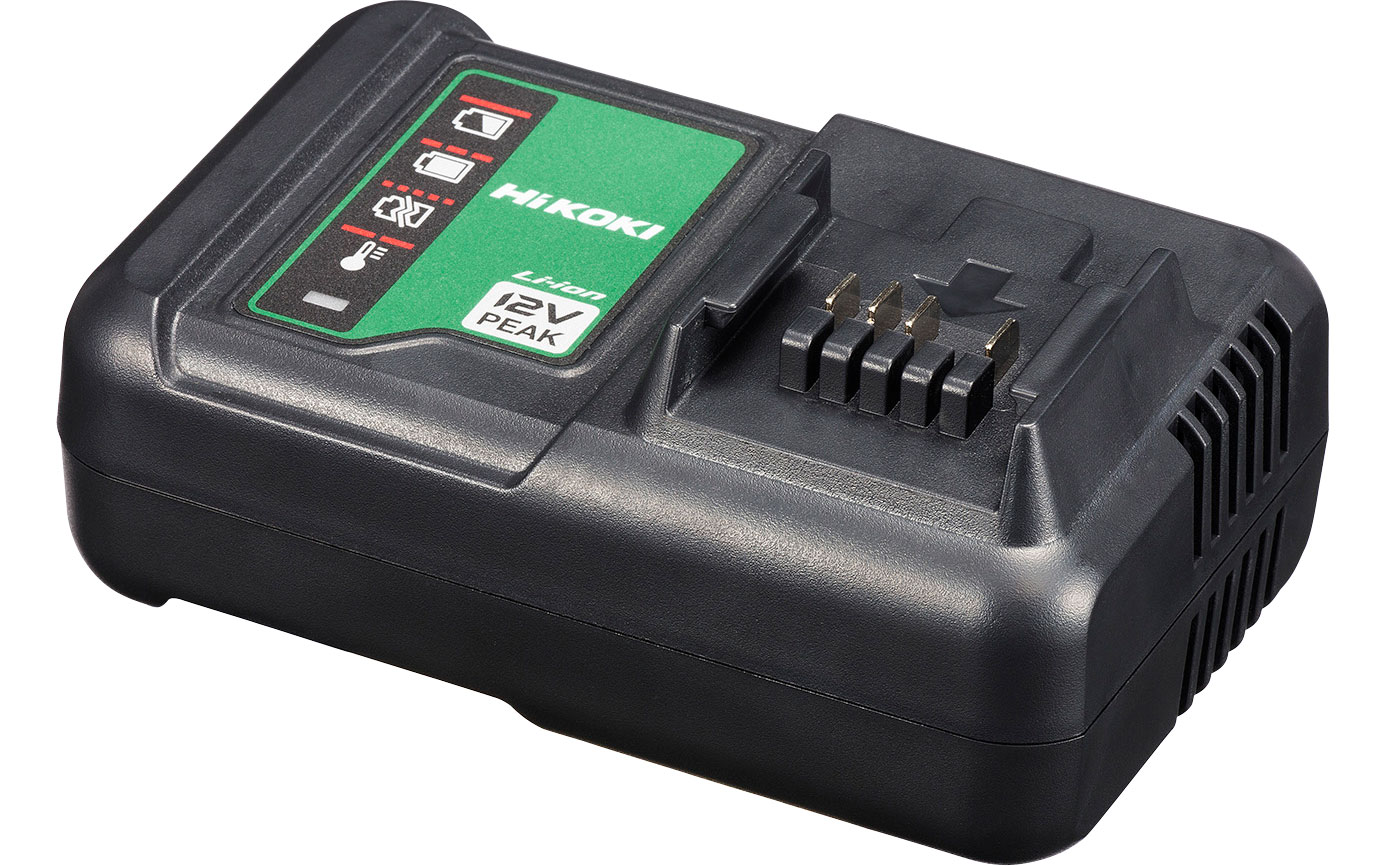

UC12SL
Fast Charger

As of November 2018, among 10.8V slide Lithium-ion batteries made by leading power tool manufacturers. (Survey by Koki Holdings)

BSL1240M / BSL1225M / BSL1215 12V Peak Slide Lithium-ion Battery

Model	BSL1240M	BSL1225M	BSL1215
Voltage	10.8 - 12V Peak
Capacity	4.0Ah	2.5Ah	1.5Ah
Charging Time at 20℃*	Approx. 60min (with UC12SL)	Approx. 37min (with UC12SL)	Approx. 22min (with UC12SL)
Dimensions (L x H x W)	91 x 45 x 74mm	86 x 42 x 65mm	86 x 42 x 65mm
Compatible Charger	UC12SL

The charging time may vary depending on the operating conditions and battery state.

Specifications

Drive		6.35mm
Capacity	Small Screw	4 - 8mm
	Ordinary Bolt	5 - 14mm
	High Tension Bolt	5 - 12mm
	Self Drilling Screw	ø3.5 - ø5mm
Tightening Torque		135Nm
Battery Voltage		10.8 - 12V Peak
No Load Speed	Soft Mode	0 - 1,300/min
	Power Mode	0 - 3,200min
	Self-drilling Screw Mode	0 - 3,200min
Impact Rate	Soft Mode	0 - 2,500/min
	Power Mode	0 - 4,000min
	Self-drilling Screw Mode	0 - 4,000min
Overall Length		134mm
Weight *1		1.1kg
Standard Accessories *2		2 Batteries (BSL1240M), Charger (UC12SL), Battery Cover, Carrying Case

According to EPTA-Procedure 01/2014.
Standard accessories vary by country or area.

Warranty: 1 Year
