Haimer Solid carbide end mills

Penerangan

Universal solid carbide end mill for a broad range of applications

• Available with Straight shank (HA), Safe-Lock shank (S-λ) or Weldon shank (HB)
• Shank tolerance: h6
• Neck for higher cutting depth
• Center cutting
• Unequal cutting edge
• Runout < 10 µm
• For almost all materials
• For roughing and finishing
• For ramping, drilling and slotting

Cooling with Cool Jet or Cool Flash and using Power Chucks is recommended for higher tool life and high removal rate.

Technical data subject to change without prior notice.

Characteristics

Helix angle 31/33°

Corner chamfer 45°

Teeth 4

Straight shank (HA)

Safe-Lock™ (S-λ)

Weldon (HB)

Application

Feed direction (Side milling, Ramping, Driling)

Ramping

Slotting

Side milling

Drilling

Coolant

Emulsion

Cold air

Dry machining

Minimal lubrication

Application Range - Material

Main Material:
Steel
All types of steel and cast steel, with the exception of steel with an austenitic structure

Also suitable for:

Stainless steel
Stainless austenitic steel and austenitic-ferritic steel and cast steel

Cast iron
Grey cast iron, cast iron with spheroidal graphite, malleable cast iron, cast iron with vermicular graphite

High temperature alloys and titanium alloys
Heat resisting special alloys based on iron, nickel and cobalt, titanium and titanium alloys

NF metals
Aluminium and other non-ferrous metals, non ferrous materials

Hard materials
Hardened steel, hardened cast iron materials, chilled cast iron

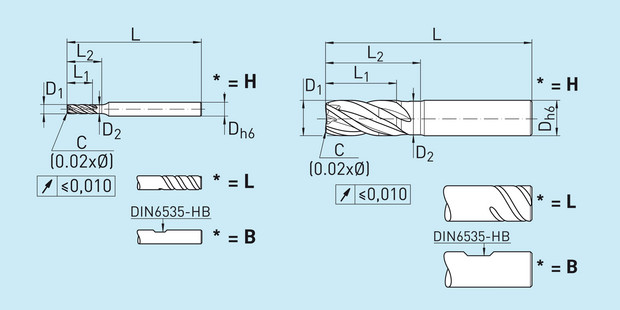

Technical drawing



Technical data

Order No.	D1 (f9) [mm]	Cutting edge	Size [mm]	L1 max. [mm]	L [mm]	L2 [mm]	D2 [mm]	D (h6) [mm]	Shank	HAIMER quality
F2004NNH0200CDA	2,00	C	0,04	7	58	9	1,9	6	HA	DA
F2004NNL0200CDA	2,00	C	0,04	7	58	9	1,9	6	S-λ	DA
F2004NNB0200CDA	2,00	C	0,04	7	58	9	1,9	6	HB	DA
F2004NNH0300CDA	3,00	C	0,06	8	58	10	2,9	6	HA	DA
F2004NNL0300CDA	3,00	C	0,06	8	58	10	2,9	6	S-λ	DA
F2004NNB0300CDA	3,00	C	0,06	8	58	10	2,9	6	HB	DA
F2004NNH0400CDA	4.00	C	0.08	11	58	15	3.8	6	HA	DA
F2004NNL0400CDA	4.00	C	0.08	11	58	15	3.8	6	S-λ	DA
F2004NNB0400CDA	4.00	C	0.08	11	58	15	3.8	6	HB	DA
F2004NNH0500CDA	5.00	C	0.10	13	58	18	4.8	6	HA	DA
F2004NNL0500CDA	5.00	C	0.10	13	58	18	4.8	6	S-λ	DA
F2004NNB0500CDA	5.00	C	0.10	13	58	18	4.8	6	HB	DA
F2004NNH0600CDA	6.00	C	0.12	13	58	20	5.7	6	HA	DA
F2004NNL0600CDA	6.00	C	0.12	13	58	20	5.7	6	S-λ	DA
F2004NNB0600CDA	6.00	C	0.12	13	58	20	5.7	6	HB	DA
F2004NNH0800CDA	8.00	C	0.16	19	64	26	7.6	8	HA	DA
F2004NNL0800CDA	8.00	C	0.16	19	64	26	7.6	8	S-λ	DA
F2004NNB0800CDA	8.00	C	0.16	19	64	26	7.6	8	HB	DA
F2004NNH1000CDA	10.00	C	0.20	22	73	30.5	9.5	10	HA	DA
F2004NNL1000CDA	10.00	C	0.20	22	73	30.5	9.5	10	S-λ	DA
F2004NNB1000CDA	10.00	C	0.20	22	73	30.5	9.5	10	HB	DA
F2004NNH1200CDA	12.00	C	0.24	26	84	36.5	11.4	12	HA	DA
F2004NNL1200CDA	12.00	C	0.24	26	84	36.5	11.4	12	S-λ	DA
F2004NNB1200CDA	12.00	C	0.24	26	84	36.5	11.4	12	HB	DA
F2004NNH1400CDA	14.00	C	0.28	26	84	36.5	13.3	14	HA	DA
F2004NNL1400CDA	14.00	C	0.28	26	84	36.5	13.3	14	S-λ	DA
F2004NNB1400CDA	14.00	C	0.28	26	84	36.5	13.3	14	HB	DA
F2004NNH1600CDA	16.00	C	0.32	32	93	42.5	15.2	16	HA	DA
F2004NNL1600CDA	16.00	C	0.32	32	93	42.5	15.2	16	S-λ	DA
F2004NNB1600CDA	16.00	C	0.32	32	93	42.5	15.2	16	HB	DA
F2004NNH1800CDA	18.00	C	0.36	32	93	42.5	17.1	18	HA	DA
F2004NNL1800CDA	18.00	C	0.36	32	93	42.5	17.1	18	S-λ	DA
F2004NNB1800CDA	18.00	C	0.36	32	93	42.5	17.1	18	HB	DA
F2004NNH2000CDA	20.00	C	0.40	38	105	52	19	20	HA	DA
F2004NNL2000CDA	20.00	C	0.40	38	105	52	19	20	S-λ	DA
F2004NNB2000CDA	20.00	C	0.40	38	105	52	19	20	HB	DA
