Shrink fit machine Power Clamp Nano

The HAIMER Power Clamp Nano is your entry into the world of micro machining.

The Nano was specifically developed for small interfaces, i.e. HSK 25 – HSK 63 and SK/BT 30/40. The horizontal design ensures easy handling especially at tools with smaller diameters. By its modular system construction HAIMER Power Clamp Nano fullfils the various customer requirements very well.

• Innovative handling for smallest tools by horizontal shrinking
• Ideal for shrink fit chucks with an extra slim geometry, solid carbide and HSS
• Tool-support for HSK 25 - HSK 63 and SK/BT 30/40
• Modular system with upgrade is possible

Included in delivery: Shrink fit machine Power Clamp Nano

Technical data subject to change without prior notice.

System cart (optional) Trolley for shrinking machine and accessories For a clear and tidy work space Ergonomic work height Everything at hand Optional: Drawers with inserts to store accessories

Equipment

Coil N29

Especially designed for smaller diameters.

Equipment options

	Coil N20 Order no. 80.161.10 & 80.162.10.00 For nonmagnetic steel
	Air cooling Nano Order no. 80.164.00 Cooling by compressed air, regardless of conture and safest handling for small tool holders.
	Irrigation nozzle small Order no. 80.164.02 Irrigation nozzle small for Mini-Shrink chucks Ø 3 - 12 mm.
	Chuck support for tool holders with bajonet clamping Order no. Available for all actual tapers.

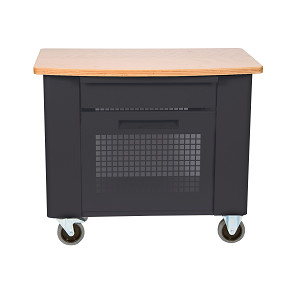

	System cart Order no. 80.124.00.4 Trolley for shrinking machine and accessories.
	Drawer insert for system cart Order no. 80.124.04 For a clear and tidy work space.
	Length presetting for Power Clamp Nano Order no. 80.165.00 Horizontal length presetting unit.
	Calibration adapter Nano Order no. 80.165.01 For resetting of the length presetting.
	Set of clips Nano Ø 3 - 12 mm Order no. 80.166.00 For safest and precise handling of high quality carbide tools.

Technical data

Power [kW]	13
Mains voltage	3 x 400–480 Volt, 16 Ampere, 13 kW
Maximum length of shrink fit chuck [mm]	230
Dimensions [mm]	750 x 620 x 650
Weight [kg]	75
Tools	Solid carbide and HSS
Tool diameter [mm]	3 - 16
