The 3D-Sensor New Generation is a further development of our worldwide accepted and proven Universal 3D-Sensor. Its distinguishing features are improved mechanics and a new and compact design.
Advantages:
-
Compact and easy to grip casing, no restriction to working area
-
Precise display of spindle position with large 1/100 mm dial gauge (2 hands)
-
Utmost precision of 0.01 mm
-
Marked overrun distance (safety distance)
-
IP 67 waterproof
Functions:
-
Aligning machine spindles to work piece edges and reference edges (X-, Y-, Z-axis)
-
Set zeros
-
Centre borings and shafts
-
Measuring lengths and depths
-
Checking straightness and levelness of surfaces
-
Aligning work pieces and vices
-
Quick, without calculations, no mistakes with algebraic signs
Please take note: The given measuring precision of 0.01 mm only applies, if the original HAIMER probe tips are used.
Included in delivery: 3D-Sensor New Generation with clamping shank Ø 12 mm, short probe tip Ø 4 mm
Technical data subject to change without prior notice.
 |
Probe tips

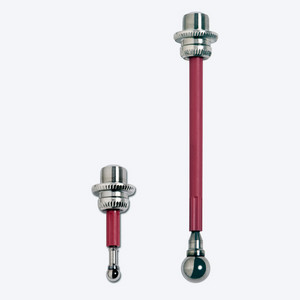

The sensors can be equipped with a short (ball Ø 4 mm) and a long (ball Ø 8 mm) probe tip. The probe tips may be changed without any tool, no re-calibration of the unit is needed.
The probe tips of course are compatible to all HAIMER 3D-Sensors. |
Technical drawing
Technical Data
|
L1 [mm] |
101 |
|
L2 [mm] |
25 |
|
Ø D1 [mm] |
12 |
|
Ø D2 [mm] |
4 |
|
B [mm] |
62 |
|
Smallest unit of measure [mm] |
0,01 |
