PURE COPPER TIN PLATED CABLE LUG

Product Description

The Pure Copper Tin Plated Cable Lug is made up with high quality 99.95% original pure copper (Cu) with its finishing to be electroplated with tin (Sn) to prevent any form of corrosion to happen. They are desinged to be ready to use with a pre-measured flux and solder within a tin-plated copper connector. Our product provides a top notch quality, consistent connection, very strong mechanical properties, and very reliable. The cable lugs are suitable for corrosive environments and destructive vibration environments.

Compliance: Brittish Standard (B.S), Japan (JLS), Germany (DIN) and United State of America (USA)

Product Specification

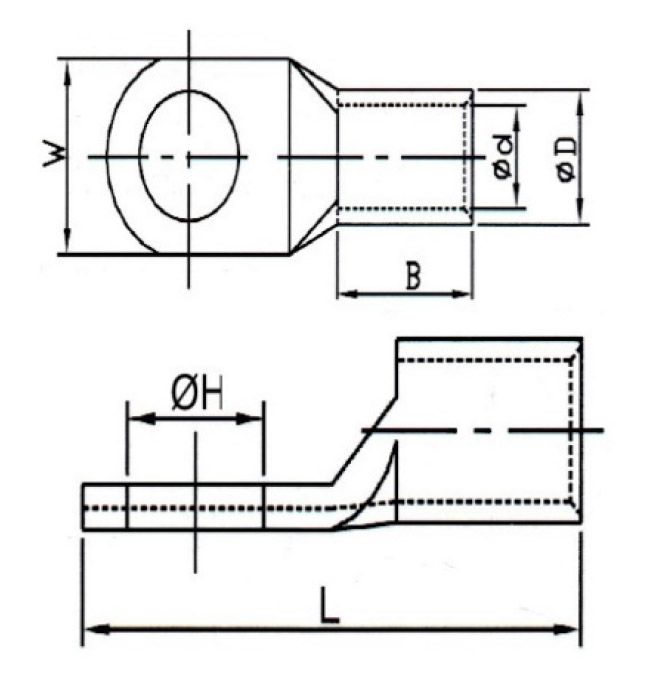

Item Code	Size (mm2)	Hole Size		Dimensions (mm)
Item Code	Size (mm2)		ØH	W	B	L	ØD	Ød
DSSB-CNT-LUG1.5M5	1.5	M5	5.2mm	8.5	6.0	18.5	3.5	2.5
DSSB-CNT-LUG2.5M5	2.5	M5	5.2mm	10.0	7.0	20.0	4.0	3.0
DSSB-CNT-SSLUG2.5M6		M6	6.4mm	10.0	7.0	20.0	4.0	3.0
DSSB-CNT-SSLUG2.5M8		M8	8.4mm	12.5	7.0	23.0	4.0	3.0
DSSB-CNT-SSLUG4M5	4.0	M5	5.2mm	9.0	8.0	21.5	4.8	3.5
DSSB-CNT-LUG4.0M6		M6	6.4mm	9.0	8.0	21.5	4.8	3.5
DSSB-CNT-SSLUG4.0M8		M8	8.4mm	11.5	8.0	21.0	4.8	3.5
DSSB-CNT-LUG6M6	6.0	M6	6.4mm	9.0	9.0	25.0	5.5	4.1
DSSB-CNT-SSLUG6.0M8		M8	8.4mm	11.0	8.0	25.0	5.5	4.1
DSSB-CNT-SSLUG6.0M10		M10	10.5mm	15.0	9.0	28.0	5.5	4.1
DSSB-CNT-LUG10M6	10.0	M6	6.4mm	10.0	9.0	25.0	6.7	5.0
DSSB-CNT-SSLUG10M8		M8	8.4mm	12.0	9.0	25.5	6.7	5.0
DSSB-CNT-SSLUG10M10		M10	10.5mm	14.5	11.0	28.5	6.7	5.0
DSSB-CNT-SSLUG16M6	16.0	M6	6.4mm	11.0	11.5	30.0	7.5	5.8
DSSB-CNT-LUG16M8		M8	8.4mm	12.0	11.5	30.0	7.5	5.8
DSSB-CNT-SSLUG16M10		M10	10.5mm	14.5	11.5	31.0	7.5	5.8
DSSB-CNT-SSLUG16M12		M12	12.5mm	17.5	11.5	32.0	7.5	5.8
DSSB-CNT-SSLUG25M6	25.0	M6	6.4mm	13.5	12.0	32.0	9.0	7.2
DSSB-CNT-LUG25M8		M8	8.4mm	13.5	12.0	32.0	9.0	7.2
DSSB-CNT-SSLUG25M10		M10	10.5mm	13.5	12.0	32.0	9.0	7.2
DSSB-CNT-SSLUG25M12		M12	12.5mm	18.0	12.0	35.0	9.0	7.2
DSSB-CNT-SSLUG35M6	35.0	M6	6.4mm	15.5	16.0	37.5	10.5	8.5
DSSB-CNT-SSLUG35M8		M8	8.4mm	15.5	16.0	37.5	10.5	8.5
DSSB-CNT-LUG35M10		M10	10.5mm	15.5	16.0	37.5	10.5	8.5
DSSB-CNT-SSLUG35M12		M12	12.5mm	16.5	16.0	38.0	10.5	8.5
DSSB-CNT-SSLUG35M16		M16	16.5mm	22.0	16.0	44.0	10.5	8.5
DSSB-CNT-SSLUG50M8	50.0	M8	8.4mm	18.4	18.0	44.5	12.5	10.1
DSSB-CNT-LUG50M10		M10	10.5mm	18.4	18.0	44.5	12.5	10.1
DSSB-CNT-SSLUG50M12		M12	12.5mm	18.4	18.0	44.5	12.5	10.1
DSSB-CNT-SSLUG70M8	70.0	M8	8.4mm	21.0	20.5	49.0	14.5	11.7
DSSB-CNT-SSLUG70M10		M10	10.5mm	21.0	20.5	49.0	14.5	11.7
DSSB-CNT-LUG70M12		M12	12.5mm	21.0	20.5	49.0	14.5	11.7
DSSB-CNT-SSLUG70M16		M16	16.5mm	21.0	20.5	49.0	14.5	11.7
DSSB-CNT-SSLUG95M8	95.0	M8	8.4mm	25.0	22.0	54.5	17.0	13.8
DSSB-CNT-SSLUG95M10		M10	10.5mm	25.0	22.0	54.5	17.0	13.8
DSSB-CNT-LUG95M12		M12	12.5mm	25.0	22.0	54.5	17.0	13.8
DSSB-CNT-SSLUG95M16		M16	16.5mm	25.0	22.0	58.0	17.0	13.8
DSSB-CNT-SSLUG120M8	120	M8	8.4mm	28.5	25.0	61.0	19.5	15.9
DSSB-CNT-SSLUG120M10		M10	10.5mm	28.5	25.0	61.0	19.5	15.9
DSSB-CNT-LUG120M12		M12	12.5mm	28.5	25.0	61.0	19.5	15.9
DSSB-CNT-SSLUG120M16		M16	16.5mm	28.5	25.0	61.0	19.5	15.9
DSSB-CNT-SSLUG150M8	150	M8	8.4mm	30.0	27.0	68.0	20.5	16.7
DSSB-CNT-SSLUG150M10		M10	10.5mm	30.0	27.0	68.0	20.5	16.7
DSSB-CNT-SSLUG150M12		M12	12.5mm	30.0	27.0	68.0	20.5	16.7
DSSB-CNT-LUG150M16		M16	16.5mm	30.0	27.0	68.0	20.5	16.7
DSSB-CNT-SSLUG185M10	185	M10	10.5mm	33.5	30.0	76.5	25.3	19.1
DSSB-CNT-SSLUG185M12		M12	12.5mm	33.5	30.0	76.5	25.3	19.1
DSSB-CNT-LUG185M16		M16	16.5mm	33.5	30.0	76.5	25.3	19.1
DSSB-CNT-SSLUG240M12	240	M12	12.5mm	38.0	33.0	88.5	26.0	21.4
DSSB-CNT-LUG240M16	240	M16	16.5mm	38.0	33.0	88.5	26.0	21.4
DSSB-CNT-LUG300M16	300	M16	16.5mm	43.0	40.0	99.0	30.0	24.6
DSSB-CNT-LUG400M16	400	M16	16.5mm	49.5	46.0	112.0	34.0	27.4
DSSB-CNT-LUG500M20	500	M20	20.5mm	55.0	51.0	122.0	38.0	30.8
DSSB-CNT-LUG630M20	630	M20	20.5mm	65.0	55.0	134.0	45.0	35.6

Product Image
