INSULATED BLADE TERMINALS (FLAT)

Product Description

Insulated Blade Terminals (Flat) is made up of 99.25% high quality pure copper (Cu), electroplated with tin (Sn) finishing to protect the component from corrosion. Wires that are stripped are inserted into the metal cradle of the blade terminals. polyvinyl-chloride (PVC) is used as the insulation material.

Compliance : British Standard (B.S), Japan (JLS), Germany (DIN) and Unites States of America (ANSI)

Product Specification

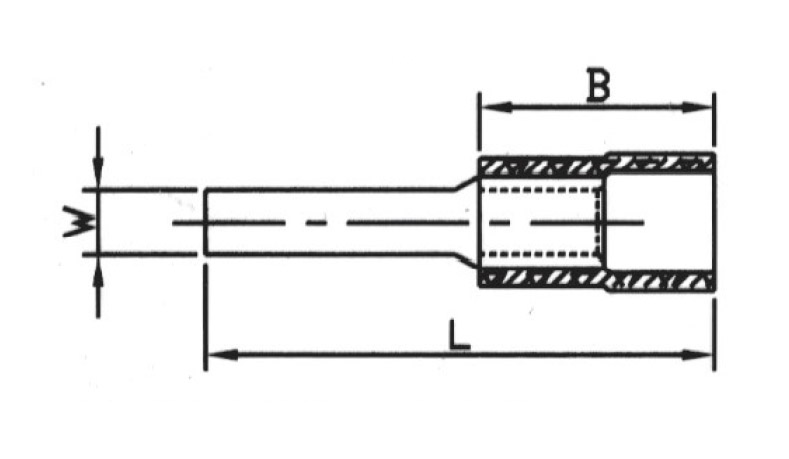

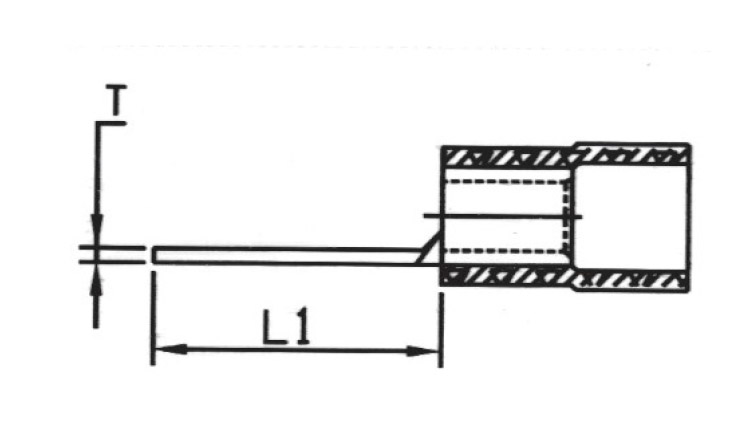

Item Code	Colour	Single (mm)	Twine (mm²)	Dimensions (mm)
Item Code	Colour	Single (mm)	Twine (mm²)	W	D	d	T	B	L
DSSB-CNT-PIN1.25F-13.0	Red	0.57 - 1.44	0.25 - 1.65	3.0	4.0	1.7	0.75	10.4	23.4
DSSB-CNT-PIN1.25F-14.5/3				3.0	4.0	1.7	0.75	10.4	24.9
DSSB-CNT-PIN1.25F-18/2.3				2.3	4.0	1.7	0.75	10.4	28.4
DSSB-CNT-PIN2F-13/3	Blue	1.44 - 1.82	1.04 - 2.63	3.0	4.6	2.3	0.75	10.4	23.4
DSSB-CNT-PIN2F-18	Blue	1.44 - 1.82	1.04 - 2.63	3.0	4.6	2.3	0.75	10.4	28.4
DSSB-CNT-PIN5.5F-14/3	Yellow	1.82 - 2.98	2.63 - 6.64	3.0	6.9	3.5	1.00	13.5	27.5
DSSB-CNT-PIN5.5F-18/3	Yellow	1.82 - 2.98	2.63 - 6.64	3.0	6.9	3.5	1.00	13.5	31.5

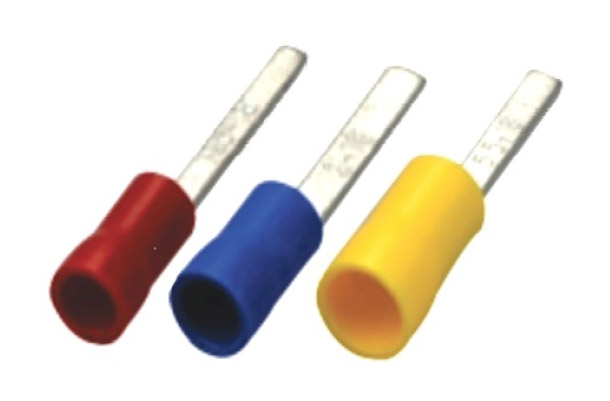

Product Image
