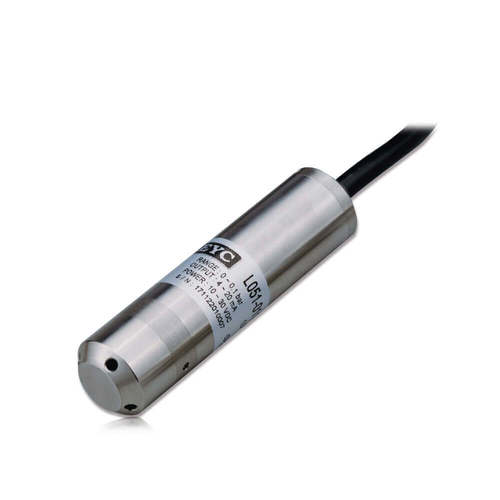

Feature : Submersible Pressure Transmitter
Input type : Level
Output : 4 ... 20 mA
Measuring range : 0 ... 10 bar
Accuracy : ± 0.5 % of F.S.
●Additional option (ILAC/TAF) Test report - Standard Calibration laboratory(TAF Accreditation: 3032)
Description
• Housing SS316 outer, diameter 27Ø.
• Compact and rugged design and easy to install.
• With reasonable price, high accuracy and good stability in a long-run.
• Cable material: PVC or PTFE.
• This submersible pressure transmitter is easy to apply in open container and rivers.
• Plunge the transmitter into the bottom of rivers and you can get level signal of lower limit and upper limit
Specificaion
Sensor type : Piezoresistive diaphragm
Input type : Level
Measuring range : 0 ... 10 bar
Cable overload range :
Pressure range : 0.5 | 1 | 2 | 5 | 10 | 20
Overload range : 2.5 | 3 | 4 | 7 | 15 | 30
Output : 4 ... 20 mA
Signal connection : 2-wire
Load resistance : [Ohm] ≤ (working voltage-10V) / 0.02A-0.15Ω x cable length(M)
Output calibration ( ZERO & SPAN ) adjustment span : ± 10 % of zero-point and full-scale
Response time ( 10 … 90 % ) : ≦5 ms
Accuracy : ± 0.5 % of F.S.
Media measured : Liquid
Working temperature : 0 ... + 50 °C
Working humidity : 0 ... 100 %RH
Storage temperature : 25 ... + 60 °C
Measuring range tolerance: ±0.2% fs /10K
Power supply : 10 ... 30 VDC
Current consumption : ≦ 21 mA
Overvoltage protection : < 33 VDC
Electric connection : Specific cable
Installation : Submersible
Protection rating : IP 68
Electric protection : ￭Polarity protection ￭Short-circuit
Certification : CE
Housing : SUS 316
Wetted part : SUS 316
Cable : PVC / PTFE
Weight ( w / o cable ) : L051: 350g
Application
Drinking water equipment / Pit sinking / Waste water plant /Big container and barrel / Flow current ( rivers and lakes )
