TSURUGA MODEL 442C

Intergrating Printer

• ■ Automatically prints the hourly report, daily report, monthly report and operating time at the specified time.
• ■ Integrated value, operating time etc. can be manually printed at suitable time.
• ■ Monthly report of the previous year can be printed.
• ■ Currently measured value can be obtained from output of analog signals.
• ■ 2 points of integrated input and 2 points of operation input are available on standard equipment.
• ■ Suitable for the flow rate integration, co-generation power accumulating records.
•
• Model Designation

• 442C	-	□	-	□
  		①		②

  ①Power Supply

  Code	Power supply
  A	AC 100 to 240 V
  9	DC 24 V ± 10%

  ②Analog Output

  Code	Output	Load Resistance
  blank	null	-
  09	DC 1 to 5 V	More than 500 Ω
  29	DC 4 to 20 mA	0 to 500 Ω

  General Specifications

  Integrated input	Input	2CH (no isolation btw. CH) Dry contact or Open collector (NPN) Contact rate: 5 V DC, 10 mA
  	Count range	0 to 99999999　（Start from 0 when an integration value exceed 99999999）
  	Input frequency	HF: 1250 Hz Max. Pulse width more than 400 µs LF: 100 Hz Max. Pulse width more than 5 ms
  	Pulse parameter	×0.001, ×0.005, ×0.01, ×0.05, ×0.1, ×0.5, ×1, ×5, ×10, ×50, ×100
  	Computation	A+B, A-B for Integrated input A, B
  	Reset	RESET or Start printing (Hourly report, Daily report, Monthly report, and Monthly report memory).
  Work time	Input	2 points. Dry contact or Open collector (NPN) Contact rate: 5 V DC. 10 mA
  	Count range	0 to 536870911s (approx. 17 years)
  	Reset	RESET or Start printing (Hourly report, Daily report, Monthly report, and Monthly report memory).
  Indication	Integrated	0 to (99)999999 Last 6 digits, with Zero suppress. When the lower 6 digits exceed 999999, the decimal point at 106 is flashing. Cycle: 100ms Integration A, Integration B, Integration computation (A+B, A-B), Switching indication (Date - Integration).
  	Clock	Year/Month/Date or Hour/Minute/Second
  Control Signal	Input	MANUAL, ADJ, RESET Dry contact input or Open collector (NPN). Contact rating 5 V DC. 10 mA. MANUAL, RESET: Pulse width more than 10ms. ADJ: Pulse width more than 1s.
  	Output	PE Transistor ON at paper end. Open collector (NPN) 30 V DC. / 30 mA, Max. Voltage less than 1.6 V
  Print Style		Thermal line dot.
  Character		Alphabet, Numbers, Katakana, Symbols, etc.
  Dot		16 × 16（2 mm × 2 mm）
  Digit		24 digits, Max.
  Printing speed		Approx. 22.5 mm/s, 6 lines/s, Max. Note) Printing rate: Less than 16%.
  Printing width		46 mm
  Life time		At 25 °C Head: More than 109 pulse (pulse resistance) 50 km or longer except damage by foreign particle, alien substance. (abrasion resistance)
  Paper		58 mm width x 48φ (inside diameter 12φ) Length 25 m (approx. 6500 lines printable) Use specified chart paper, otherwise printing quality and products lifetime will be out of warrantee.
  Calendar Clock		Accuracy: ±3s, per day. (at 25°C) A leap year adjustment: Automatic adjustment till 2099.
  Power failure measure		Set value, Integration value, Work time, Monthly reports are memorized by Non-volatilization memory.
  Power Supply		AC 100 to 240 V 50/60 Hz 　DC 24 V ± 10%
  Power Range		AC 90 to 250 V 　DC 21.6 to 26.4 V
  Power Consumption		AC 100 V：16 VA, AC 200 V: 20 VA DC 24 V: 500 mA
  Operating temperature & humidity		0 to 50°C, less than 85% RH （no condensation）
  Storage Temperature		-20 to 60°C
  Weight		Approx. 700 g
  Installation		Panel mounting
  Withstand Voltage		Input / Output － Power: 1500 V AC. For 1min. (AC powered) 500 V AC. For 1min. (DC powered)
  Insulation Resistance		Input / Output － Power: 500 V DC. More than 50 MΩ (AC powered) 500 V DC. More than 50 MΩ (DC powered)
  Option		Analog output　DC 1 to 5 V or DC 4 to 20 mA

•

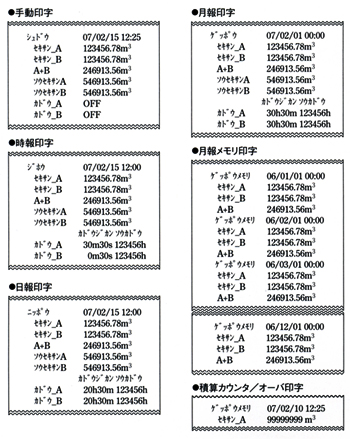

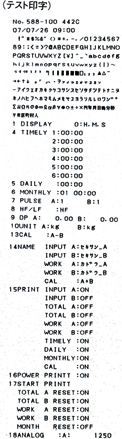

• Printing example
•
