TENAX DR

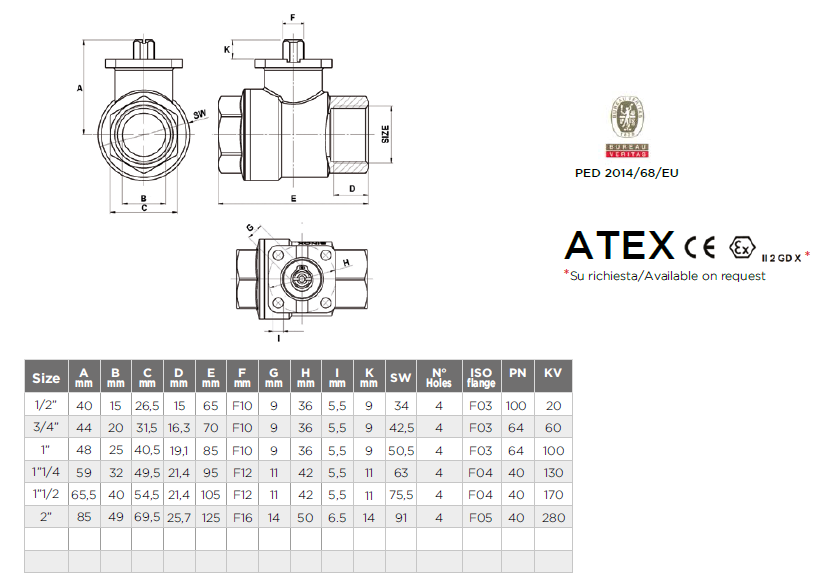

Ball valve in stainless steel with threads with ISO plate (acc. to ISO 5211) for direct mounting of actuators. Full bore design.

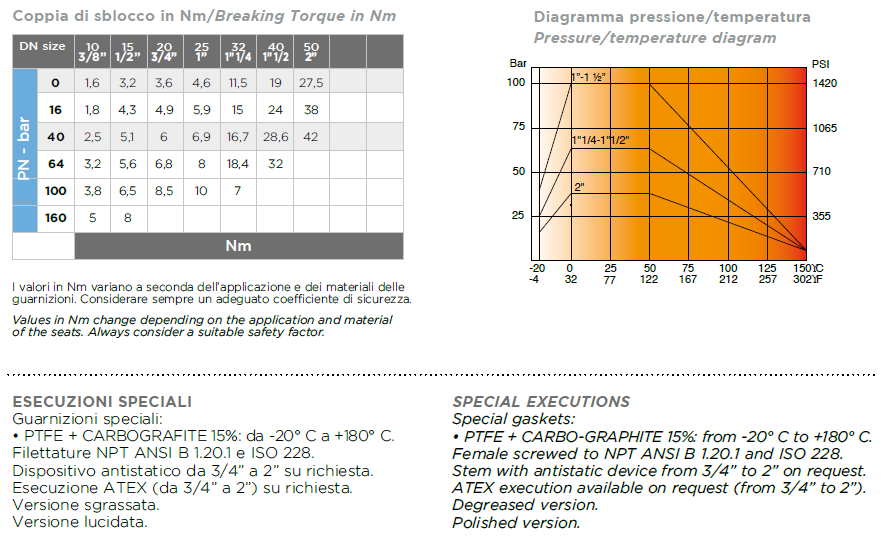

WORKING PRESSURE
From PN 100 (1/2”) to PN 40 (2”).
END CONNECTIONS
Female screwed to UNI EN 10226 (ex ISO 7/1 Rp).
Male screwed to UNI EN 10226 (ex ISO 7/1 Rp).
Special threads (BSPT, NPT, etc.) available on request.
TEMPERATURE LIMITS
From -20°C to +150°C.
SPECIAL EXECUTIONS
-
Special gaskets available
-
Stems with antistatic device from 3/4” to 2”
-
Degreased version
-
On request the valve is available with ATEX certificate (from 3/4” to 2”)
-
Polished version
