Penerangan

Description

Machine Structure and Feature
  1. New design, compact, solid, reliable, stable, low noise, and high efficiency.

  2. Auger as measuring system.

  3. PLC operation with touch screen control, easy to operate and efficient.

  4. Photoelectric sensor control system, accurate positioning.

  5. Servo motor to control film feeding system, higher accuracy, higher speed.

  6. Inverter to control motor speed, resulting a stable operation, lower noise, and lower failure rate.

  7. Digital temperature controller, easy to operate.

  8. Auto counting system, easy to monitor quantity of output.

  9. Automatic measuring, filling, sealing, and date code printing.

  10. Bag length is controlled on screen display.

  11. A few automatic alarming function, reduce wastage to minimum.
Parts Included In System
  1. EM-420 machine

  2. Screw feeder

  3. Auger filler

  4. Finished product conveyor
Optional Equipment
  1.  Check Weigher

  2.  Metal Detector

  3.  Air Compressor
Scope of Application
  1.  Powder – coffee powder, milk powder, cocoa powder, creamer, flour, etc


Model EM - 420A EM - 520A EM - 720A
Product To Be Packed Powder Powder  Powder
Capacity 10 - 20 bags / min 10 - 20 bags / min 10 - 20 bags / min
Packaging Weight 100 - 1000g 100 - 2000g 150 - 4000g
Film Width 420mm 520mm 720mm
Bag Length 60 - 300mm 80 - 350mm 100 - 450mm
Bag Width 60 - 200mm 80 - 250mm 100 - 350mm
Film Material Heat - sealable laminated film (e.g. OPP / PE , OPP / CPP , PT / PE) Heat - sealable laminated film (e.g. OPP / PE , OPP / CPP , PT / PE) Heat - sealable laminated film (e.g. OPP / PE , OPP / CPP , PT / PE)
Power Sauce 220v / 50Hz / 1.8kW 220V / 50Hz / 3kW 220V / 50Hz / 3.6kW
Air Consumption 0.8Mpa , 0.4m3 / min 0.8Mpa , 0.4m3 / min 0.8Mpa , 0.4m3 / min
Machine Weight 450kg 750kg 900kg
Machine Dimension L1260 * W1050 * H1350 L1500 * W1080 * H1500 L1700 * W1620 * H1800

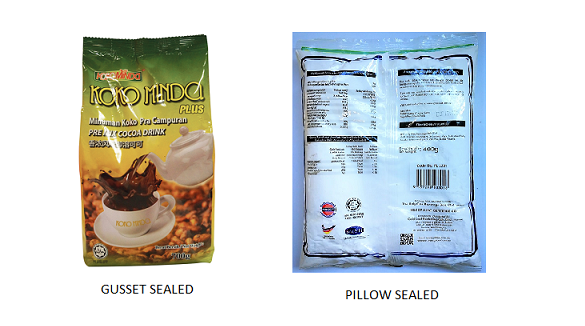

Form of Packaging
