Description
Machine Structure and Features
-

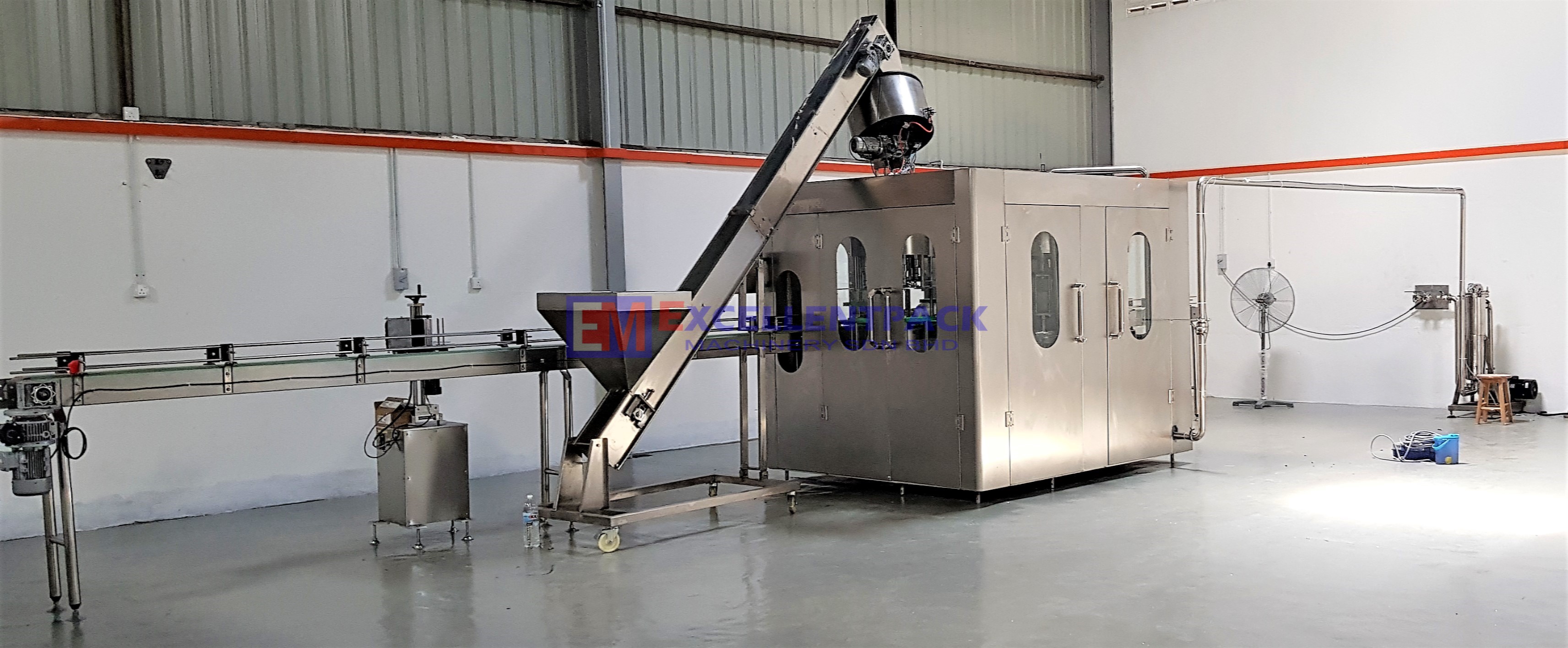

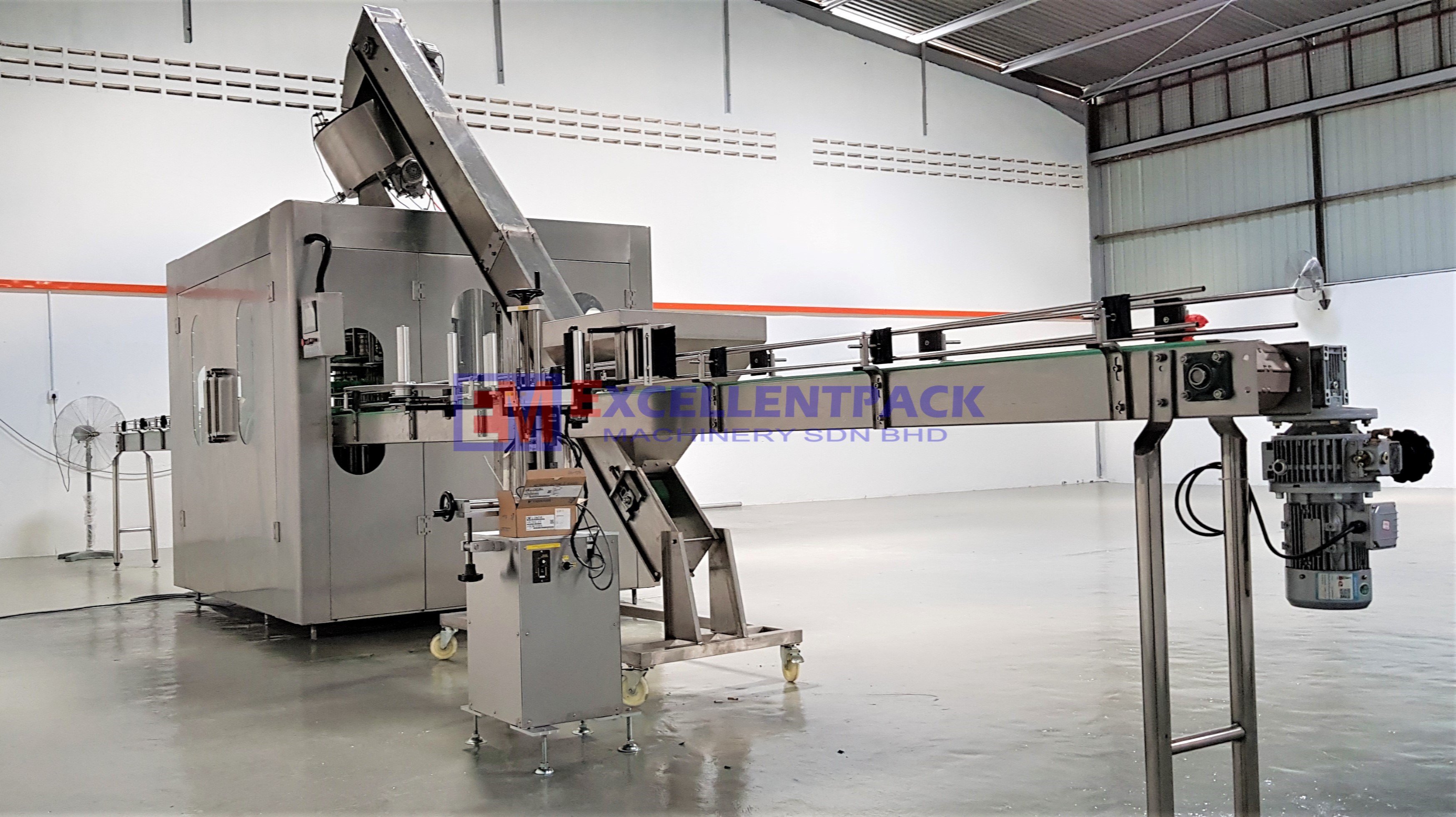

3 IN 1 monoblock machine includes rinsing module, filling module, and capping module. It is designed to pack beverage such as mineral water, juice, carbonated drinks, etc.
-
2 IN 1 monoblock machine includes filling module and capping module. It is designed for cooking oil and sauce packaging.
|
Capacity |
1000 - 5000 bottle / hr |
|
Filling Nozzle |
20 unit |
|
Capping Head |
6 |
|
Accuracy |
± 1% |
|
Material |
SS304 |
|
Air Supply |
0.4 - 0.65Mpa |
|
Electric Supply |
415V / 50Hz / 3 Phase |
|
Power |
7.5kW |
|
Machine Dimension |
(L) 3430 * (W) 2630 * (H) 2100mm |
|
Machine Material |
Stainless Steel |
|
Model |
18 - 18 - 6 |
24 - 24 - 8 |
32 - 32 - 10 |
40 - 40 - 10 |
|
Capacity (500ml) |
5000 bph |
7000 bph |
10000 bph |
15000 bph |
|
Power |
5kW |
6kW |
9kW |
9.5kW |
Machine Parts:
-

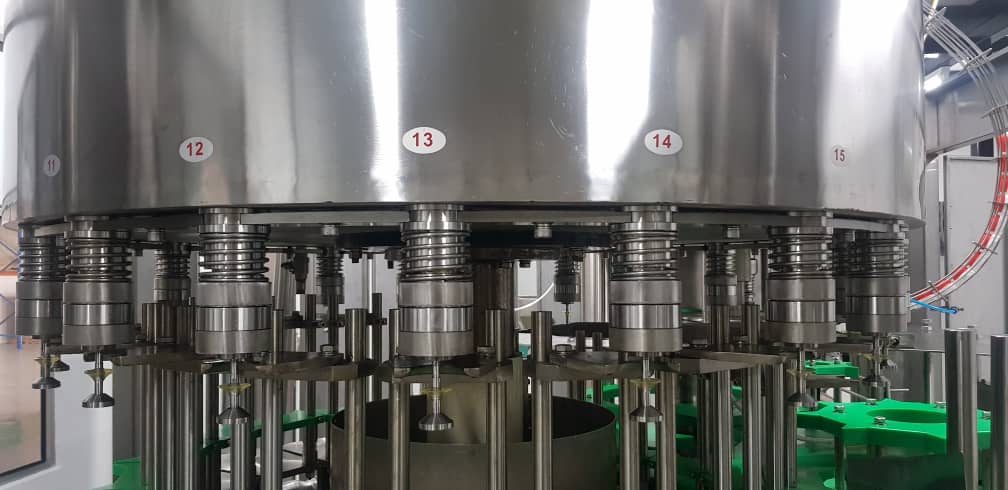

20 Nozzle Filling Head (c/w Filling Tank and Product Level Switch
-
6 Head Rotary Capping Module (c/w Auto Cap Feeding Rail)
-
1 unit Temperature Gauge
-
1 unit Motor & Gearbox ( filling module )
-
Stainless Steel Conveyor at inlet & outlet
-
1 unit main Control Panel Box with PLC System
Scope of Application
Form of Packaging
