Length : 600 - 6000 mm
Belt Width : 50 - 600 mm
Belt Type : 1 mm x 1 ply PVC belt
Side Frame : Aluminium
Speed : 2 - 12 mtr/min
Max. Load : 20 kg
Aluminium Side
Frame with E.G. Slider Bed
Single phase variable
speed motor
Light, portable
and flexible
Easy to maintain
Wide range of belt
width and length

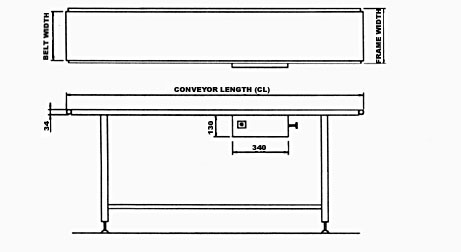

| MODEL | CONVEYOR LENGTH (MM) | BELT WIDTH (MM) | FRAME WIDTH (MM) | MOTOR (W) | POWER SUPPLY | GEAR HEAD RATIO | BELT SPEED (M/MIN) | MAX LOAD CAPACITY INCLINED ANGLE | ||
| 0 | 10 | 15 | ||||||||
| MH05 | 600 - 6000 | 50 | 92 | 40 | 220V 50HZ 1 PHASE |
18 | 2 TO 12 |
15 | 8 | 5 |
| MH07 | 600 - 6000 | 70 | 112 | |||||||
| MH10 | 600 - 6000 | 100 | 140 | |||||||
| MH15 | 600 - 6000 | 150 | 192 | |||||||
| MH20 | 600 - 6000 | 200 | 242 | |||||||
| MH25 | 600 - 6000 | 250 | 292 | |||||||
| MH30 | 600 - 6000 | 300 | 342 | |||||||
| MH40 | 600 - 6000 | 400 | 462 | |||||||
| MH50 | 600 - 6000 | 500 | 562 | |||||||
| MH60 | 600 - 6000 | 500 | 562 | |||||||
