HIGH PRESSURE SERIES PITSON COMPRESSOR (TWO STAGES): Pilihan Utama di Selangor, Malaysia, Kuala Lumpur (KL), Sungai Buloh Pensmore Sdn Bhd

Penerangan

Serial

Model

Capacity

Discharge pressure

Compression series

Motor power(KW)

Speed (r.p.m)

Dimensions(mm) (LxWxH)

Weight (KG)

Low oil level protection

Inhalation diaphragm valve (Gas-electric mixing)

Start Mode

61W

WH-1.2/30H

1.2

3.0

620

1450X750X1050

430

○

Direct startup

2-WH-2.0/30

2.0

2*11

590

1450X1700X1050

600

○

2-WH-2.4/30H

2.4

2*11

620

1450X1700X1050

600

○

WH-1.2/30

1.2

660

1450X750XX1050

430

○

2-WH-2.4/30

2.4

2*15

660

1450X1700X1050

600

○

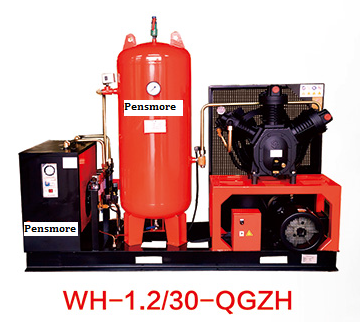

WH-1.2/30H-QG

1.2

620

1950X750X1300

570

○

WH-1.2/30-QG

1.2

620

1950X750X1300

570

○

Piston Combined Air Compressor System

Sauser machinery for sheet metal,laser industry research and develipment of aan integrated machine,1.2m/min/30kg compressed air.
5-level presision filters,centralized electronic sewage,ensure the clean cutting gas source,improve cutting quality improve work efficiency.

The Supply Pressure Of Permanent Magnet Frequency Conversion Screw Machine Is Constant

It is helpful for uniform cutting,and is is convenient for calculating working hours and cutting speed.
Avoid the influence and damage of pressure fluctuation on laser head and lens.
Integrative super silent design,easy to install
Energy saving equipment,low coast of use , can improve the competitive advantage.

Model	Capacity	Discharge pressure	Compression series	Motor power (KW)	Speed (r.p.m)	Dimensions(mm) (LxWxH)	Weight (kg)	Start mode

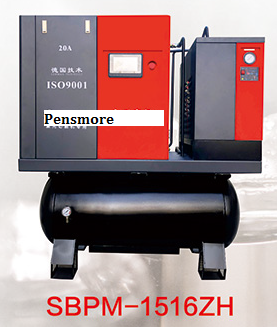

SBPM-1516	1.5	1.6	1	15	500-3000	1450x750x1050	430	Frequency conversion startup
WH-1.2/30	1.2	3.0	2	15	590	2350x840x2000	900	Direct startup

Serial	Model	Capacity	Discharge pressure	Compression series	Motor power (KW)	Speed (r.p.m)	Dimensions(mm) (LxWxH)	Weight (kg)	Low oil level protection	Inhalation diaphragm valve (Gas-electric mixing)	Start mode
63S	SH-2.0/40	2.0	3.0/4.0	3	22	620	1800x1060x1080	690	*	*	Direct Startup
	2-SH-2.0/40ST	4.0			2*22	620	2100x1060x1600	1500	*	*

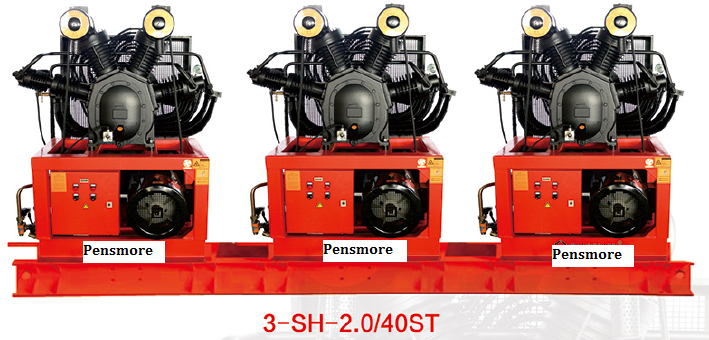

	3-SH-2.0/40ST	6.0			3*22	620	4000x1060x1600	2500	*	*

Serial	Model	Capacity	Discharge pressure	Compression series	Motor power(KW)	Speed (r.p.m)	Dimensions(mm) (LxWxH)	Weight (kg)	Low oil level protection	Inhalation diaphragm valve (Gas-electric mixing)	Start mode
52V	VH-0.6/40	0.6	4.0	2	9	730	1450x750x1050	470	*	*	Direct startup
52V	VH-0.6/40QG	0.6	4.0	2	9	730	1450x750x1050	580	*	*
62S	SH-1.3/40	1.3	4.0	3	15	660	1700x830x1030	560	*	*
	2-SH-1.3/40	2.6			2*15	660	2100x830x1600	1200	*	*
	3-SH-1.3/40ST	3.9			3*15	660	4000x830x1600	1800	*	*

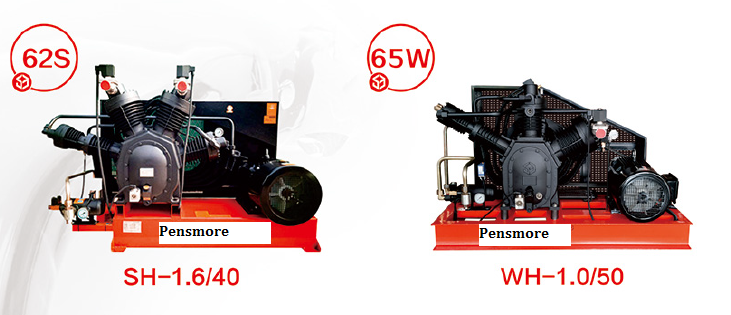

	SH-1.6/40	1.6			18.5	720	1700x830x1030	580	*	*
	2-SH-1.6/40	3.2			2*18.5	720	2100x830x1600	1240	*	*
	3-SH-1.6/40ST	4.8			3*18.5	720	4000x830x1600	1860	*	*
65W	WH-1.0/50	1.0	5.0	3	15	660	1750x850x1030	600	*	*
65W	WH-1.4/50	1.4	5.0	3	18.5	660	1750x850x1030	620	*	*

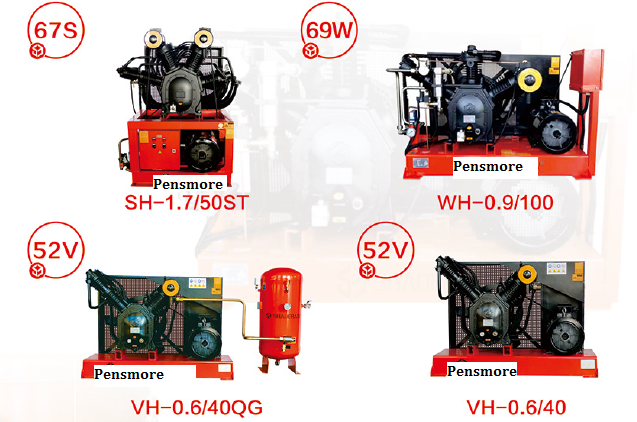

67S	SH-1.7/50ST	1.7	5.0	3	22	660	900x850x1600	560	*	*
67S	2-SH-1.7/50ST	3.4	5.0	3	2*22	660	2100x850x1600	1200	*	*

Serial	Model	Capacity	Discharge pressure	Compression series	Motor power(KW)	Speed (r.p.m)	Dimensions(mm) (LxWxH)	Weight (kg)	Low oil level protection	Inhalation diaphragm valve (Gas-electric mixing)	Start mode
69W	WH-0.6/60	0.6	6.0	3	11	660	1750x850x1030	600	*	*	Direct Startup
	WH-0.8/60	0.8	6.0		11	720	1750x850x1030	600	*	*
	WH-1.0/60	1	6.0		15	660	1750x850x1030	620	*	*
	WH-0.6/70	0.6	7.0		11	620	1750x850x1030	600	*	*
	WH-1.0/70	1	7.0		15	720	1750x850x1030	620	*	*
	WH-0.6/100	0.6	80-100		11	660	1750x850x1030	600	*	*
	WH-0.9/100	0.9	80-100		15	790	1750x850x1030	620	*	*

Specfication type	Import pressure	Gas handing capacity	Supply voltage	Fan Power	Dimensions (LxWxH)	Air Intrface	Net Weight
SLG-1H	0-10Mpa	1	220	90	700x400x790	20	77
SLG-2H		2		90	800x450x790	25	87
SLG-3H		3		120	800x500x860	40	104
SLG-4H		4		120	800x500x860	40	107
SLG-5H		5		120	800x500x860	40	107
SLG-6H		6		210	650x500x1180	40	130
SLG-8H		8		240	800x550x1180	40	158
SLG-10H		10		360	950x600x1280	40	185
SLG-13H		13		430	1060x600x1320	50	223
SLG-15H		15	380	480	1250x600x1300	50	265
SLG-20H		20		480	1350x600x1360	65	330
SLG-25H		25		600	1600x700x1600	65	390

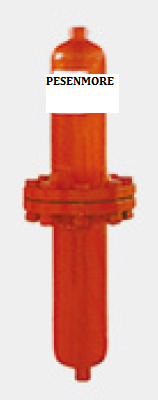

Specfication type	Working Pressure	Gas handing capacity	Dimensions (DxH)	Air Intrface	Net Weight
SGX-10	3.0-10.0	1	350x930	DN15	77
SGX-20	3.0-10.0	2	350x930	DN15	87
SGX-30	3.0-10.0	3	350x1030	DN25	104
SGX-40	3.0-10.0	4	365x1030	DN25	107
SGX-50	3.0-10.0	5	365x1030	DN25	107
SGX-60	3.0-10.0	6	410x1150	DN25	130
SGX-80	3.0-10.0	8	410x1150	DN40	158
SGX-100	3.0-10.0	10	410x1150	DN40	185
SGX-130	3.0-10.0	13	500x1300	DN40	223
SGX-150	3.0-10.0	15	500x1300	DN65	265
SGX-200	3.0-10.0	20	600x1600	DN65	330
SGX-250	3.0-10.0	25	600x1600	DN65	390

Specfication type	Working Pressure	Gas handing capacity	Import and Export path	Dimensions (DxH)
SJG-1	3.0-10.0	1	20	150x580
SJG-2	3.0-10.0	2	20	190x650
SJG-3	3.0-10.0	3	20	200x680
SJG-6	3.0-10.0	6	25	220x820
SJG-8	3.0-10.0	8	40	220x930
SJG-10	3.0-10.0	10	40	400x1250
SJG-15	3.0-10.0	15	65	450x880
SJG-20	3.0-10.0	20	65	450x1250
SJG-25	3.0-10.0	25	80	500x1250
SJG-30	3.0-10.0	30	80	550x1250
