DENSO - Belt Tension Gauge (BTG-2)

DENSO - Belt Tension Gauge (BTG-2)

Brand: DENSO
Model: BTG-2

Product Description:

Host: BTG-2 95506-00091
Extension rod: 95506-10040(optional)
Correction plate: (95506-10050ML)
Measuring range: 100-1000N (10-100kg)
Accuracy: + 3kg

Product Features:

• Belt Tension can be correct, and simple determination
• Using an extension rod (optional), can also be tested in a small place.
• The use of the method of measuring the needle, the most suitable for the determination of the area covered by the belt.

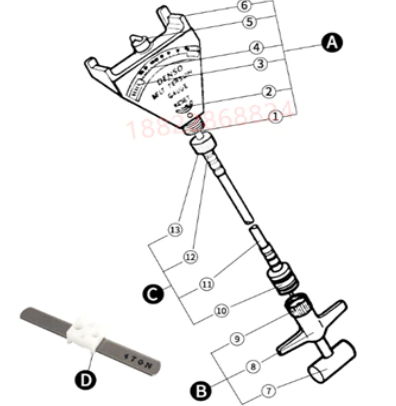

1. Connecting part
2. Return button
3. Pointer
4. Dial
5. Hook
6. Shelf
7. Handle
8. Steering wheel
9. Interface Nut
10. Interface
11. Outer Shaft
12. Interface Nut
13. Inner Shaft

Operation Method:

• ​Return to the ''0'' operation method
• The numerical representation is the belt tension with the pointer, so the determination will return a pointer to ''0'' position
• This operation is the return of the ''0'' button. Central projection small button to the direction of the arrow, dial pointer to dial ''0'' location (red part range)

1. ​Hold the tensiometer steering handle and disc is the dynamometer test essentials, as Figure shows, the hook on the belt to be measured.
2. Slowly after burner. (At this point, the inner spring makes the belt band, and the pointer indicates the value of the belt's tension)
3. In order to make the pointer stable and accurate, repeat the operation of the abobe 2 items
4. Once again, hold tensiometer count is disengaged from the belt.
5. The value of the pointer is the value of the tension of the belt (unitN)
