Precision Testing for Reliability, Durability, and IEC Compliance
Redmark Industry offers advanced Temperature and Humidity Cycling Test Chambers by LIB, specifically engineered for the rigorous testing of photovoltaic (PV) modules. These chambers ensure compliance with IEC 61215, IEC 61646, and other international standards, simulating a wide range of environmental conditions to evaluate thermal fatigue, moisture ingress, and long-term durability.
Our chambers are ideal for R&D labs, manufacturing quality control, and certification testing, providing reliable performance data under accelerated life-cycle conditions.
Thermal Cycling Test
Simulates repeated temperature fluctuations between +85°C and -40°C to evaluate the mechanical and thermal stress on PV modules.
Maximum temperature change rate: 100°C/hour
Humidity Freeze Cycle
Performs alternating cycles of high humidity at 85°C / 85% RH and freezing at -40°C to replicate real-world environmental challenges, testing for delamination and moisture effects.
Damp Heat Test
Conducts long-term exposure at 85°C and 85% RH for up to 1000 hours to assess the module’s resistance to moisture ingress and insulation degradation.
| Temperature Range | -60℃ ～ +100 ℃ |
| Temperature Fluctuation | ± 0.5 ℃ |
| Temperature Deviation | ± 2.0 ℃ |
| Temperature Change Rate | 1 ~ 3.4℃ / Min |
| Humidity Range | 20% ~ 98% RH |
| Humidity Deviation | ± 2.5% RH |
| Panel Size | 1M*2M |
| Panel Capacity | 4 / 6 / 8 / 10 / 12 Pieces |
| Cooling system | Mechanical compression refrigeration system |
| Refrigerating unit | French TECUMSEH compressor |
| Controller | Programmable color LCD touch screen controller, Ethernet connection |
| Water supply system | Automatic water supply |
| Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; |
| Refrigerant High-pressure Protection; Water Shortage Protection; Earth leakage Protection | |
| Exterior Material | Steel Plate with protective coating |
| Interior Material | SUS304 stainless steel |
| Thermal Insulation | Polyurethane foam and insulation cotton |
| Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
| Standard | IEC61215, IEC61646, IEC61108, IEC62688, UL1703, IEC61345 |
High Capacity for Parallel Testing
The chamber supports simultaneous testing of multiple PV panels, making it ideal for high-throughput testing environments. Suitable for both standard-size and large modules, this feature significantly improves productivity and test efficiency.
Equipped with Ethernet connectivity and remote control functionality, users can manage, monitor, and analyze test conditions and results in real-time from any location, reducing downtime and improving oversight.
Available in a range of standard configurations and custom-built solutions to accommodate various testing requirements, panel sizes, and operational environments. Our team works closely with clients to recommend the best solution tailored to their specific needs.
PV module manufacturing and development
Certification and compliance testing laboratories
R&D institutions and universities
Renewable energy research centers
Quality assurance departments
High-precision, standards-compliant testing
Supports testing of up to 12 panels per cycle
Smart control systems with Ethernet connectivity
Durable, corrosion-resistant build for long-term use
Full after-sales support, including calibration and maintenance services
Contact us today for expert consultation, pricing, or to request a technical datasheet tailored to your application.

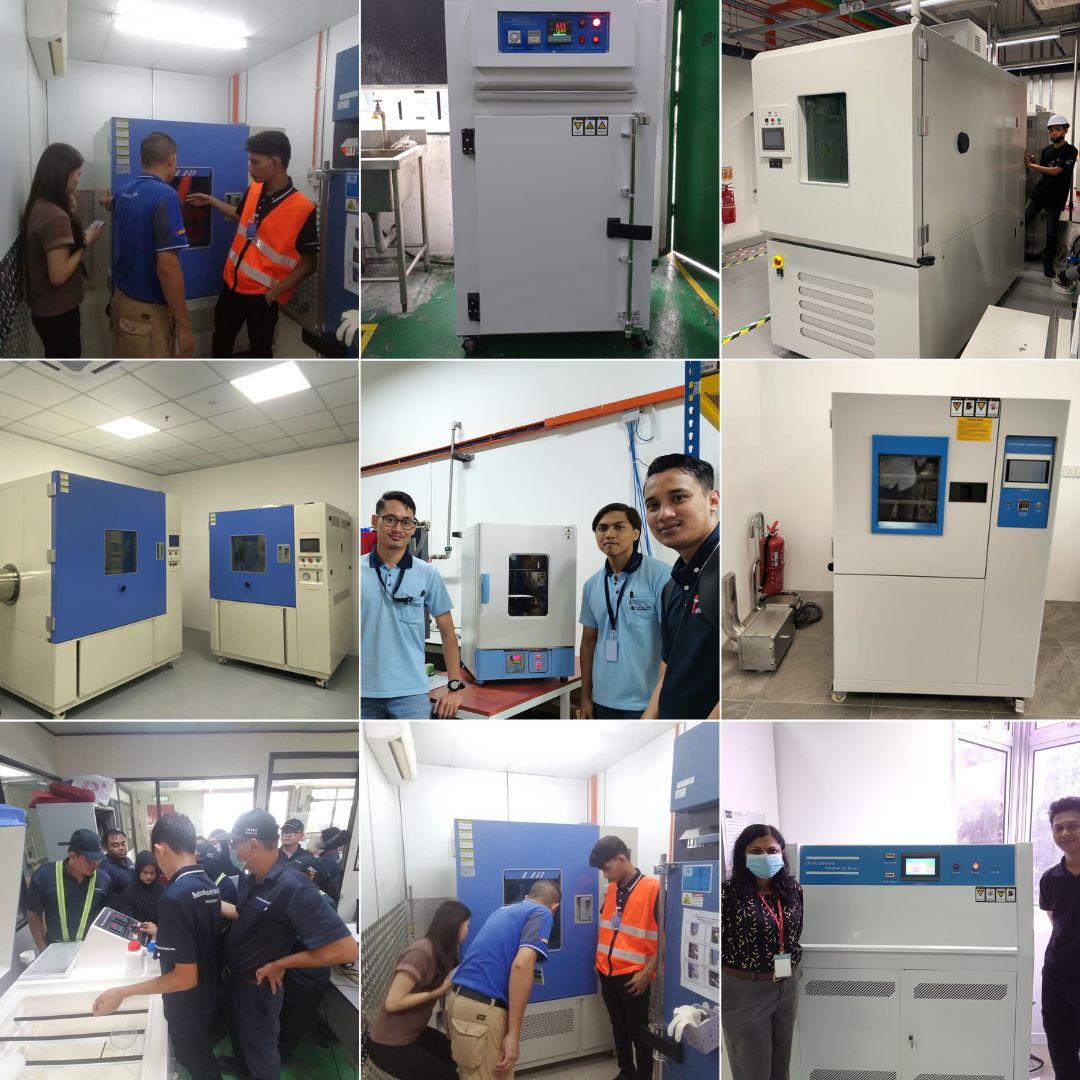

Customer Testimonials
