LAUNCH (SMARTSAFE) IRT01 INSULATION RESISTANCE TESTER

Model : IRT01 (Old Model Name : iSmartEV RT100)

IRT01 insulation tester is equipped with powerful measurement and data processing software; thus, it can complete measurement of the insulation resistance, voltage, and other parameters. Its stable performance and easy operation are suitable for field measurement and maintenance users of power equipment and power supply lines.

What Can Be Solved
in Your Shop?

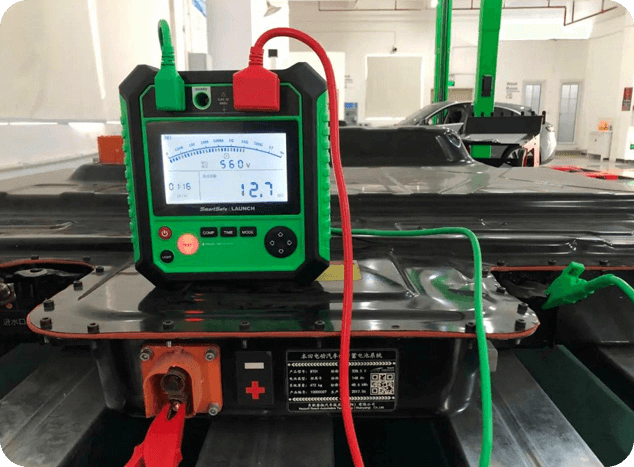

IRT01 is an insulation resistance tester for electric vehicle insulation resistance measurement. It supports three modes of comparative measurement, continuous measurement and timed measurement, and can measure AC and DC voltage.

Functions	Description	√
Insulation Resistance Test	Support the selection of 500V/1000V/2500V/5000V output voltage range, support comparison measurement, continuous measurement, timing measurement three modes	√
Voltage Measurement	Support DC and AC voltage measurement	√
Other Functions	Support LCD backlight, automatic shutdown after 15 minutes without operation, over-range alarm, high-voltage warning indication	√

Specification

Output voltag	500 V/1000 V/2500 V/5000 V	DC measurement	±30 V~±600 V DC, resolution: 1 V, accuracy:±2%
Insulation Resistance	500V:10MΩ~20GΩ	AC measurement	±30 V~±600 V AC,resolution: 1 V, accuracy:±2%
	1000V:10MΩ~40GΩ	Display Mode	5-inch display
	2500V:10MΩ~100GΩ	Battery	3150mAh/11.4V
	5000V:10MΩ~1000GΩ	Temperature	0~50℃
Short-circuit Current	＜3.0mA	Dimension	190×207×72mm
